Stage Series SAE/DOT LED Lightbar Kit for 2014-2024 Toyota 4Runner

Description

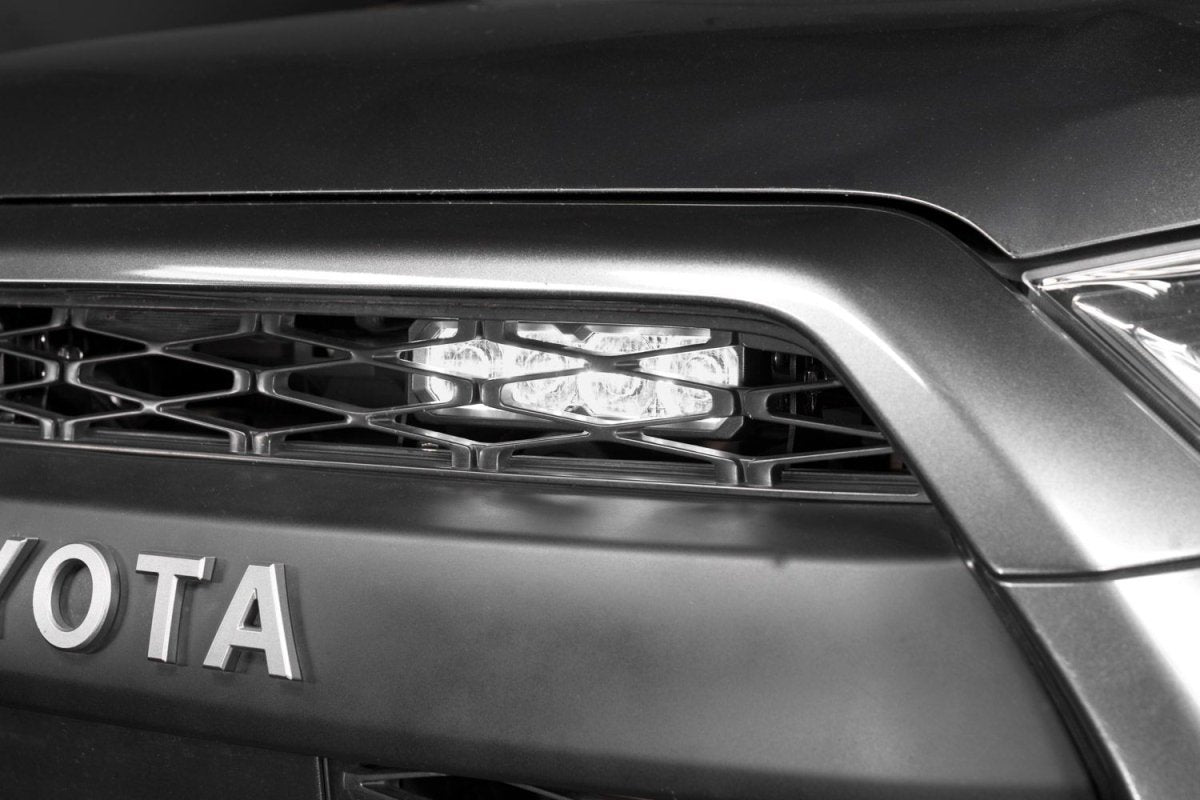

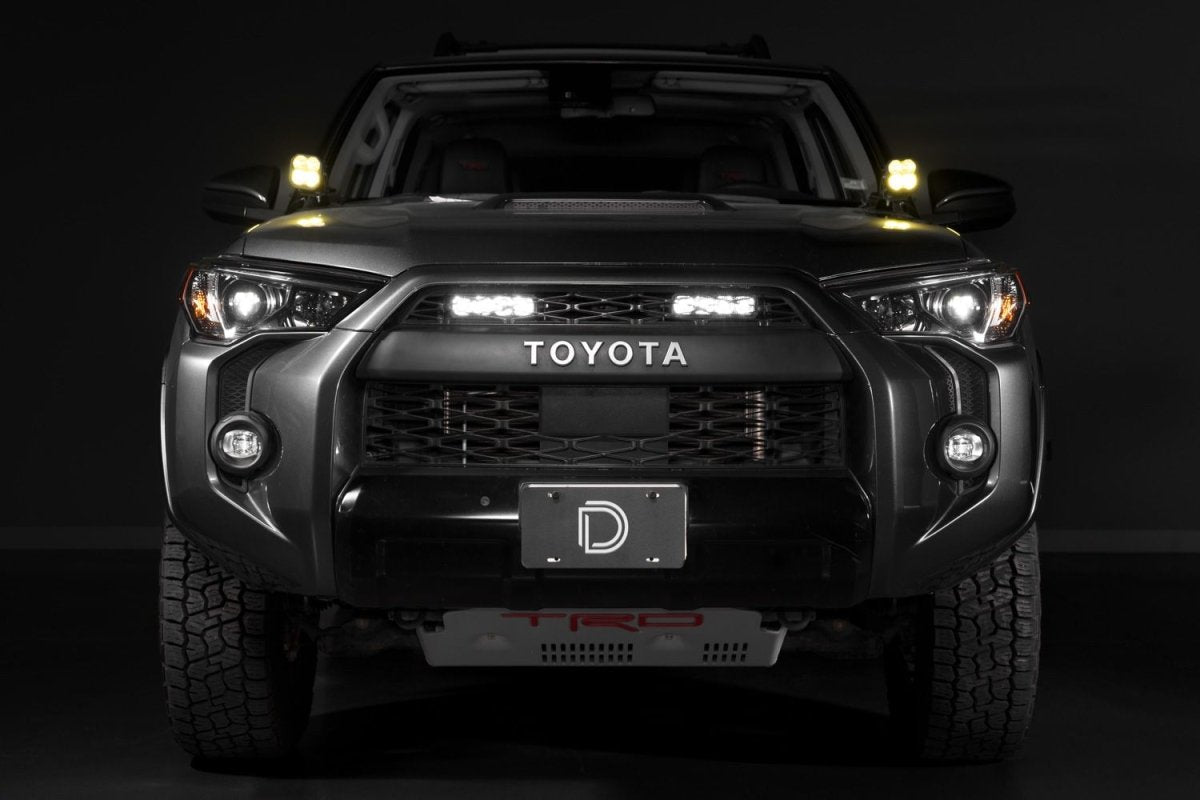

Unlock serious performance and clean OEM-plus styling with the Diode Dynamics Stage Series SAE/DOT LED Lightbar Kit, engineered specifically for the 2014–2024 Toyota 4Runner. Designed to mount two high-performance SS6 LED Light Bars behind the upper grille, this kit delivers massively increased output, modern optical control, and legal on-road performance without compromising factory fitment.

Using CAD-designed brackets and factory mounting points, installation requires no cutting, drilling, or permanent modification. Each SS6 bar uses patented TIR optics, directing nearly all emitted light forward with minimal glare and maximum intensity. Choose between SAE Driving for long-range distance and punch, or SAE Fog for an ultra-wide 90°x10° pattern ideal for adverse weather. Available in white (6000K) or yellow (3000K/2000K).

Pick the power level that fits your needs:
• Sport – the best performance-to-value option
• Pro – a major boost in brightness
• Max – top-tier Osram HX Boost emitters for extreme intensity

Every Stage Series light is built for real-world use, passing thermal, environmental, vibration, moisture, and corrosion testing to SAE standards. Combined with a true amber backlight, a lifetime warranty, and USA manufacturing, this kit is one of the highest-quality lighting upgrades available for the Toyota 4Runner.

Compatible with 2014–2019 all trims and 2020–2024 TRD Pro only.

Specifications

Vehicle Fitment: 2014–2024 Toyota 4Runner (All 2014–2019 trims; 2020–2024 TRD Pro only)

Brand: Diode Dynamics

Part Number: Varies by configuration

Type: Stage Series SAE/DOT LED Lightbar Kit

Optic/Power – White SAE/DOT Driving:

Sport – 60,400 cd / 604 lux / 1,844 lm / 6000K

Pro – 74,000 cd / 740 lux / 6,272 lm / 6000K

Max – 84,500 cd / 845 lux / 7,920 lm / 6000K

Classic – 55,000 cd / 550 lux / 2,280 lm / 6000K

Optic/Power – White SAE Fog:

Sport – 15,000 cd / 150 lux / 1,844 lm / 6000K

Pro – 16,000 cd / 160 lux / 6,272 lm / 6000K

Max – 20,300 cd / 203 lux / 7,920 lm / 6000K

Classic – 13,000 cd / 130 lux / 2,280 lm / 6000K

Optic/Power – Yellow SAE/DOT Driving:

Sport – 46,600 cd / 466 lux / 1,844 lm / 3000K

Pro – 53,500 cd / 535 lux / 6,272 lm / 3000K

Max – 71,000 cd / 710 lux / 7,920 lm / 3000K

Optic/Power – Yellow SAE Fog:

Sport – Coming Soon / Coming Soon / 1,844 lm / 3000K

Pro – Coming Soon / Coming Soon / 6,272 lm / 3000K

Max – Coming Soon / Coming Soon / 7,920 lm / 3000K

Classic – 7,400 cd / 74 lux / 1,140 lm / 2000K

Lift Range: N/A

Front Components: (2) SS6 LED Light Bars

Rear Components: N/A

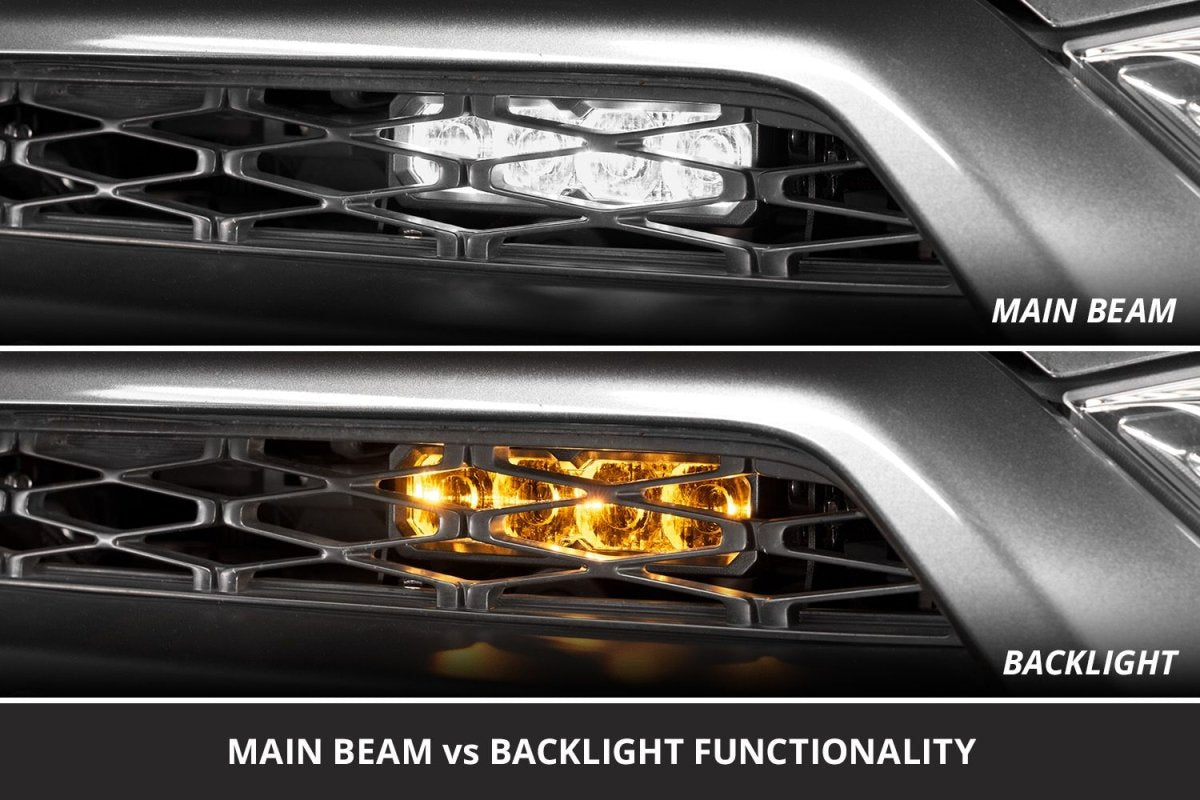

Design: CAD-designed brackets; amber backlight

Construction: Aluminum heatsink, copper/aluminum PCB, polycarbonate lens

Testing: SAE standards for vibration, thermal, moisture, and corrosion

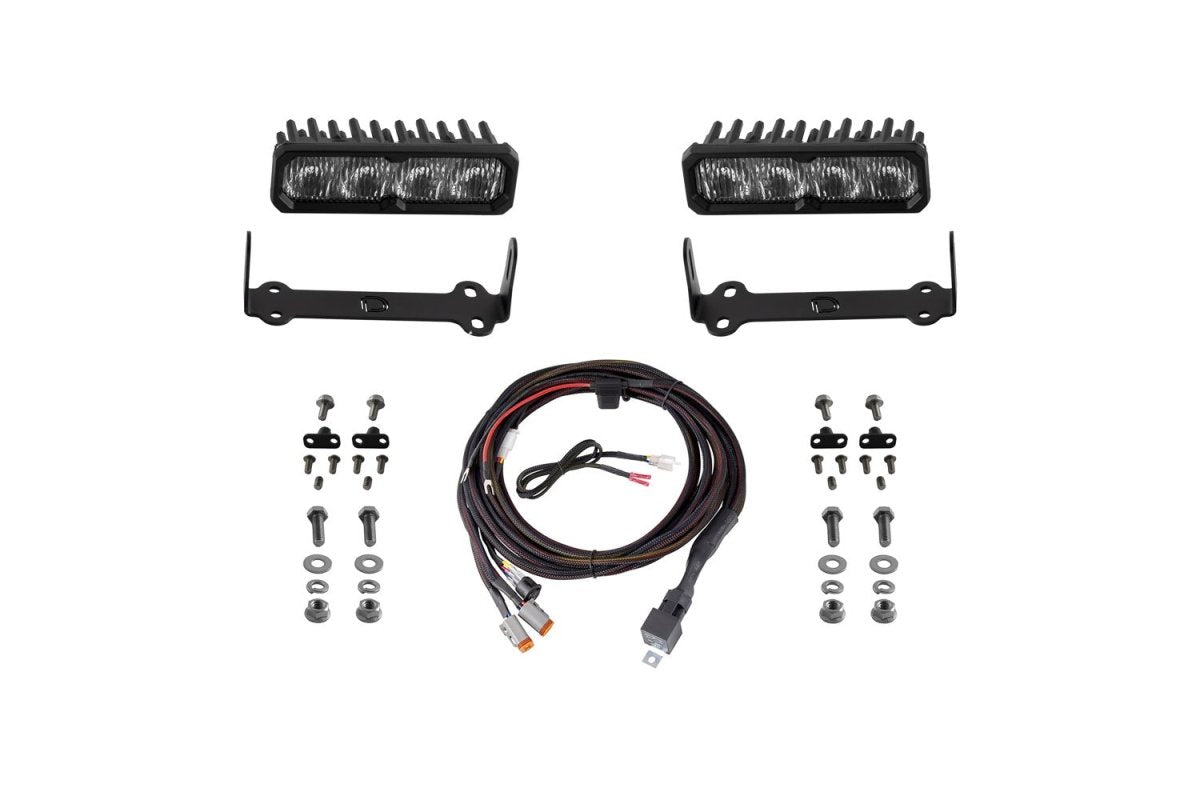

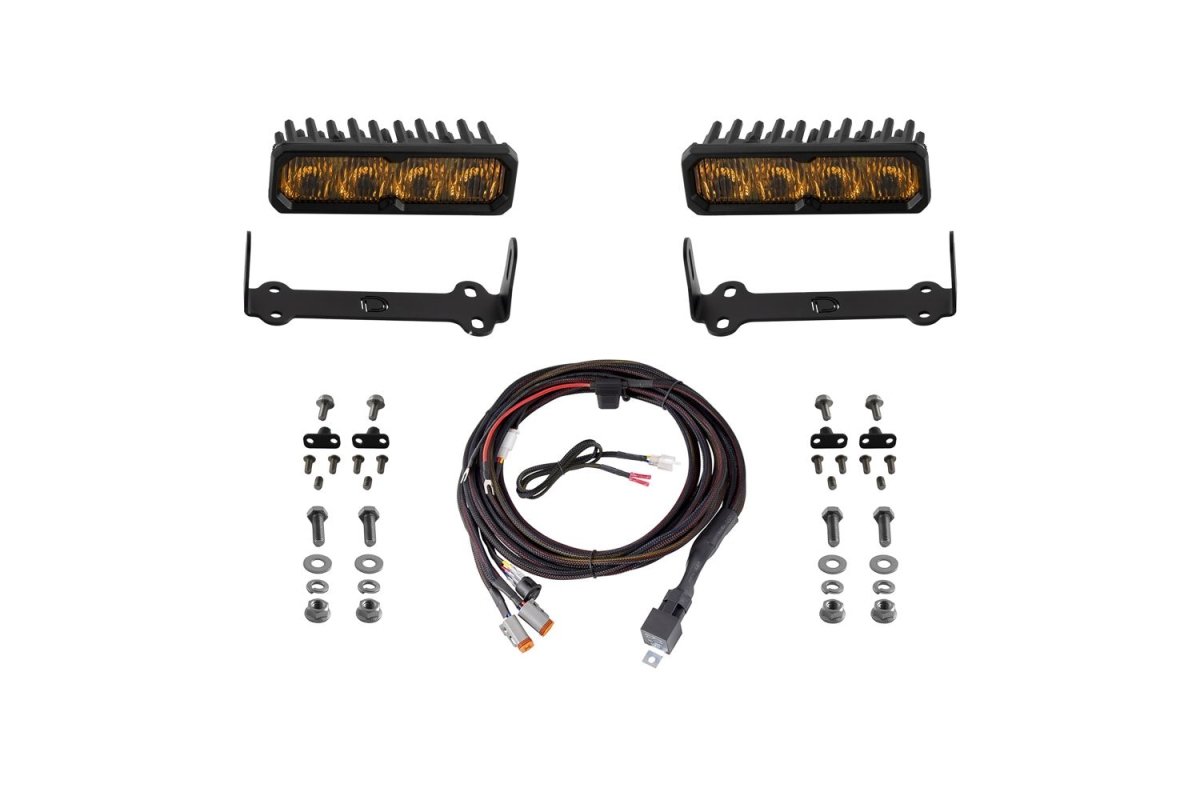

Includes: Brackets, wiring harness, aux switch adapter, hardware, instructions

Warranty: Limited Lifetime Warranty

Origin: Made in USA with Global Materials
