LED Strip Lights High Density SF Switchback Quad 3 Inch Kit Diode Dynamics

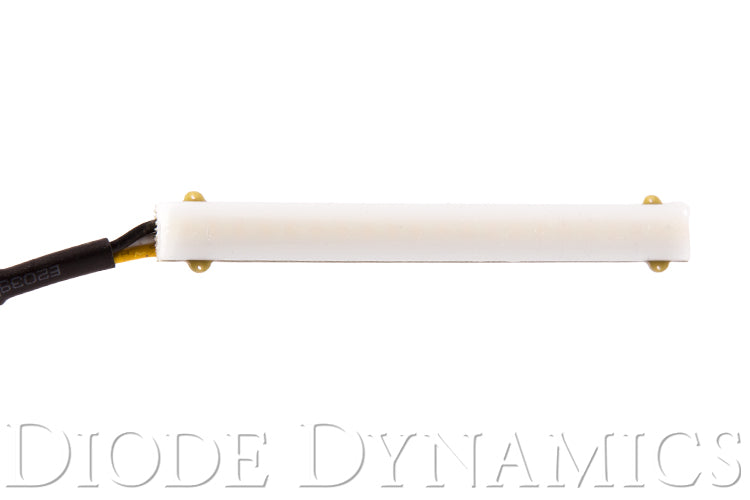

HD Halo Technology. These HD LED semi-flex strips have been designed from the ground-up to be absolutely the brightest, most reliable strips physically possible. Each strip is populated with a large number of high-density (HD) LEDs, which are then coated by a diffusing gel, resulting in a perfectly uniform light when turned on. When off, the diffusing gel hides the chips, resulting in a clean, OEM appearance.
Sizing: All sizes are listed by total length, in millimeters. Strips can be shortened by up to 20 percent, but no less! Width is 8mm, and total height is 4.5mm.
Mounting: The strips must be custom-mounted in position using adhesive or beading wire using the integrated mounting tabs. If you wish, mounting tabs may be removed with a pair of clippers or basic sanding. The strips can be modified if needed to fit certain applications. Up to 20 percent of the strip can be removed using side-cutting snips and still remain fully functional.
Wiring: All wires have a durable braided wire covering. The LED has a 20-inch wire with female JST type connector. This connector may be de-pinned in order to run wires through small holes during installation. Both the input and output wire on the driver are also 20 inches each. A pigtail is included that is also 20 inches, with male spade connectors on the end to connect to factory wiring with included T-taps. You will have plenty of room to run wires anywhere you'd like.
PWM Control: Aside from the high brightness and perfectly uniform output, one great feature of these strips is the integrated multifunction PWM dimming control. The drivers have four wires, to be connected to any 12V signals as follows:
- White: White Low Power, 50 percent brightness
- Red: White High Power, 100 percent brightness
- Yellow: Amber Signal, double brightness, flashing (dims if powered more than two seconds)
- Black: Ground
All input wires activate the strips, at different brightness levels. All switchback strips ship with inchlow inch priority drivers. This means that if both inchlow inch and inchhigh inch power inputs are powered, the LED will light up in white, with low power level. This is convenient for connecting the red wire to a parking light or DRL signal, for use during the day as a high-power DRL. Then, if the white wire is connected to the headlamp power, they will dim down at night. If the yellow wire is powered at any time, the strip will light up in amber color, intended for signaling. If you'd like to use amber all the time, no problem! It will dim automatically if powered for more than two seconds, to keep it safe.
This entire setup allows you to connect the strip directly as a multifunction lamp, without any external controllers needed. Of course, this is completely optional. You can just use one or two of the input wires if you'd like.
Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we manufacture and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations.
- Quad 3 Inch kit
- Operating Voltage: 9-16V
- Operating Temperature: -40C to 85C (-40F to 185F)
- Connector(s): JST Inline
- Connectors, T-Tap Inputs
- Driver Dimensions: 2.5 inch x 1.38 inch x 0.88 inch
In the Box:
- Three (3) LED semi-flex strips
- One (1) waterproof driver
- One (1) input wire pigtail
- Four (4) T-tap connectors
- Installation guide
Warranty: 3 year warranty
100 percent Satisfaction Guarantee
These strips are intended for installation inside a sealed lamp housing.
