Fog Light LEDs for 2008-2011 Subaru WRX (pair)

$ 40.00

FUNCTION

Fog Light LED bulbs are an excellent way to improve the appearance of your vehicle. From the factory, most vehicles come with halogen bulbs, which project in a yellowish light. By replacing them with LEDs, you can create a modern appearance with the cool white light of LEDs.

The installation is 100% plug-and-play, just replace your factory bulb!

Please note: Fog Light LEDs are primarily for cosmetic upgrade. Some models may not provide an increase in output.



BULB DESIGN

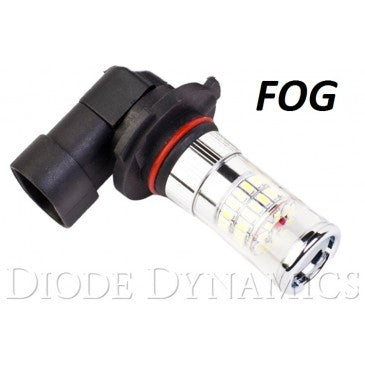

HP48: This bulb is designed with 48 Epistar 3014 LED chips. Thanks to the cap on the top, the light from this High Power Bulb is shined backwards and away from the bulb, not straight out. This means the output is excellent, because it uses the vehicle's housing completely, which then shines the light much more uniformly.

XP80: Each of the four sides of this bulb contains three 5W-rated chips, and the top is fitted with four more, under a projector lens. This is the brightest self-contained automotive LED bulb on the market, and is housed in an aluminum casing with a textured finish for maximum heatsinking properties.

XML2: Two opposing genuine CREE XM-L2 chips, driven at high power by self-contained regulator unit, in an attractive cast-aluminum housing. Fully waterproof, non-polar, modular design.

Fitment. SMD, HP, and XP bulbs use an inject-molded terminal, with a full-size base connector, designed for exact replacement of your factory bulb. The XML2 bulb fits in the same way, but also requires an additional 2" of clearance behind the bulb socket- see pictures.

Included in your order is TWO BULBS.



COLOR

These LEDs illuminate in a crisp, bright, cool white hue. The XML2 is also available in natural white, pure white, and yellow.



BRIGHTNESS

Diode Dynamics offers several brightness options so you can choose what fits you best. These options are listed by the design and the lumen output of each bulb, compared to the factory bulb.

HP48: 265 lumens. Slightly lower brightness than factory.
XP80: 510 lumens. Similar brightness to factory.
XML2: 1410 lumens. Much brighter than factory. These are bright!

Lumens: BUYER BEWARE! Most sellers just provide "calculated" lumen numbers, based on the maximum potential brightness of the LED chips on the bulb. For example, if a bulb has five 10-lumen chips, they will rate it at 50 lumens. However, this is not accurate, as the design of an LED bulb does not get rid of heat fast enough to run the LEDs at maximum.

These "calculated" lumen ratings are much, much higher than the true, measured light output, so it will look like competitors' bulbs are brighter than ours. This is because Diode Dynamics does not provide inflated "calculated" numbers; we believe it is misleading. We test the actual brightness of the bulbs in our lab, to provide real lumen output measurements. Our measurements are accurate, but they are usually much lower than the misleading "calculated" figures. Please click here to learn more about LED brightness measurement.
