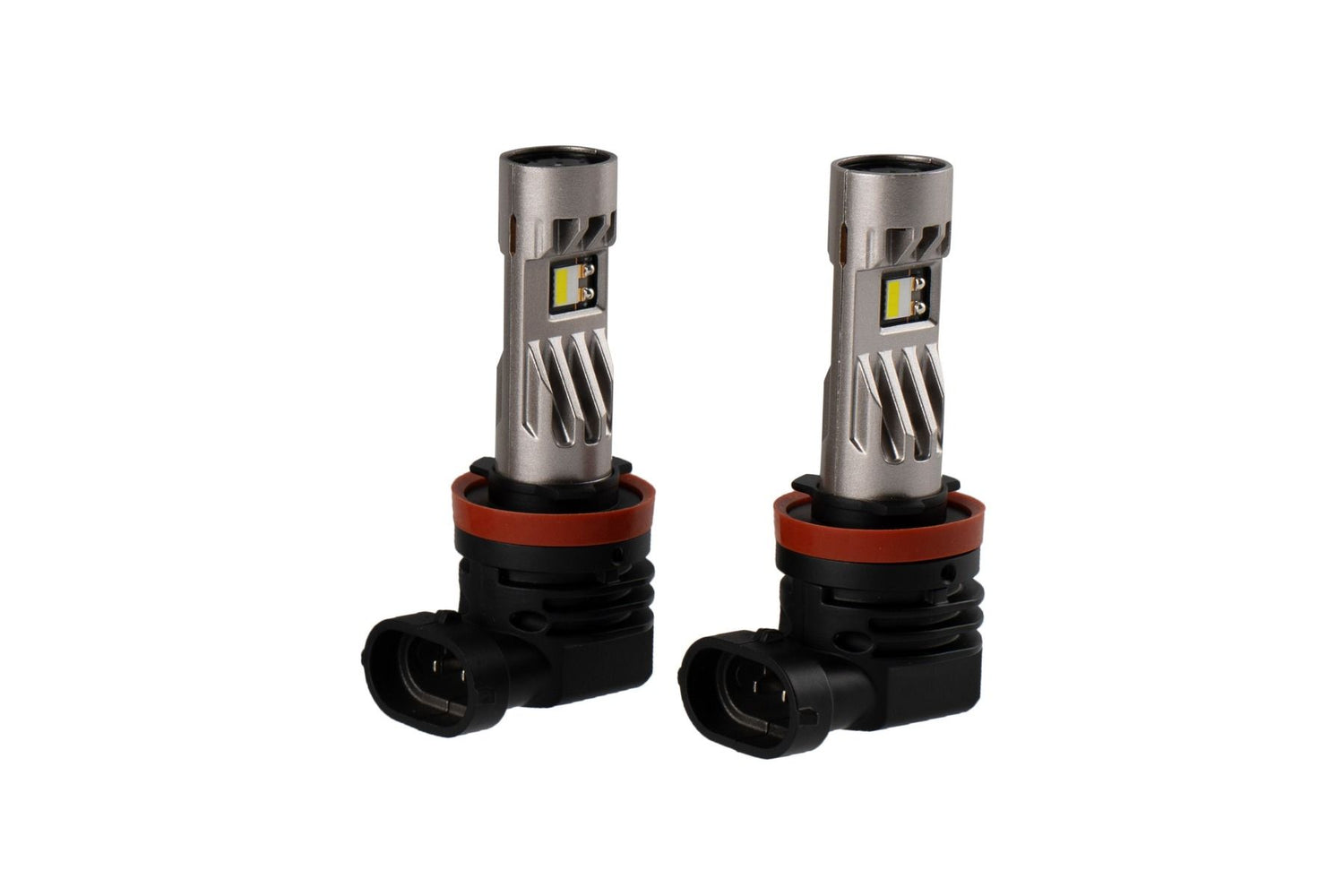

Focus ST Low Beam SL2

$ 199.95

Features

  • Advanced TST LED Technology for industry-leading performance.
  • Internal cooling for superior reliability.
  • Fully integrated design, no wires or external drivers.
  • Direct replacement bulb with compact fitment.
  • Backed by limited lifetime warranty.
  • Designed and engineered in USA (Patents Pending).

APPLICATION NOTICE: LED bulbs are legal in the USA for Fog Light use only. Not compliant with DOT / FMVSS108 and not street legal in the USA for Headlights. Legal for off-road use in ATV, snowmobile, and off-road racing use. International legality varies by country.
Note: This usage regulation is not unique to Diode Dynamics bulbs. All LED bulbs from all brands, regardless of marketing claims, are prohibited from street use in halogen headlights in the USA. Click here to learn more.

SL2 Pro LED Bulb Overview

Diode Dynamics set the standard for LED bulbs in 2017, with the introduction of the SL1 LED. The SL1 was the first bulb engineered to provide a true increase in performance. After many years, and thanks to improvements in technology, we are excited to introduce its successor: the SL2 Pro! The new SL2 Pro LED has been carefully refined and improved with some major upgrades: next-generation TST LED technology, an integrated top-mount fan, and a fully-integrated, wire-free design. As a direct plug-and-play replacement, it provides a significant increase in output, in a compact package.

Next-Generation TST Technology. The SL2 Pro features new thermal separation technology (TST) LEDs. Unlike a traditional LED chip, TST LEDs are designed with electrical connections on the top. This means the entire bottom surface of the LED can be dedicated to channeling thermal energy out and away from the LED. This lowers thermal resistance, allowing the SL2 Pro to run at higher power levels than traditional LED bulbs, while maintaining focus.

Optimized Optical Focus. Your vehicle's housings are designed to focus light. If the light source in the housing is out of focus, it doesn't matter how bright the bulb is - you won't have a focused hotspot of light to shine down the road where you need it. Instead, you'll have more glare, which lights up the foreground and makes it harder to see in the distance. The SL2 Pro LED bulb was engineered to focus light just like your original bulb, matching the original beam pattern while still providing an increase in total output. These days, some LED bulbs on the market use the smallest LEDs possible to accomplish focus, but this leads to "over-focus", where you begin seeing streaks, lines, and harsh cutoffs in the beam pattern. Instead of using the smallest LEDs possible, the SL2 Pro was optimized to provide a smooth and comfortable beam pattern, while still maintaining focus and increased output.

Internal Cooling. The SL2 Pro features an integrated top-mounted fan for superior thermal management and reliability. Since the fan is sealed inside the housing, there's no concerns about damage from dust or moisture over time. And with the fan on the top of the bulb, the cooling happens right next to the LEDs - the source of the heat. While standard LED bulbs use heat pipes and other tricks to move heat to the bottom of the bulb, where it's cooled off, the SL2 Pro keeps it simple and more efficient. This provides maximum cooling efficiency and output.

Fully Integrated Design. Unlike traditional LED bulbs, the SL2 Pro LED bulb doesn't have any extra wires or external drivers. Along with its compact size, that means excellent fitment inside your housing, without the need to tuck away wiring or bulky drivers. Installation is easy - simply remove your factory bulbs and the SL2 Pro will fit in its place, with a plug-and-play connector. And if your original bulb is installed at an angle, no worries - SL2 Pro has you covered with an adjustable collar that can be securely locked at the correct position. For specific fitment information, please see Vehicle-Specific product listings, or contact us.

Reliability. Every part of the SL2 Pro LED was engineered for reliability, from its full metal construction to the fully-sealed design. The SL2 Pro was put through its paces in our environmental testing chambers - where the bulb lasted through repeated thermal cycles from -40 through 85 degrees Celsius (-40 to 185F), along with a range of other environmental tests. It's also designed with transient protection, to prevent premature failure from electrical spikes in the vehicle. It's even compatible up to 30V! We're so confident in the SL2 Pro, that it's backed by an industry-leading limited LIFETIME warranty. See details at diodedynamics.com/warranty.

Features

  • Fog light bulb replacement
  • Correct optical focus for increased output with no added glare
  • Perfect H11 fitment, no modification needed
  • Designed and validated to OEM lighting standards
  • Engineered and Assembled in USA

APPLICATION NOTICE: LED bulbs are legal in the USA for Fog Light use only. Not compliant with DOT / FMVSS108 and not street legal in the USA for Headlights. Legal for off-road use in ATV, snowmobile, and off-road racing use. International legality varies by country.
Note: This usage regulation is not unique to Diode Dynamics bulbs. All LED bulbs from all brands, regardless of marketing claims, are prohibited from street use in halogen headlights in the USA. Click here to learn more.

SL1 LED Bulbs

Aftermarket or OEM? If you're looking to improve visibility on your vehicle at night, you've probably found many options for LED upgrades. Most bulbs on the market are too big to install, don't work with the electrical system, and have no focus or hotspot in the beam pattern. Even if they come close on those aspects, they still aren't anything close to the quality you would find with factory-installed lighting. Like most aftermarket products, most LED bulbs are not engineered and tested for long-term reliability.

With the SL1 LED, Diode Dynamics set out to engineer a true OEM-grade solution. With its compact size, optically correct output, flow-simulated cooling, and boost-mode electrical circuit, our SL1 LED patented design is a properly-engineered solution that finally provides a true upgrade in performance, with high reliability: and it's tested and validated to meet those standards, just like OEM lighting.


Compact Size. Your order includes two bulbs, to replace the factory bulbs in your vehicle. The bulbs are compact in size, in a patented design that isn't much bigger than the original halogen bulb. The drivers are compact too! If you have a sealed lamp, they are designed to fit inside. The drivers and bulbs are tested to last over time, even when sealed inside. Please see further information on Vehicle-Specific product listings, or contact us.


Street Legal Output. Don't be fooled by high lumen numbers. Your vehicle's lamps are designed as a system, to focus light. If the light source in that system is out of focus, it doesn't matter how bright it is. You won't have a focused hotspot of light to shine down the road, you'll just have more glare. To correct this, the SL1 LED bulb was engineered with advanced optical design software, which simulates each ray of light in a process known as "ray tracing." Using this tool, our engineers perfectly matched the filament location, allowing the SL1 LED to focus light just like your original bulb, preserving the focus and hotspot, with no added glare. This is a safe, functional output, in compliance with photometric standards.


Tested to Perform. We test the SL1 bulb in factory lamps, and measure the entire beam pattern using specialized equipment. It's an elaborate affair: a lamp is mounted to a computer-controlled rotating head called a goniometer. Light shines down a tunnel, where a sensor collects data as the light is rotated. The entire beam pattern is mapped, and we compare the total output to the original halogen. With proper optical engineering, testing, and validation in the application, we can assure correct optical performance.


SL1 Heat Comparison

Staying Cool. You may have seen bulbs that use large straps for cooling, or big fans that just make noise. These bulbs still run hot, pushing the LEDs past their limits, resulting in degradation of output after a few months. When it comes to cooling, proper engineering is required to efficiently remove heat from the bulb. In the SL1, it comes together as a whole system that was extensively tested, with dozens of iterations to achieve the best cooling performance possible. It includes a direct-solder copper core board, thermal phase-change interface material, and thermally-modeled zinc casting get heat to the base, where base fins are designed for aerodynamic performance in conjunction with the flow rate and pressure of the Sunon bearingless microfan. The result is a highly-effective and reliable cooling system, keeping the bulb running at maximum potential. Click here to learn more: Are Your Bulbs Too Hot? Video.


Fitment. With its patented design, the SL1 LED fits where other bulbs won't, without cutting or modification. There's no hanging metal straps, just a compact bulb that plugs right in, with an exclusive reinforced shroud to keep the heat off any other components or wiring. Only slightly larger than a standard halogen bulb, it fits behind dust caps and in tight spaces. The driver and bulb are tested to function when sealed inside - no worries about heat buildup! The base sizes on the bulb are also are keyed for exact applications, not one-size-fits-all, and the compact driver easily tucks away.


Driven. Rather than a simple buck regulator found on other bulbs, the SL1 uses a unique boost-mode circuit, which prevents thermal imbalance in the LEDs over time - again, just like you would find in OEM LEDs. It also has transient protection for long life in automotive circuits. Diode Dynamics engineers also analyzed dozens of OEM electrical systems, and added current-monitoring circuitry to mimic the electrical characteristic of halogen bulbs, drastically reducing the need for CAN-BUS adapters (though they're still needed on some applications).


Reliability. Every part of the SL1 LED was designed for reliability, from the custom wiring with strain reliefs and solderless terminals, to the exclusive zinc castings, to the reinforced high-temperature PP-GF plastics (the same used in halogen bulb bases). Each component was designed and tested, with dozens of variations of each component reviewed until we achieved the maximum performance possible. Finally, the SL1 was put through its paces in our environmental testing chambers - where the bulb successfully performed through dozens of thermal cycles, from -40 through 85 degrees Celsius (-40 to 185F). Whether you're in the Sahara or northern Canada, the SL1 will keep performing for years, and is backed by a three year warranty. Click here to learn more: Reliability Testing of LED Bulbs Video.


Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer an increasing number of products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!


In the Box:
  • Two (2) LED Bulbs
  • One (1) Hex Tool
Quantity: Pair
Warranty: Lifetime warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

Bulb Size: H11
Electrical Compatibility: No known electrical issues
DRL Function: Operates at full brightness for DRL

Measured Lumens: 2400 (per bulb)
Color Temp (CCT): 6000K
Power (watts): 21
Operating Voltage: 9-30V
Current (amps @ 12.8V): 1.6
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: TST Automotive Grade LED
Connector(s): OEM-Size Plug and Play
Driver Features: Internal, Constant Current, Transient Protection
Driver Dimensions: 2.19" x 1.13" x 0.56"
Materials: Copper PCB, Die Cast A360 Aluminum
Cooling: Integrated, Top-Mounted Cooling Fan
Compliance Ratings: SAE J575 Durability Test
Bulb Size: H11
Electrical Compatibility: No known electrical issues
DRL Function: Operates at full brightness for DRL
100% Satisfaction Guarantee

Installation Time: 20-30 minutes

Tools Needed: Basic Toolset

Modification: None


Limited Lifetime Warranty

Diode Dynamics carries a Lifetime Limited Warranty on select products.

If you experience any defect with a product, we will diagnose the issue with you, and if necessary, provide a replacement. Click here to learn more.
