Diode Dynamics Ultra Heavy Duty Single Output 4-pin Wiring Harness
Description
Description

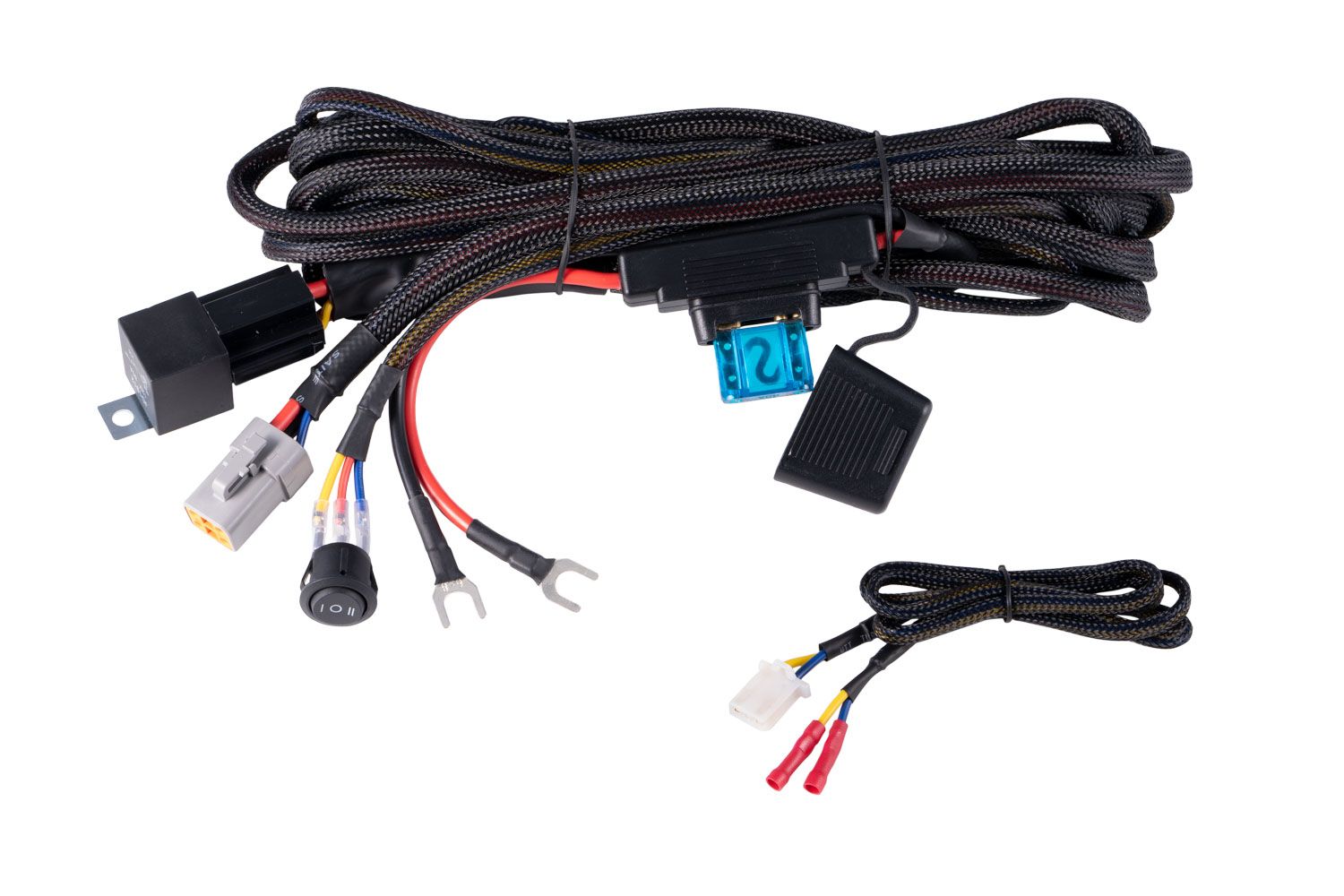

The Diode Dynamics Ultra Heavy Duty Single Output 4-Pin Wiring Harness is purpose-built to handle the extreme electrical demands of SS5 Pro CrossLink Lightbars (5ā8 Pod) and large Stage Series Light Bars including SS30, SS40, and SS50 models. Engineered for reliability and efficiency, this harness ensures consistent power delivery to your lighting system in any environment.

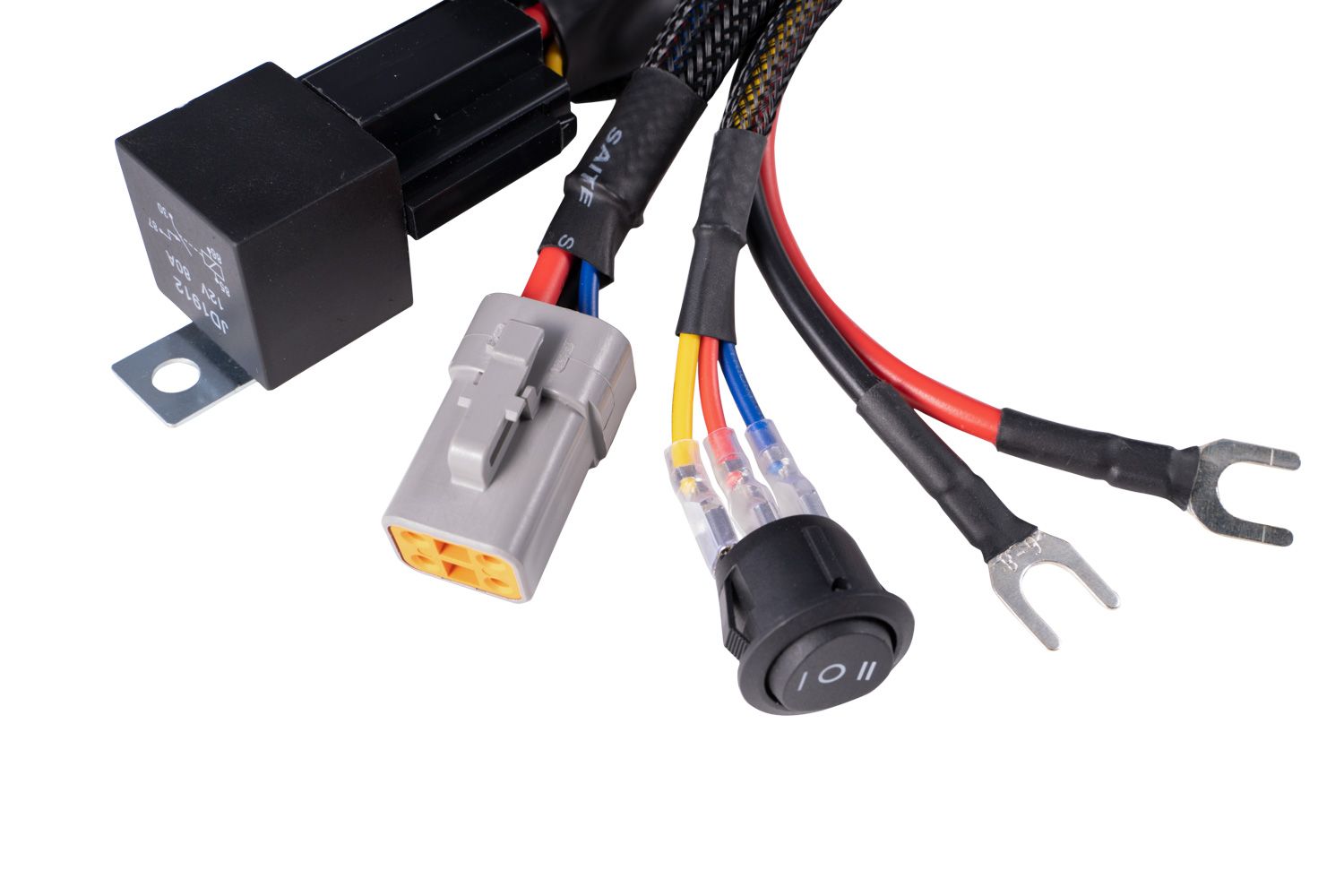

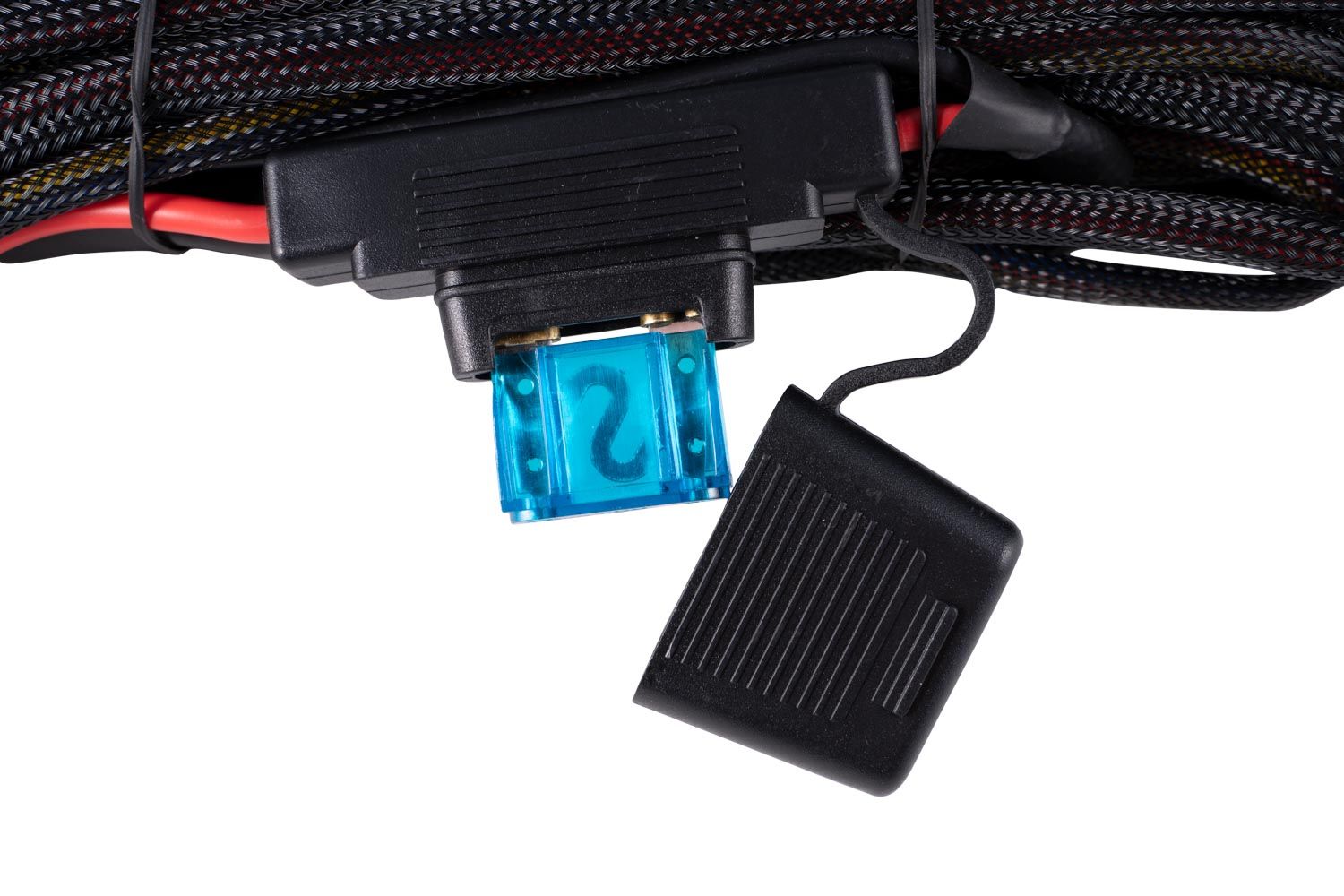

Built for Power and Protection: Featuring 10AWG high-capacity wiring, a 60A waterproof fuse, and an 80A 12V relay, this harness is designed to safeguard your electrical system while delivering stable current to your light bars.

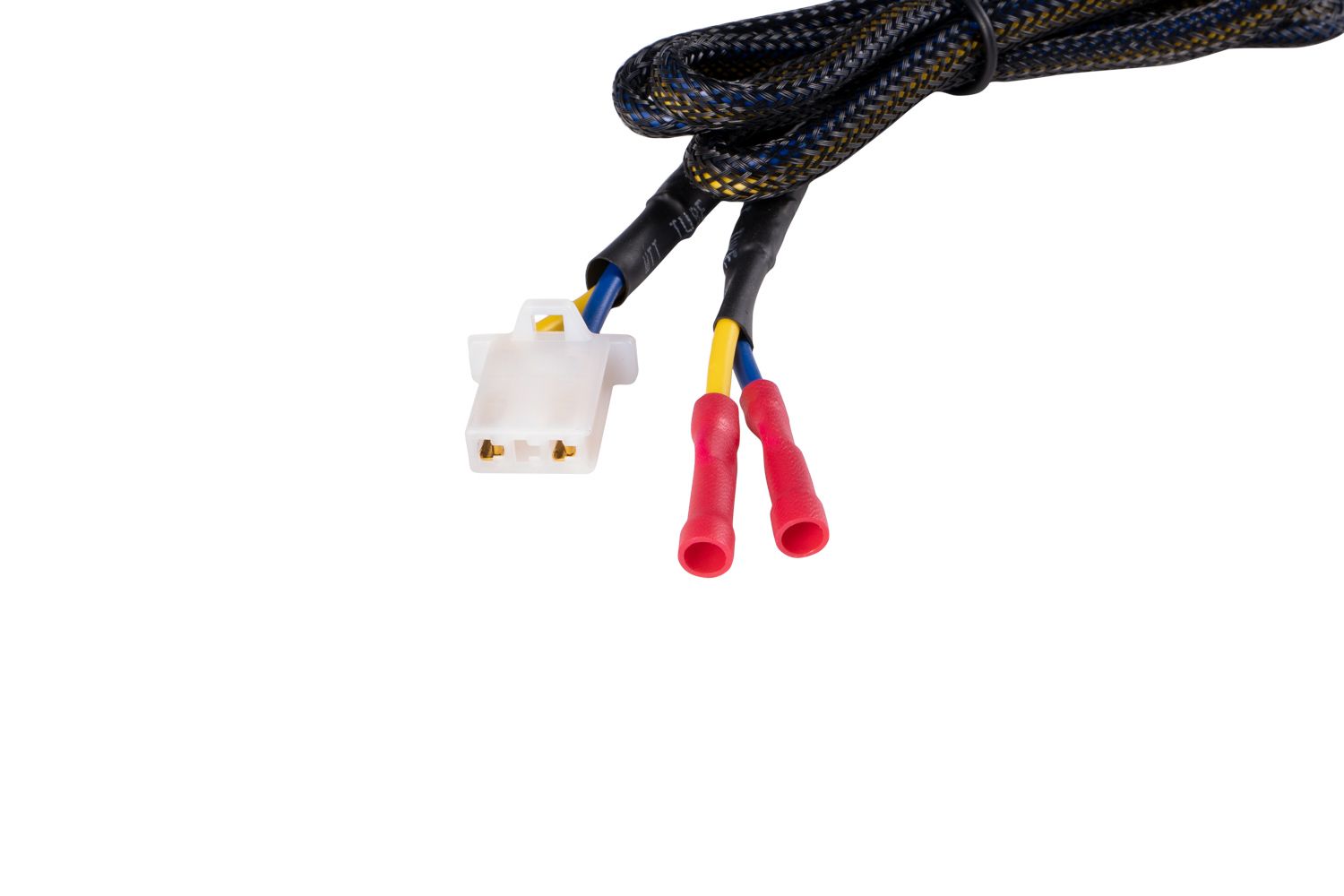

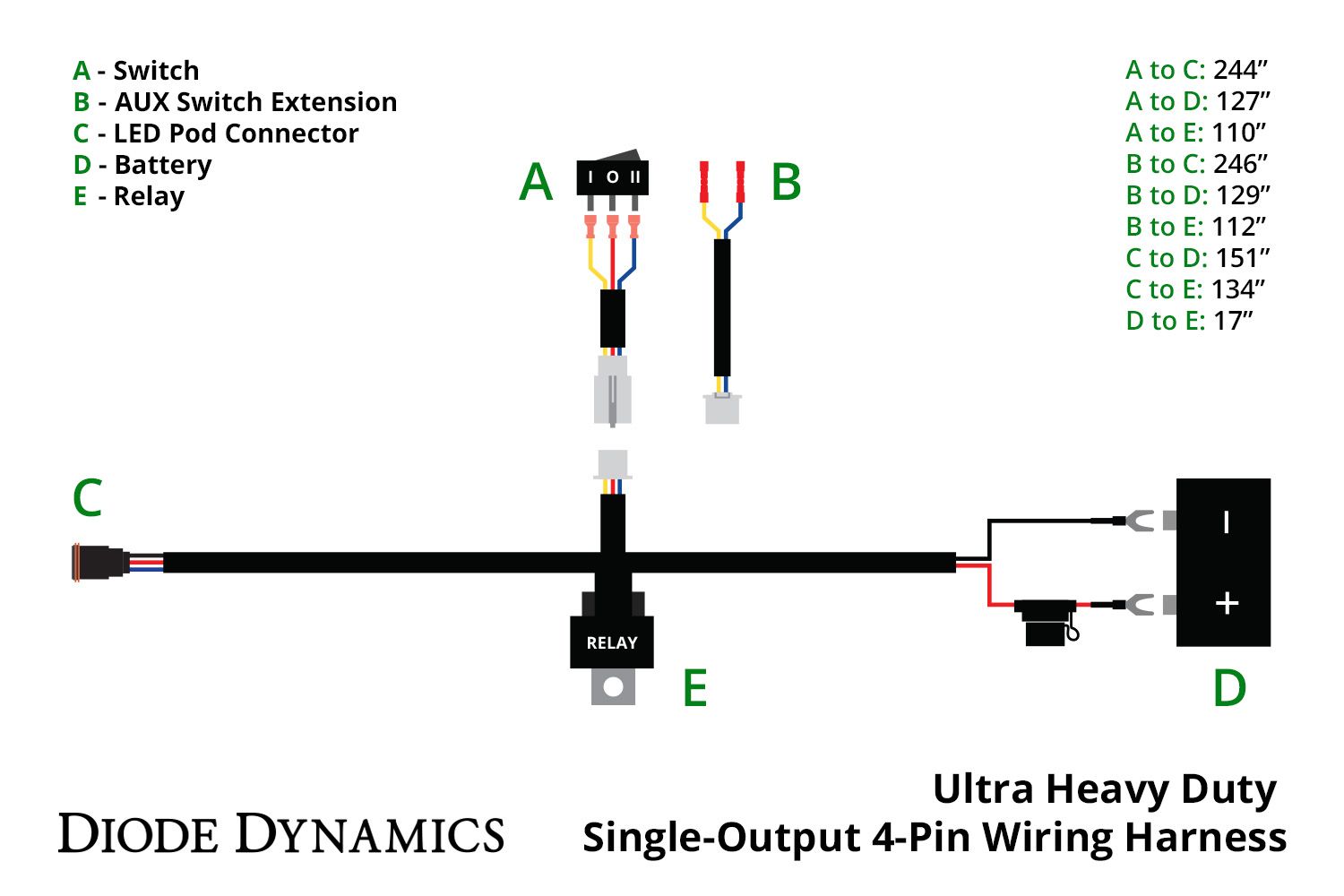

Plug-and-Play Simplicity: The harness connects directly to your battery and includes a three-way toggle switch for full control of your lighting setupāswitch between backlight, off, or full beam. It can also integrate with your Auxiliary Switch Bank using the included adapter for OEM-style operation.
Designed for Demanding Loads: Capable of safely powering up to 45A of auxiliary lamps, the harness provides the strength and reliability needed for high-output lighting applications.
Purpose-Built Compatibility:

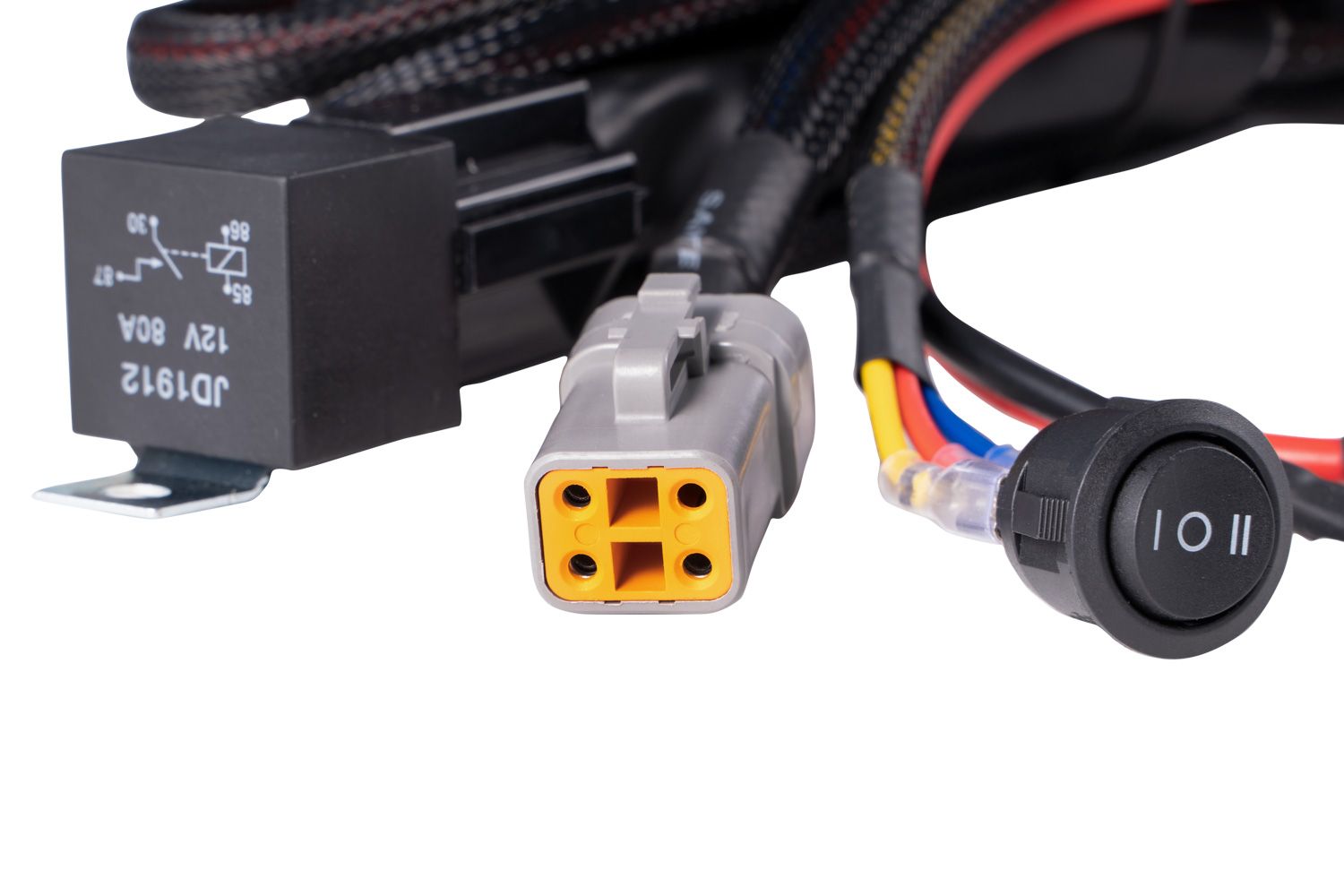

This harness uses a Deutsch DT-P output connector, intended to connect with the Ultra Heavy Duty SS5 Splitter Harness to build multi-pod CrossLink systems. It will not connect directly to other Diode Dynamics LED products.
Proven Quality:
Like all Diode Dynamics products, this harness is engineered and assembled in the USA for maximum reliability and longevity. Backed by a 3-Year Worry-Free Warranty, itās built to perform wherever your rig takes you.
