Diode Dynamics

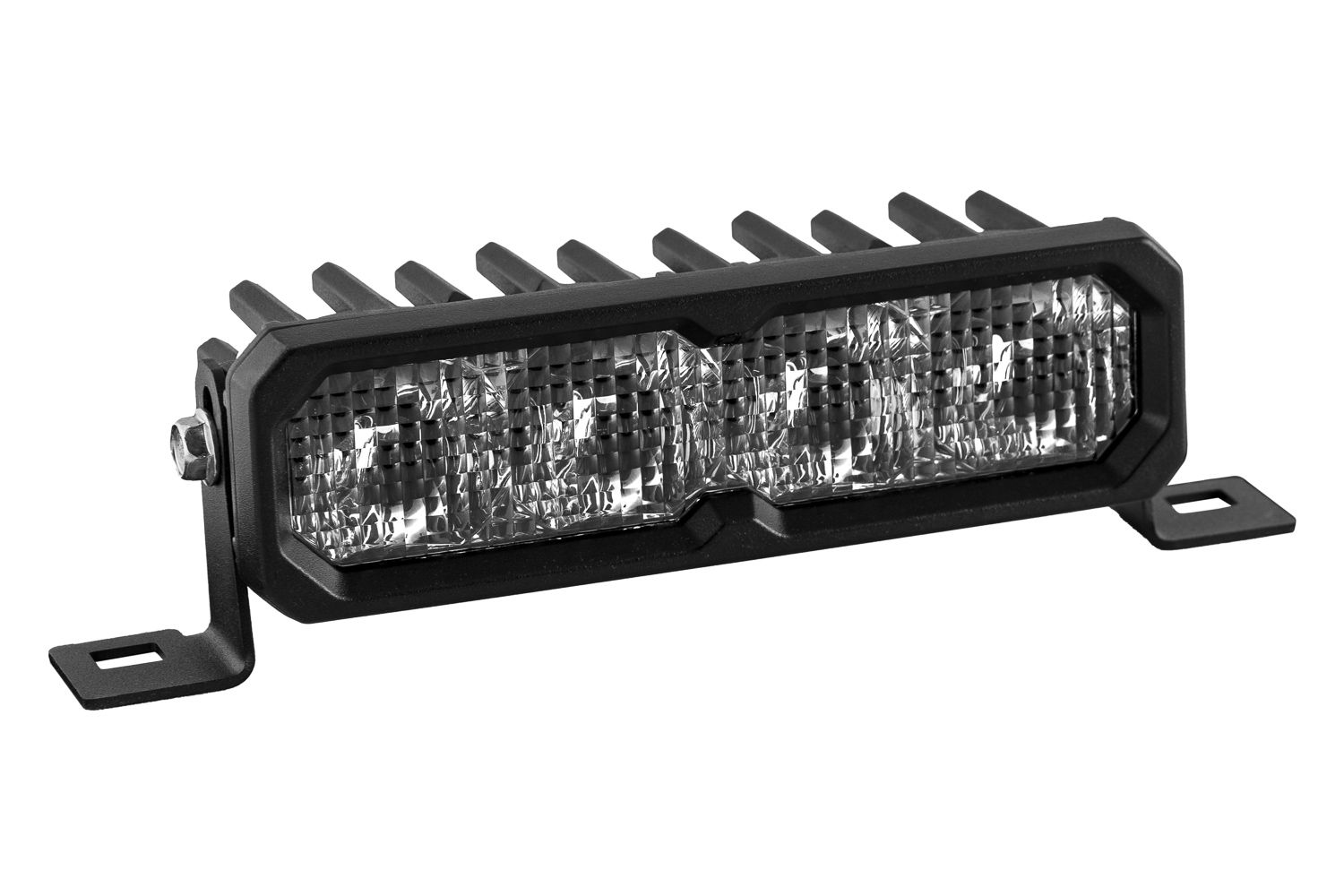

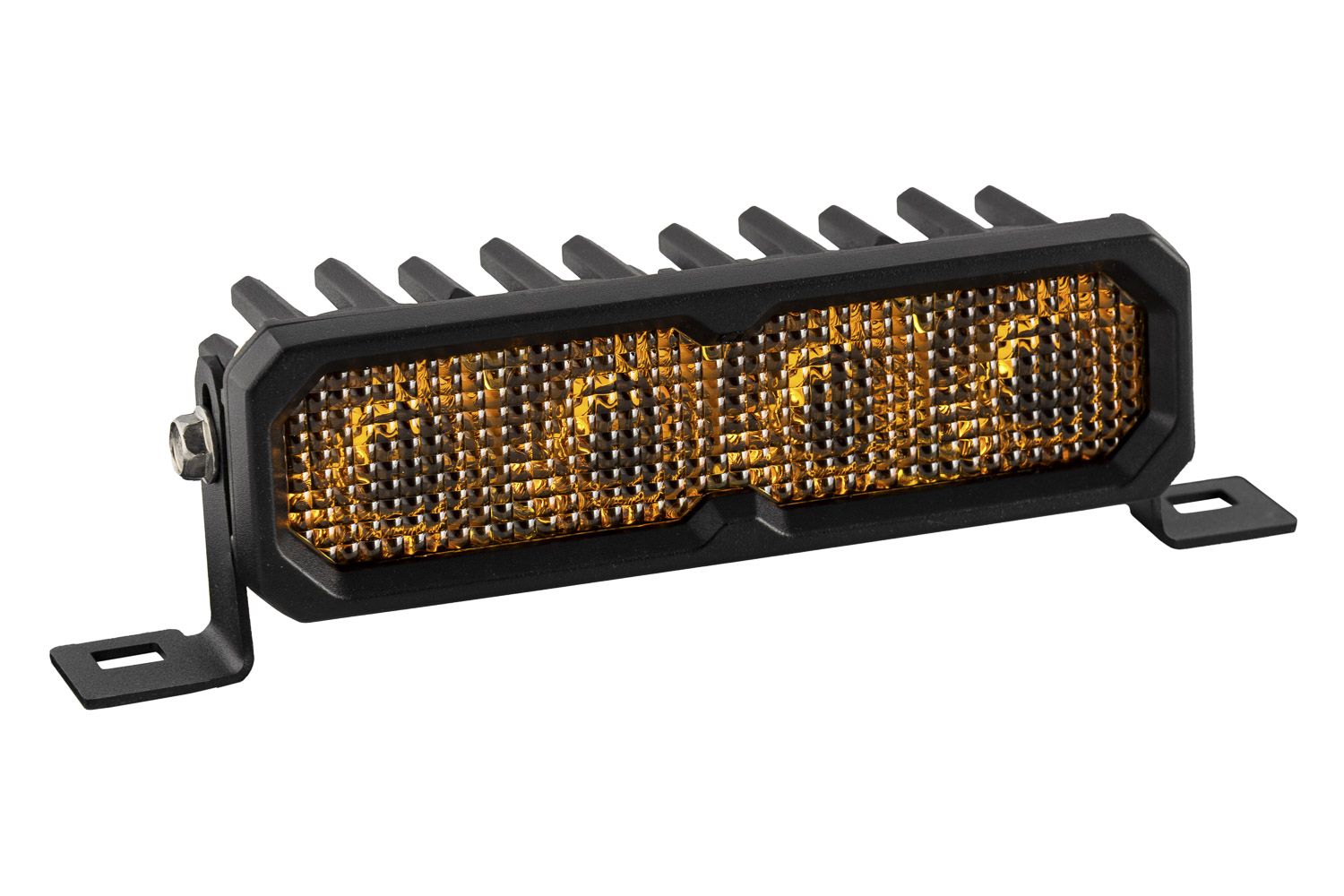

Diode Dynamics SS6 LED Light Bar

$ 149.95 USD
Shipping calculated at checkout.
Number of Lights and Color
Choose Your Beam Pattern
Choose Your Power Level

Short Description

Illuminate your path with the Diode Dynamics SS6 SAE/DOT LED Light Bar, available in white or yellow, single or pair options. Choose Sport, Pro, or Max power levels with versatile beam patterns and optional amber or red backlight. Rugged, waterproof, and made in the USA.

Delivery and Shipping

Domestic orders typically arrive within 3-7 business days, while international orders may take 7-14 business days. Please note that additional time may be required for items that are drop shipped or back-ordered.

Price Match Guarantee

We strive to offer competitive pricing and will price match qualifying competitors under certain conditions. Learn more here

Description

The Diode Dynamics SS6 SAE/DOT LED Light Bar delivers unmatched performance, flexibility, and durability for off-road enthusiasts, professionals, and daily drivers alike. Designed for maximum output, advanced optics, and precise beam control, the SS6 Stage Series Light Bar outperforms conventional LED lighting solutions.

Engineered for Maximum Performance:

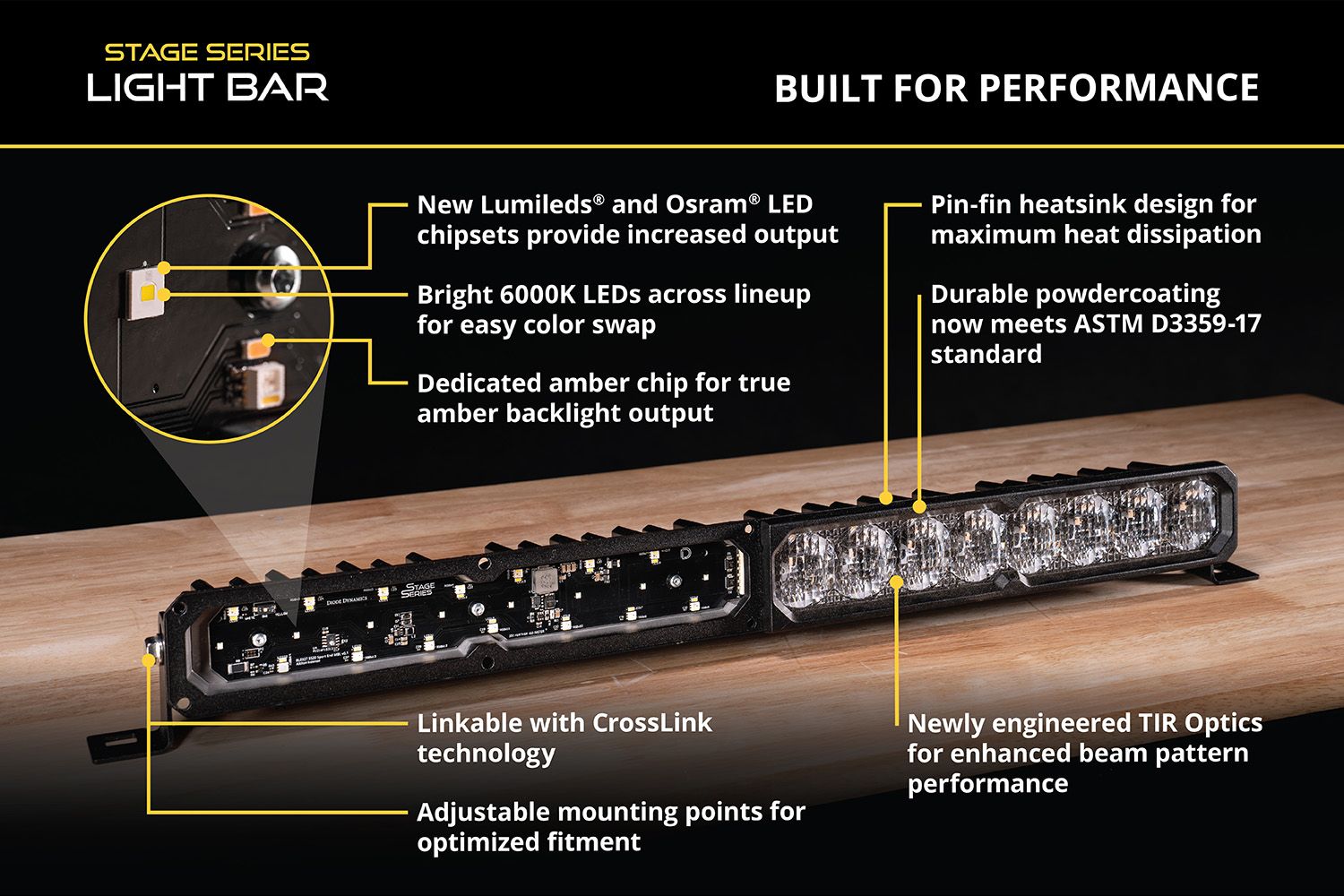

Patented TIR optics focus nearly all light output where itā€™s needed, reducing glare and wasted light. Optimized thermal management with copper PCBs and heatsinks ensures LEDs operate at full power for long-lasting, bright illumination.

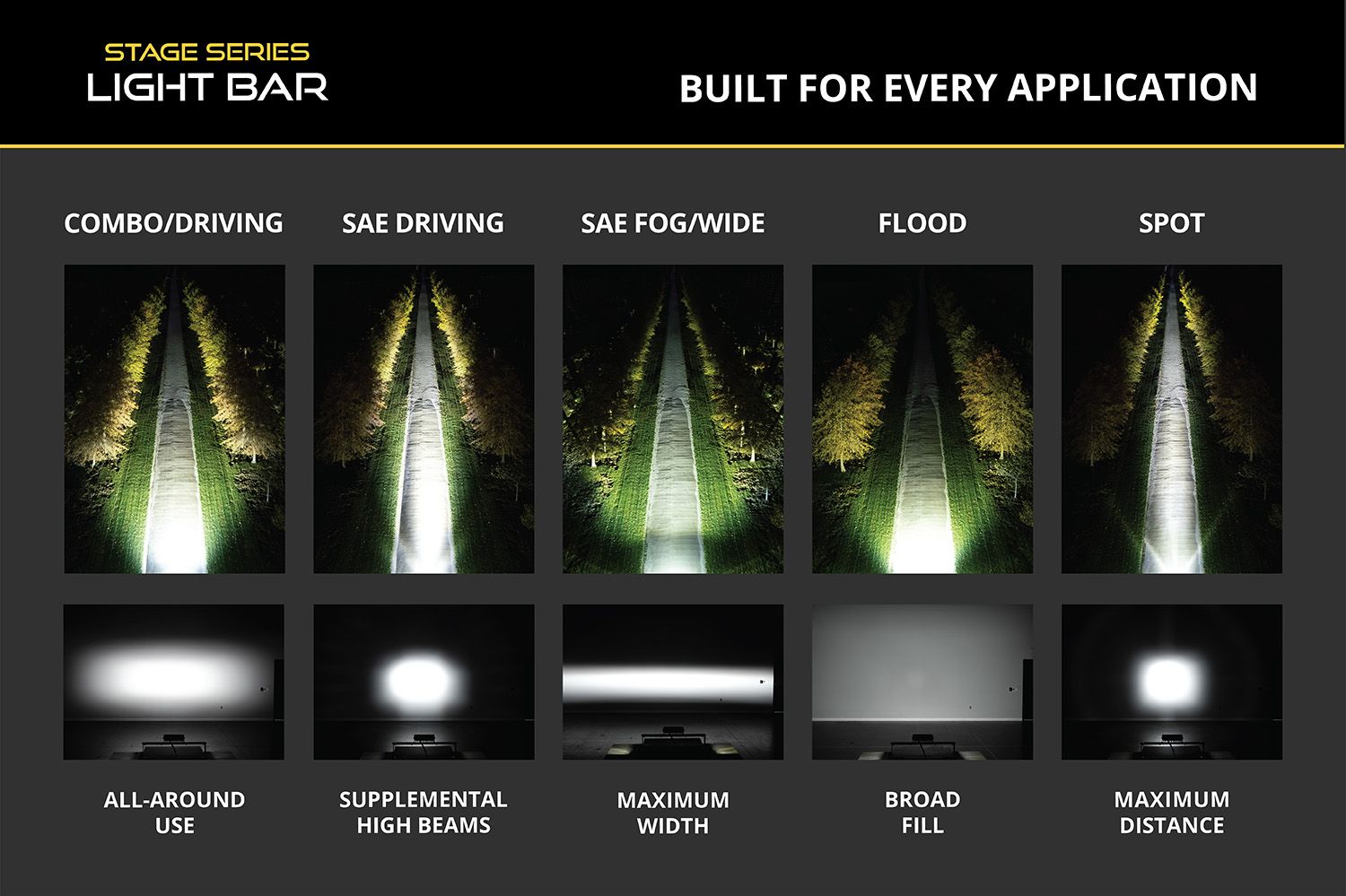

Multiple Beam Patterns for Any Application:

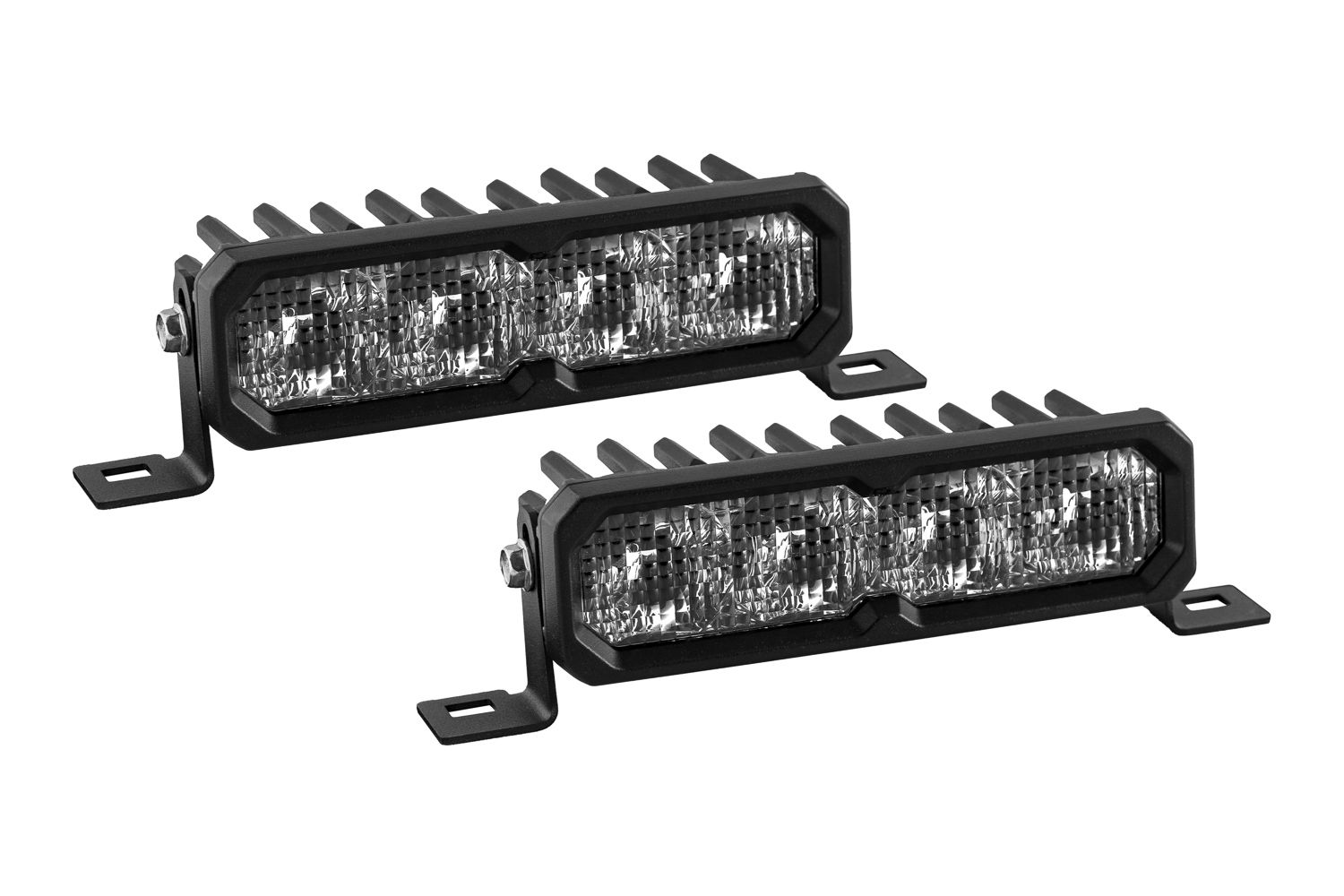

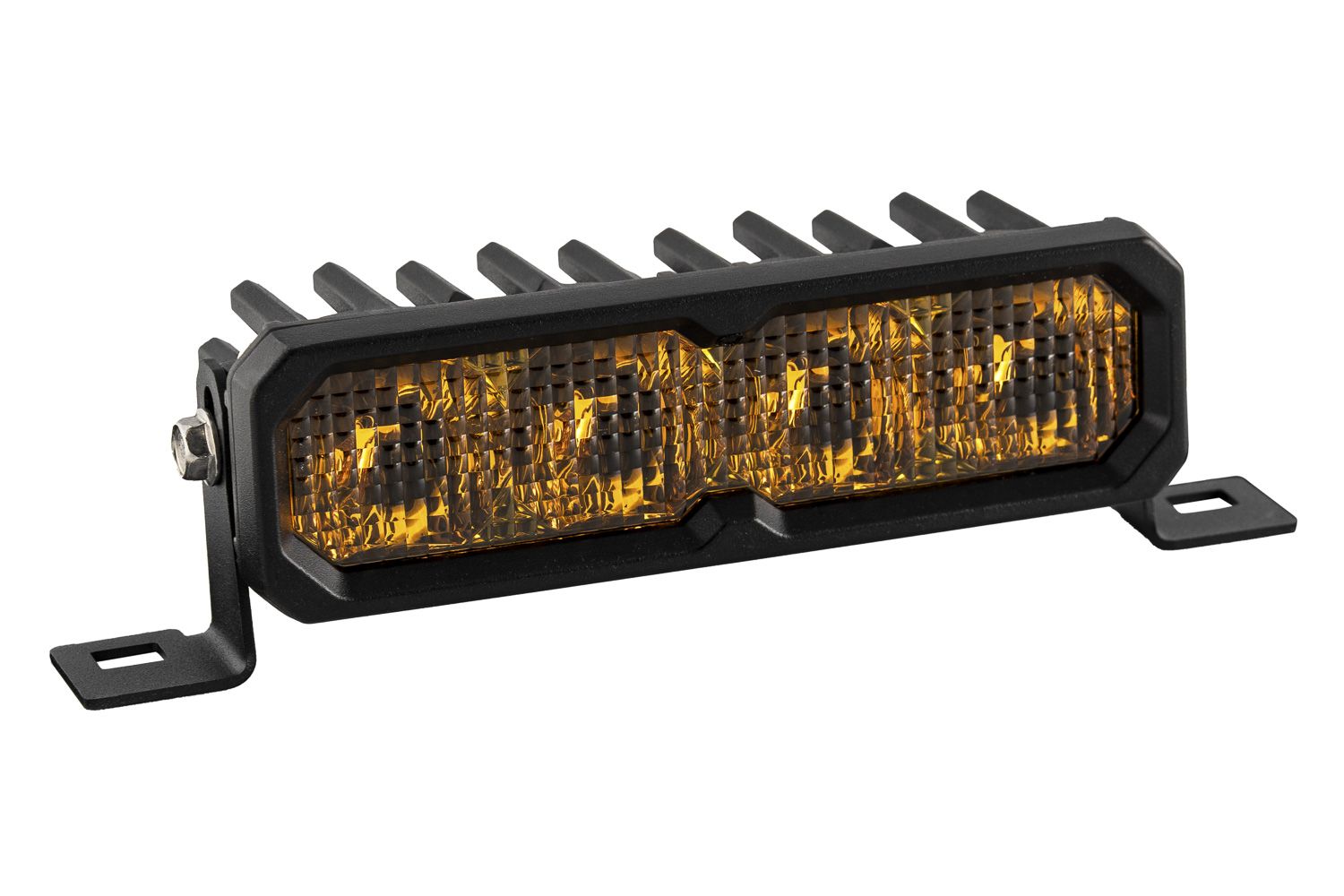

  • Combo/Driving (60Ā°x30Ā°): Balanced distance and width for versatile, all-around illumination.

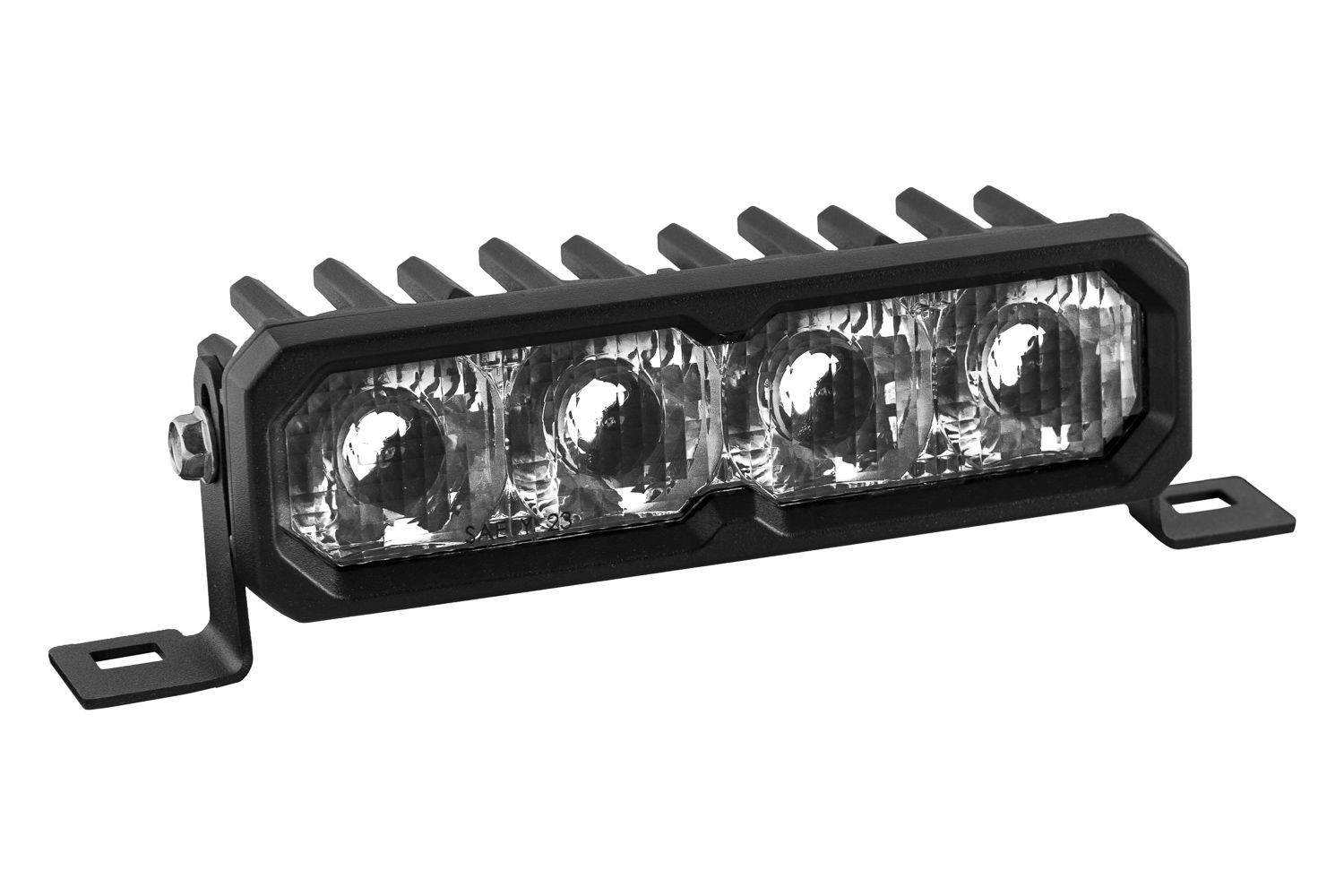

  • SAE/DOT Driving (20Ā°x12Ā°): Broad spot pattern to supplement high beams with extra reach.

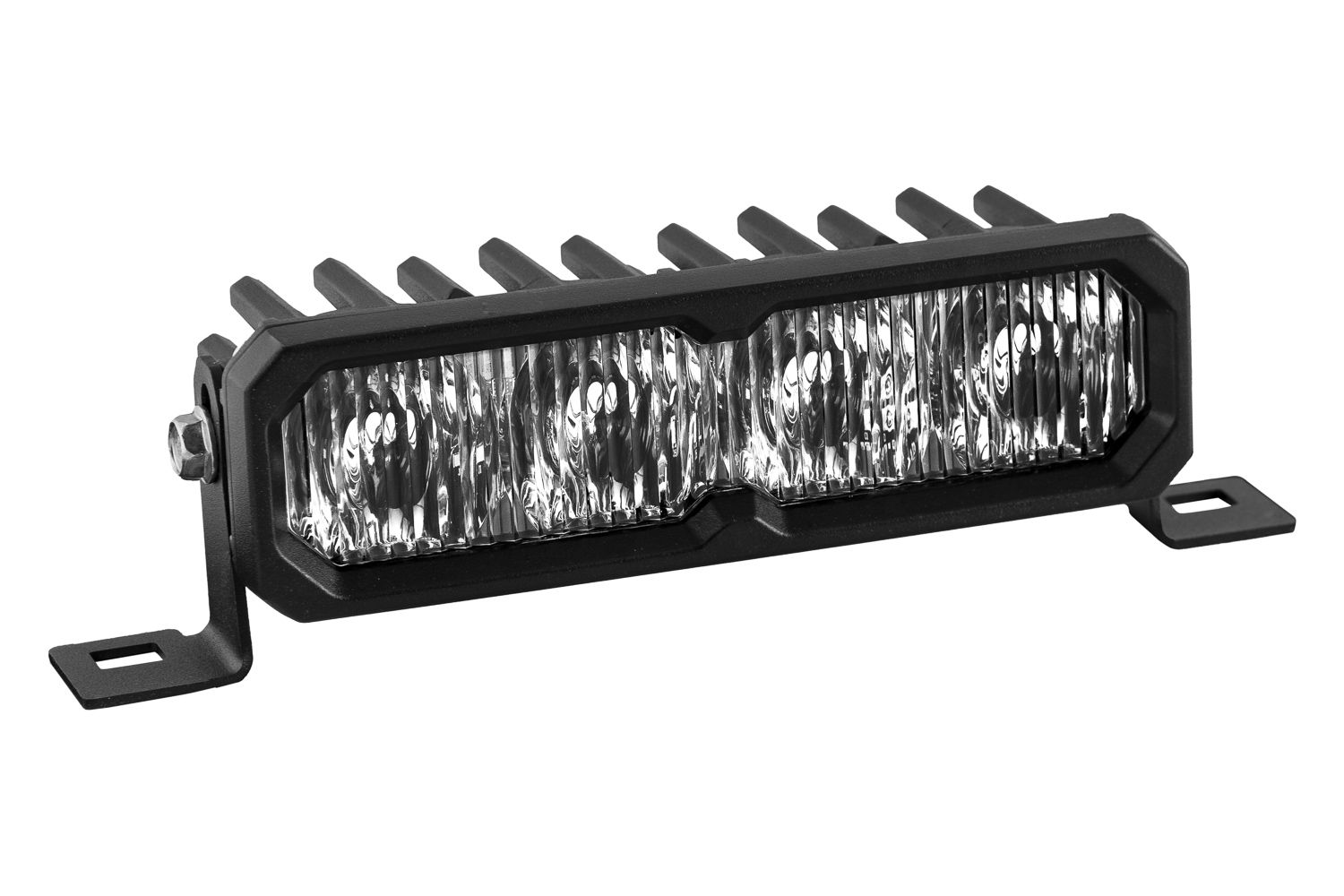

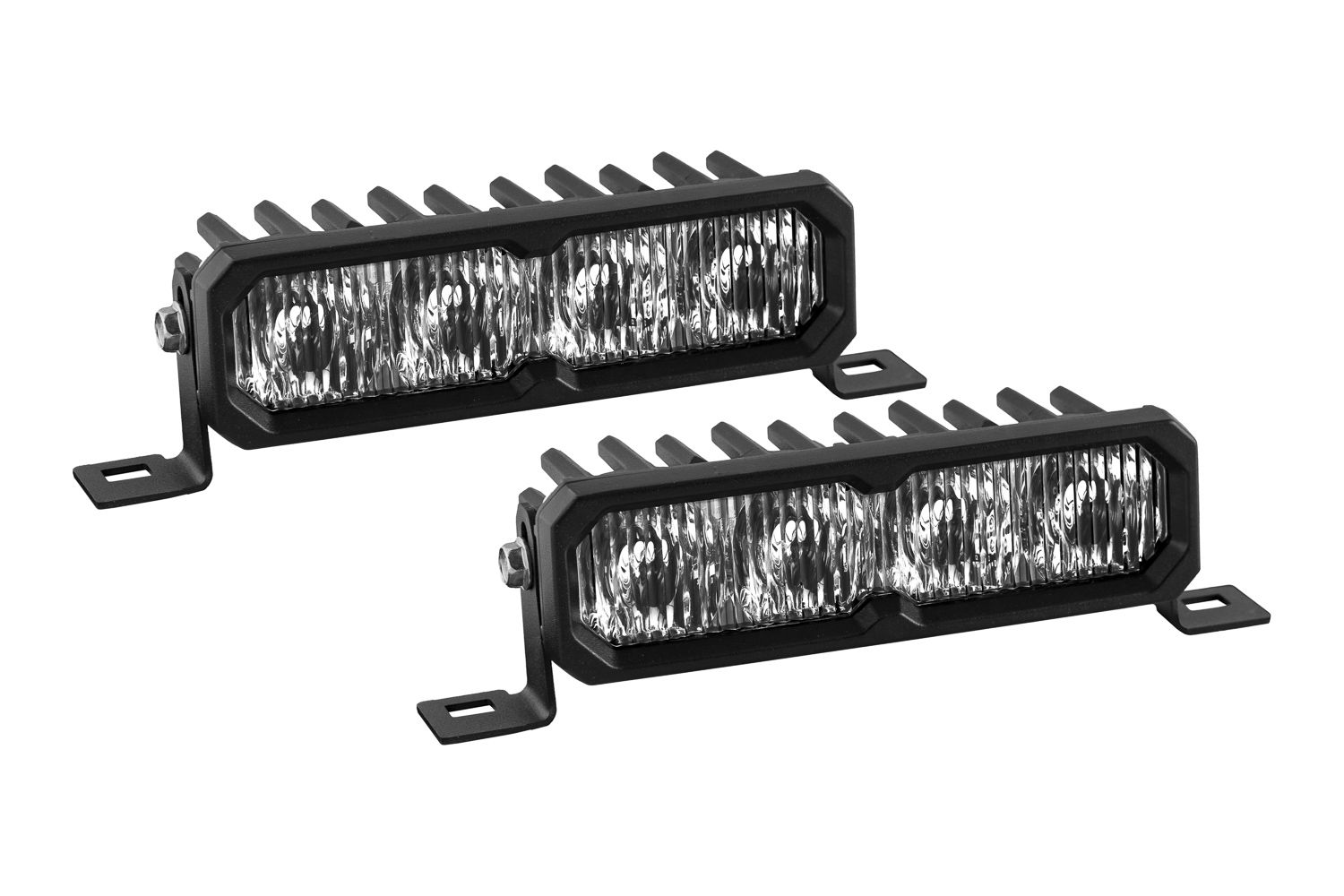

  • SAE Fog/Wide (90Ā°x10Ā°): Wide, low-mounted coverage for fog, trails, or work areas.

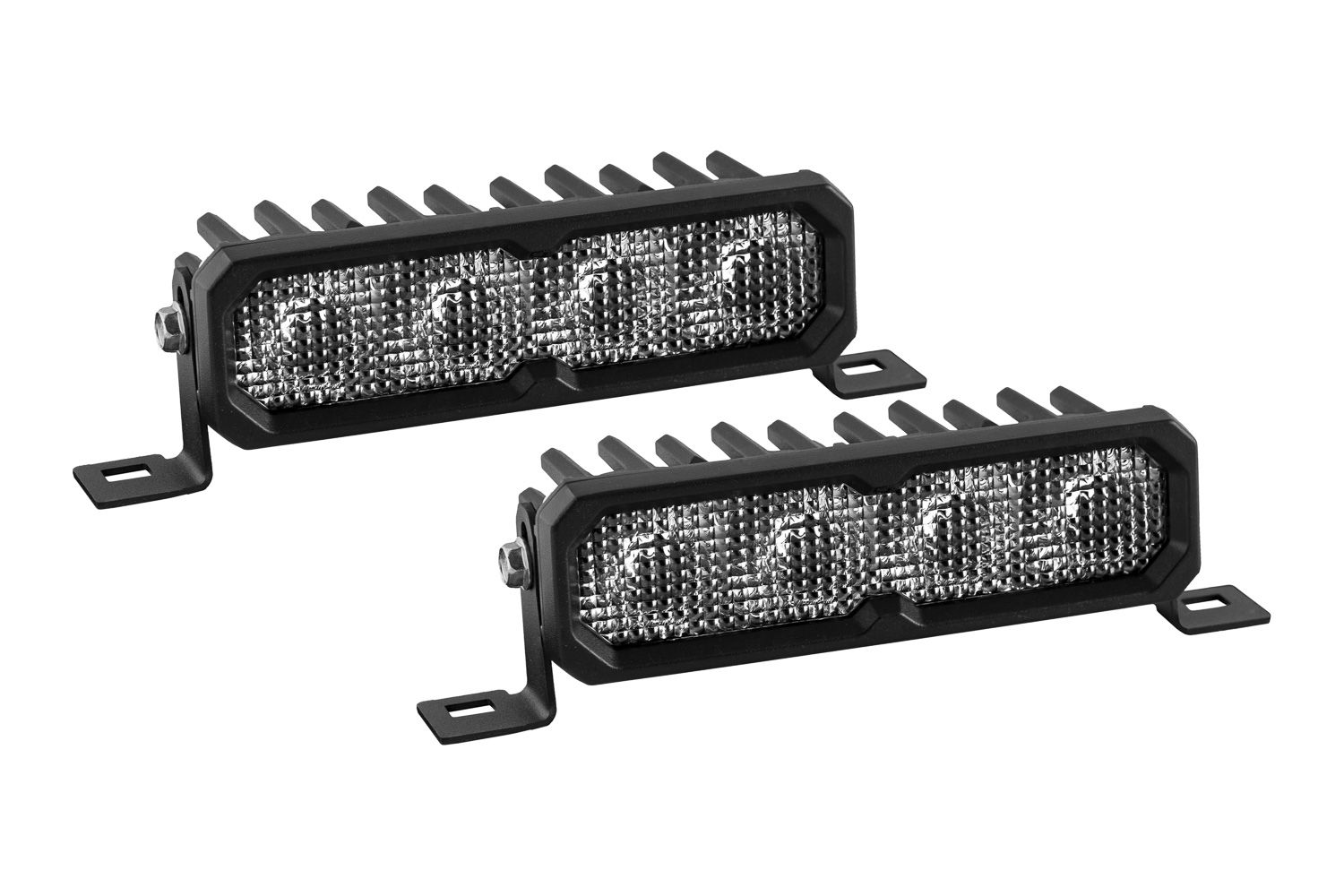

  • Flood (100Ā°x80Ā°): Smooth, even light ideal for low-speed work, campsites, or trailers.

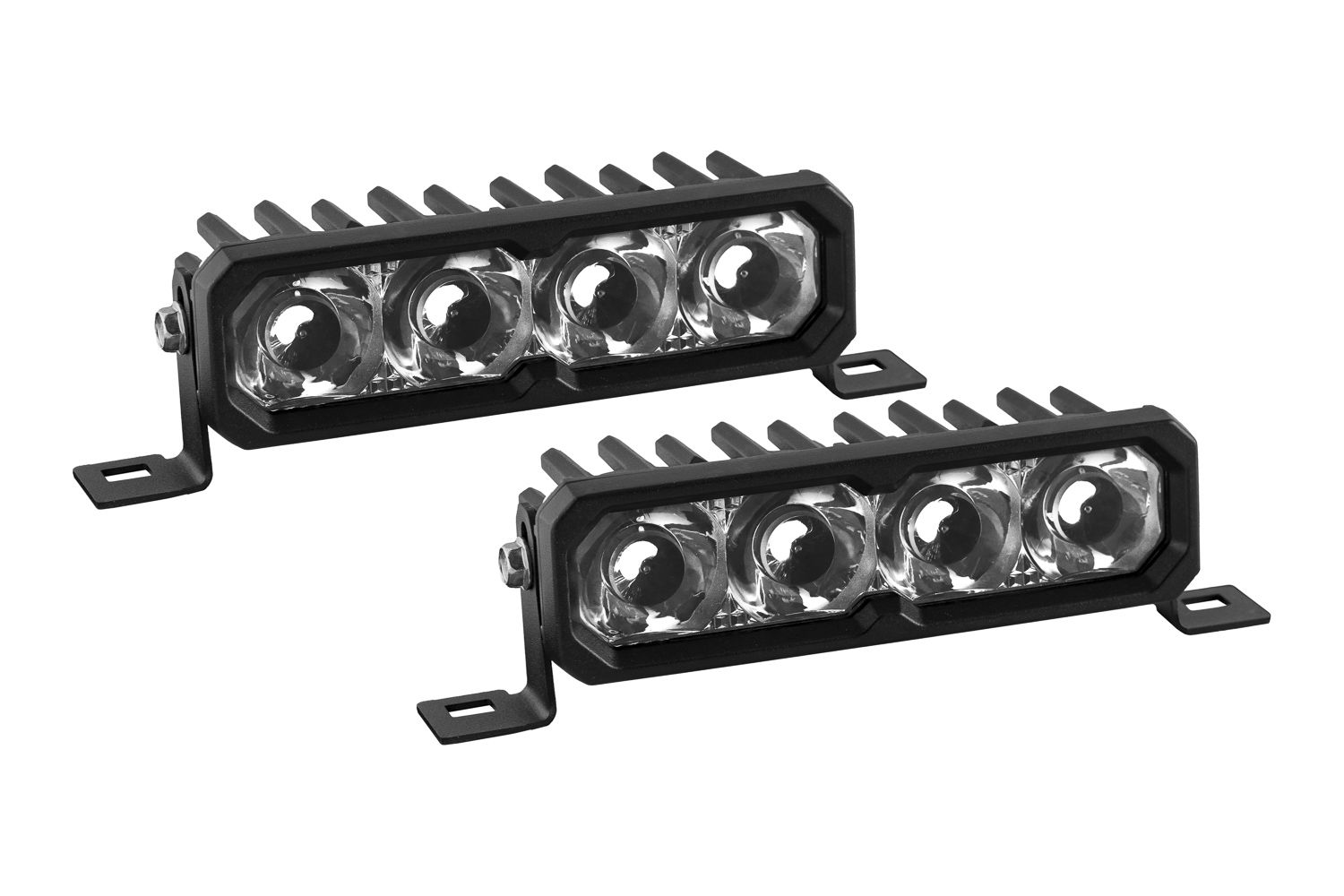

  • Spot (8Ā°x8Ā°): Focused, long-distance illumination for high-speed off-road applications.

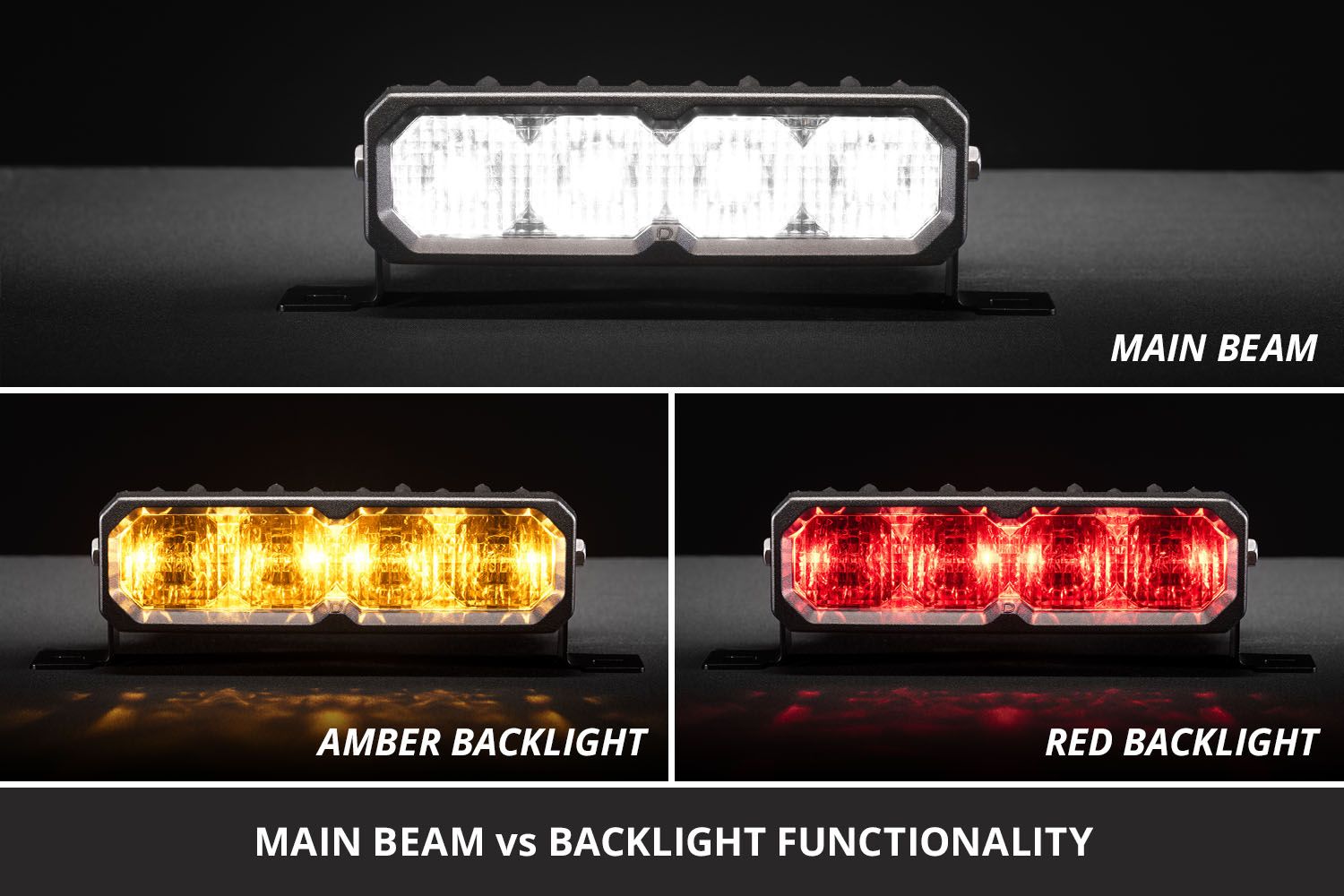

Customizable Backlighting:
Choose Amber or Red backlighting on White Bars with Combo/Driving or Flood Optics.
Only Amber Backlighting onĀ SAE/DOT Driving, SAE Fog/Wide and Spot White Bar Optics.

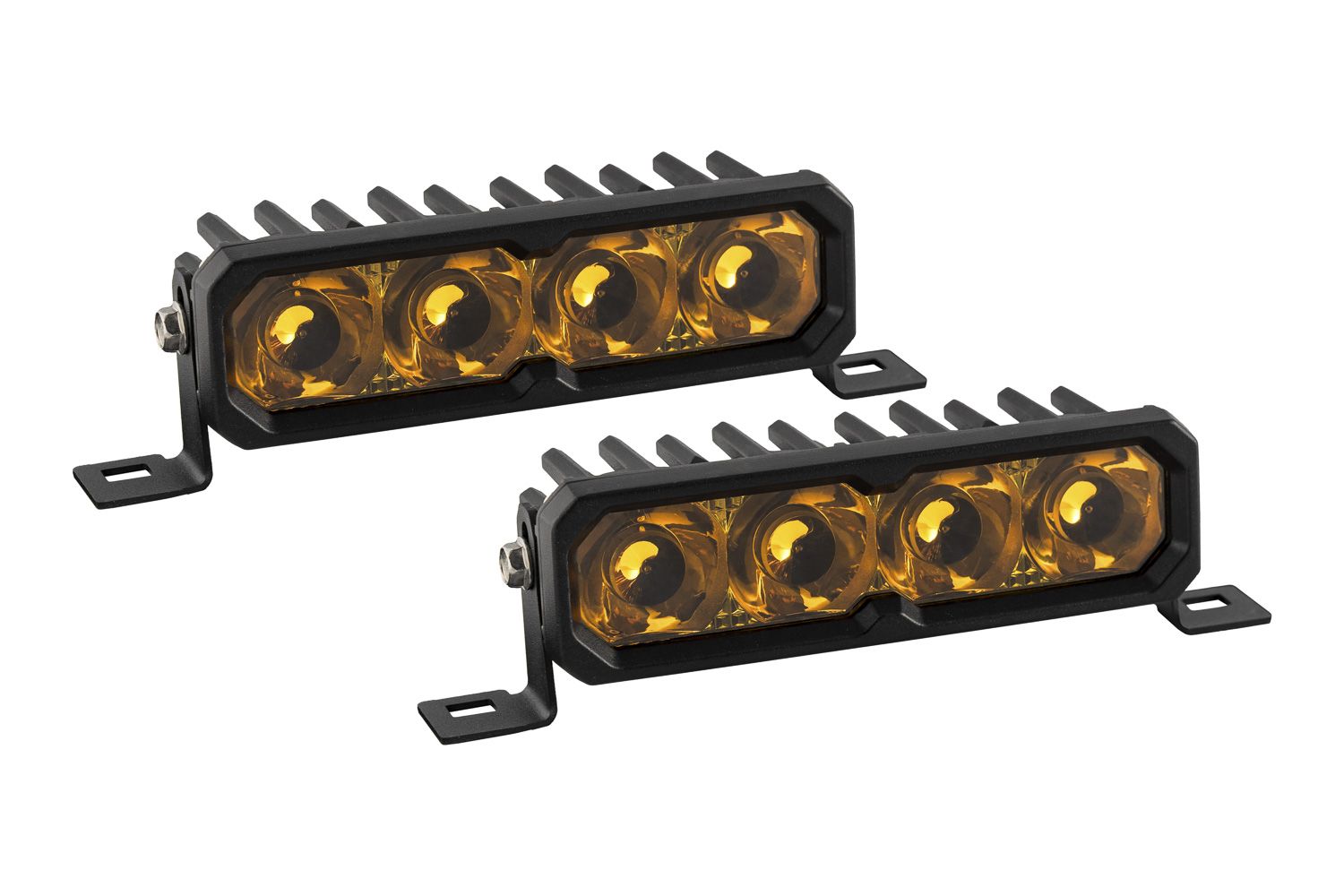

All Yellow Bars have Amber BacklightingĀ for accent illumination. Amber works best for forward-facing applications, while red enhances rear-facing visibility.

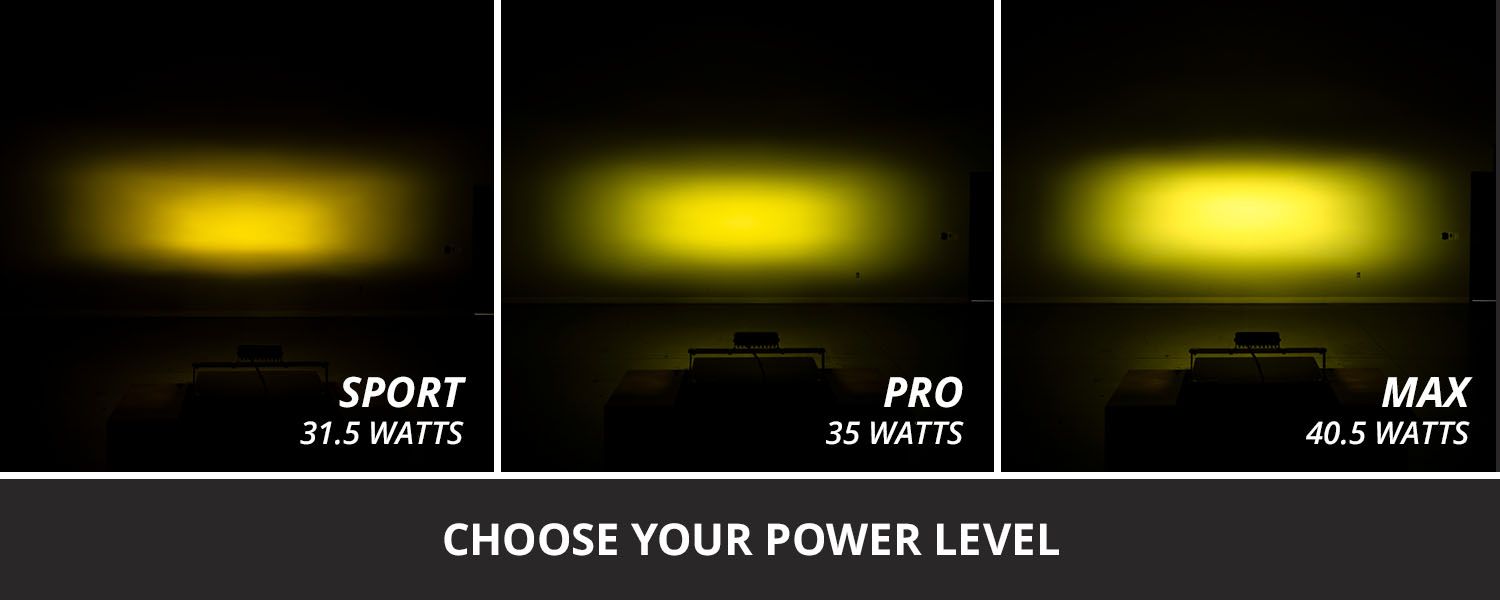

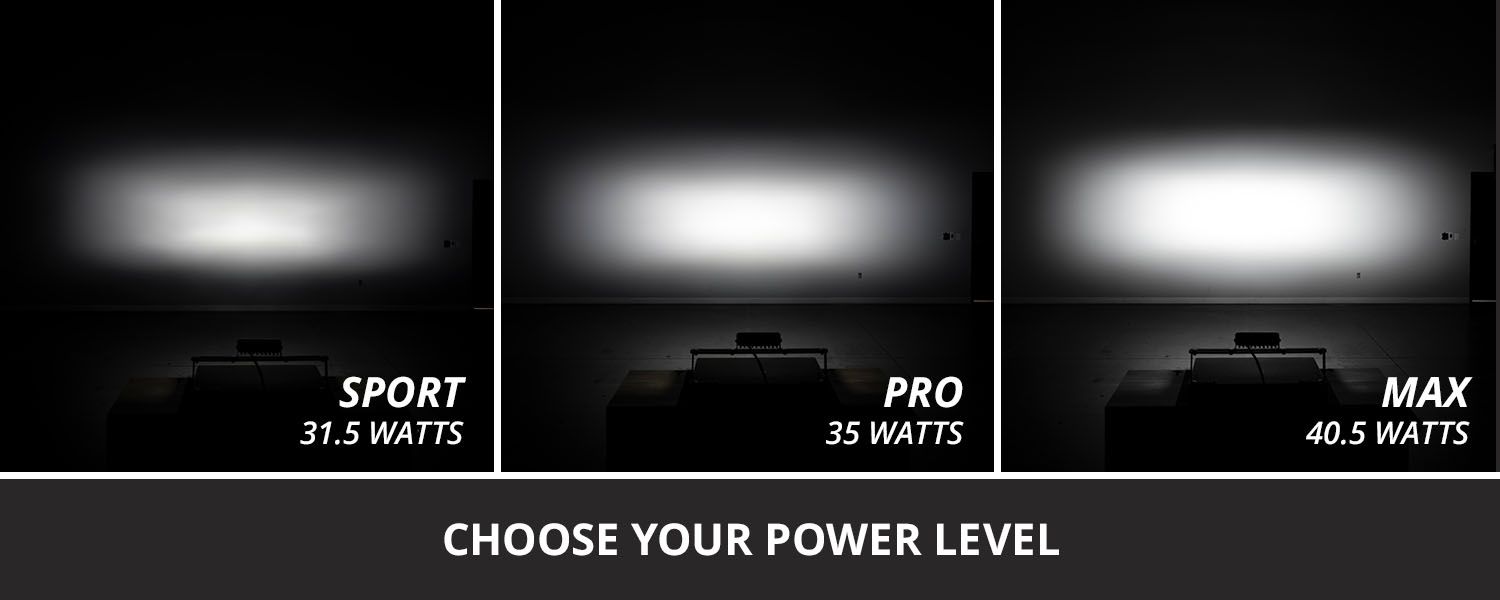

Available Power Levels:

  • Sport: Efficient and cost-effective high output

  • Pro: Increased intensity and coverage

  • Max: Extreme brightness with Osram HX Boost LEDs

Durable & Reliable:
Constructed with an aluminum housing, polycarbonate lens, stainless steel brackets, and ASTM-standard powdercoat finish. IP69K-rated for water and dust resistance. Tested for vibration, corrosion, and extreme temperatures.

Made in the USA:
Manufactured in the United States with globally sourced components and backed by a limited lifetime warranty.

Applications:
Perfect for trucks, SUVs, off-road vehicles, trailers, and work zones. Ideal for recreational or professional use.

In the Box:

  • Single or pair of LED light bars

  • Wire pigtails

  • Universal bracket set

  • Lifetime warranty

Specifications

Vehicle Fitment: Universal Mount

Brand: Diode Dynamics

Type: LED Light Bar

Power Levels & Beam Patterns (White 6000K / Yellow 3000K):

SAE/DOT Driving:

  • Sport:
    60,400 cd / 604 lux / 1,844 lm (White)
    12,400 cd / 124 lux / 1,844 lm (Yellow)
  • Pro:
    74,000 cd / 740 lux / 6,272 lm (White)
    17,000 cd / 170 lux / 6,272 lm (Yellow)
  • Max:
    84,500 cd / 845 lux / 7,920 lm (White)
    21,000 cd / 210 lux / 7,920 lm (Yellow)

Flood:

  • Sport:
    1,550 cd / 16 lux / 1,844 lm (White)
    1,200 cd / 12 lux / 1,844 lm (Yellow)
  • Pro:
    2,150 cd / 22 lux / 6,272 lm (White)
    1,500 cd / 15 lux / 6,272 lm (Yellow)
  • Max:
    2,500 cd / 25 lux / 7,920 lm (White)
    8,800 cd / 18 lux / 7,920 lm (Yellow)

SAE Fog/Wide:

  • Sport:
    15,000 cd / 150 lux / 1,844 lm (White)
    15,000 cd / 150 lux / 1,844 lm (Yellow)
  • Pro:
    16,000 cd / 160 lux / 6,272 lm (White)
    16,000 cd / 160 lux / 6,272 lm (Yellow)
  • Max:
    20,300 cd / 203 lux / 7,920 lm (White)
    20,300 cd / 203 lux / 7,920 lm (Yellow)

Combo/Driving:

  • Sport:
    15,400 cd / 154 lux / 1,844 lm (White)
    12,400 cd / 124 lux / 1,844 lm (Yellow)
  • Pro:
    23,700 cd / 237 lux / 6,272 lm (White)
    17,000 cd / 170 lux / 6,272 lm (Yellow)
  • Max:
    27,000 cd / 270 lux / 7,920 lm (White)
    21,000 cd / 210 lux / 7,920 lm (Yellow)

Spot:

  • Sport:
    154,500 cd / 1,545 lux / 1,844 lm (White)
    12,400 cd / 124 lux / 1,844 lm (Yellow)
  • Pro:
    161,400 cd / 1,614 lux / 6,272 lm (White)
    17,000 cd / 170 lux / 6,272 lm (Yellow)
  • Max:
    181,500 cd / 1,815 lux / 7,920 lm (White)
    21,000 cd / 210 lux / 7,920 lm (Yellow)

Beam Angle:
Combo/Driving 60Ā°x30Ā°
SAE/DOT Driving 20Ā°x12Ā°
Flood 100Ā°x80Ā°
Spot 8Ā°x8Ā°
SAE Fog/Wide 90Ā°x10Ā°

Power (Watts):
Sport 31.5
Pro 35
Max 40.5

Operating Voltage: 9ā€“30V

Current (amps @ 12.8V):
Sport 2.46
Pro 2.73
Max 3.16

Polarity: Polarity specific

Operating Temperature: -40C to 85C (-40F to 185F)

LED Emitter: Osram Boost HX, Osram Ostar Projection Compact, Lumileds Automotive Grade

Connector(s): Deutsch DT Input

Materials: Copper PCB, Polycarbonate Lens, Aluminium Heatsink, Stainless Steel Brackets

Cooling: Passive, heatsink

Intrusion Rating: IP69K waterproof, high-pressure

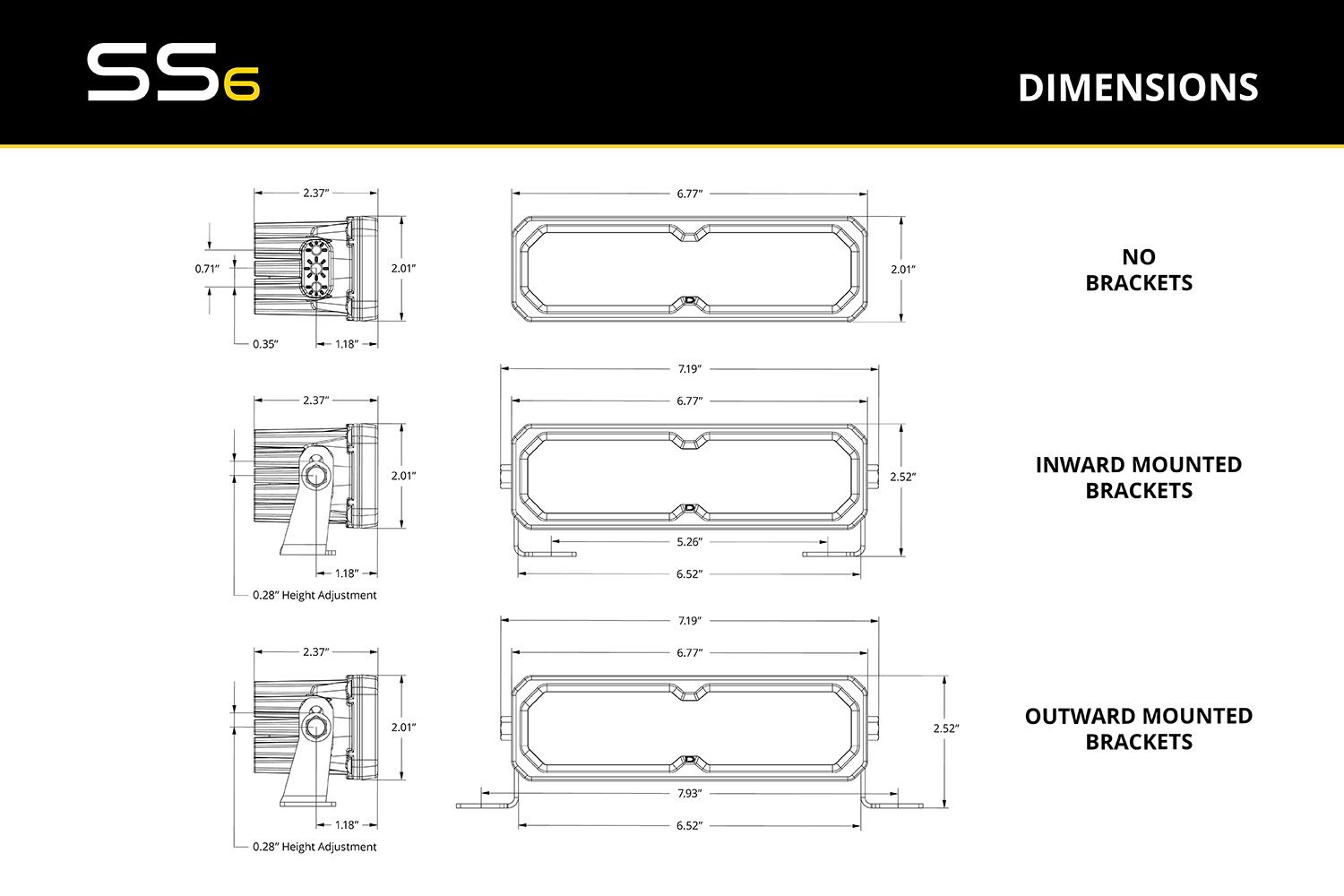

Dimensions (in): 2.01 x 6.77 x 2.37

Warranty: Limited Lifetime

Origin: Made in USA
