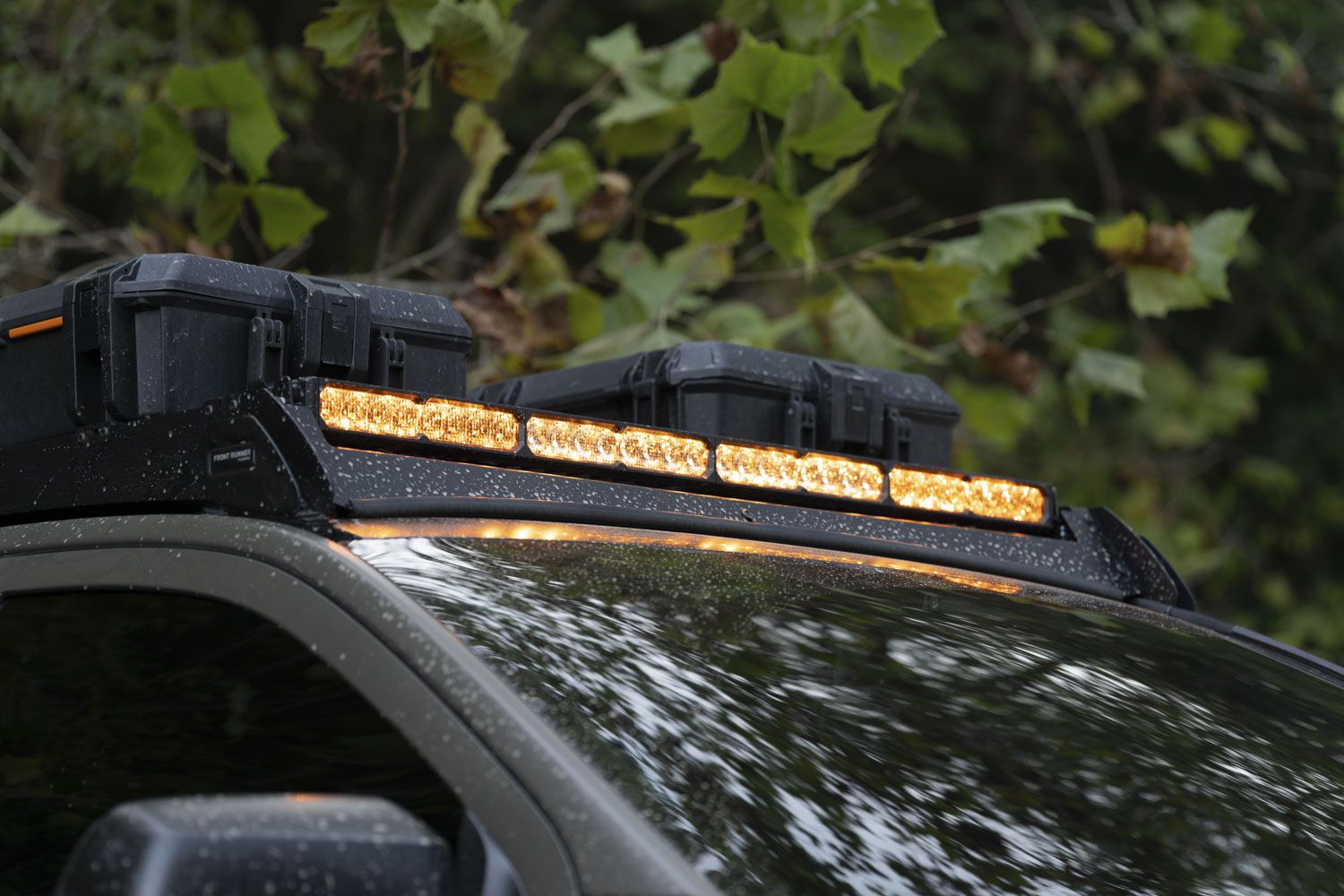

Diode Dynamics SS40 SAE/DOT White LED Light Bar (one)

$ 799.95 USD
Shipping calculated at checkout.
Choose Your Beam Pattern
Choose Your Power Level
Choose Your Model

Short Description

The Diode Dynamics SS40 White LED Light Bar delivers massive forward visibility and cutting-edge optical precision with up to 50,000 lumens of 6000K brilliance. Choose Sport or Pro power levels and beam patterns to match your driving style—all built tough and engineered in the USA for maximum reliability.

Delivery and Shipping

Domestic orders typically arrive within 3-7 business days, while international orders may take 7-14 business days. Please note that additional time may be required for items that are drop shipped or back-ordered.

Price Match Guarantee

We strive to offer competitive pricing and will price match qualifying competitors under certain conditions. Learn more here

Description

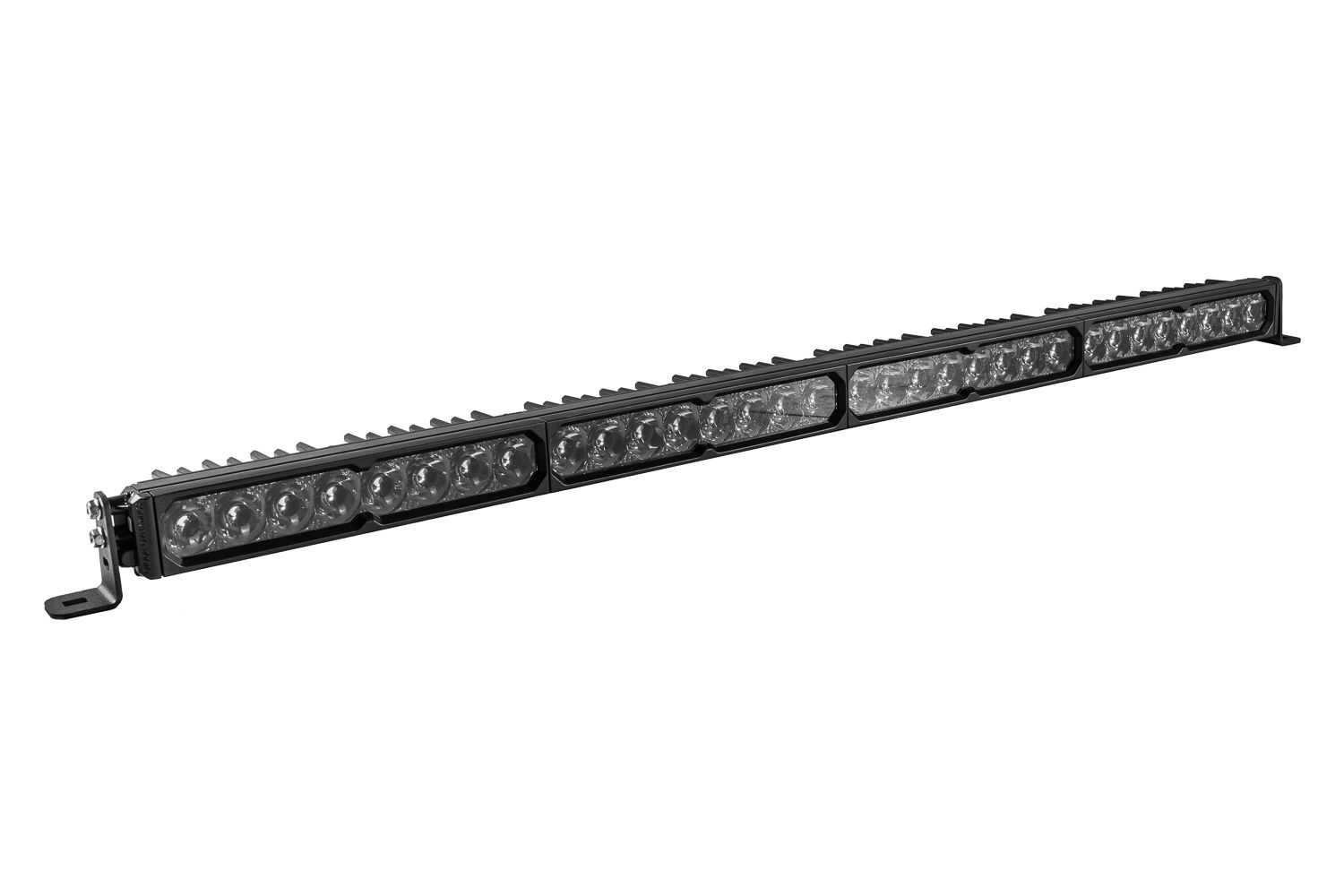

See further, drive faster, and dominate the night with the Diode Dynamics SS40 White LED Light Bar. Designed, tested, and built in the USA, this next-generation Stage Series bar combines cutting-edge optics, superior light control, and uncompromising durability for the ultimate off-road lighting upgrade.

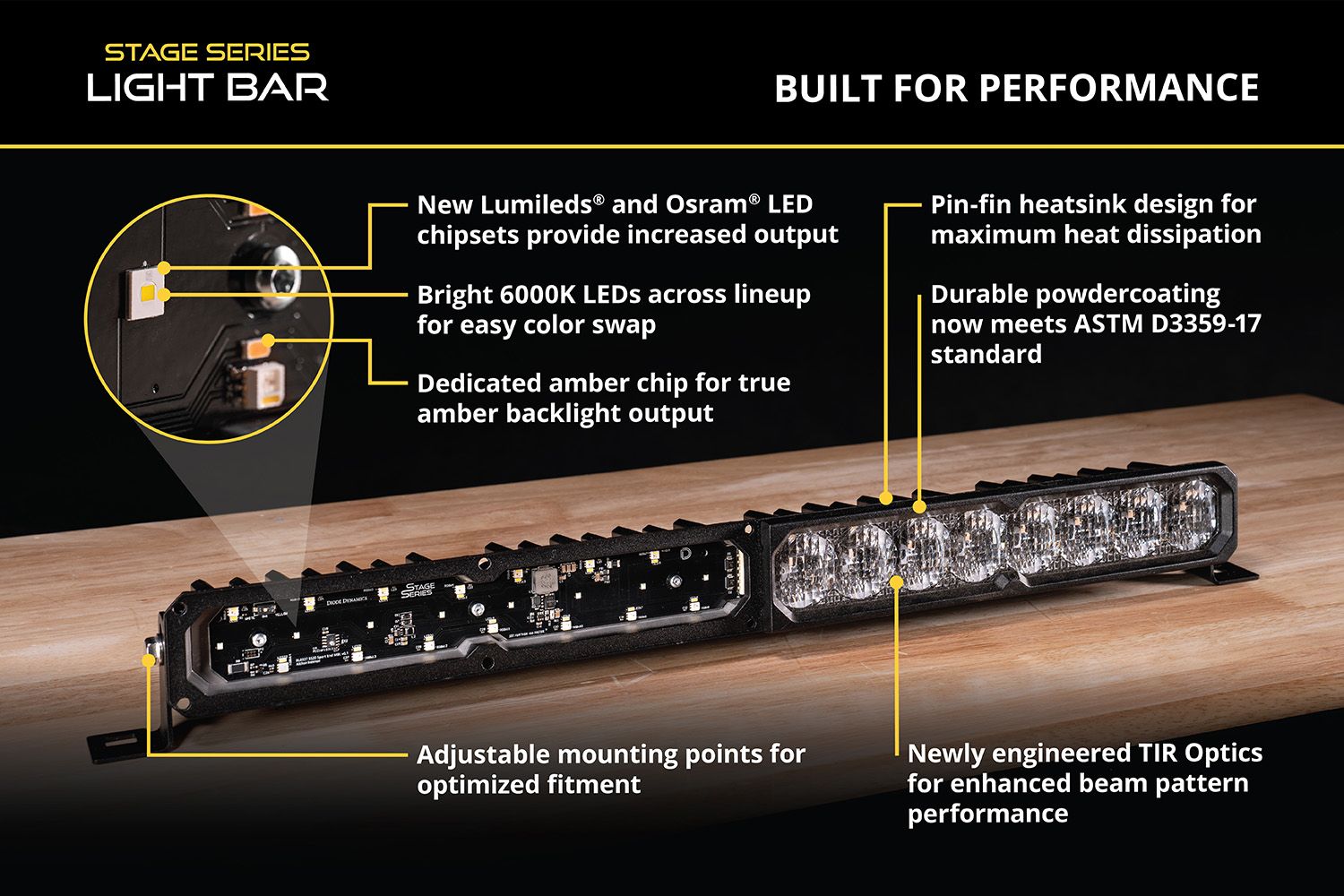

Featuring patented Total Internal Reflection (TIR) optics, the SS40 captures every lumen from each LED and focuses it precisely where you need it—eliminating wasted light and glare. The result? Sharper visibility, stronger intensity, and cleaner output that outperforms traditional reflectors.

Available in multiple beam patterns — Combo/Driving, Flood, SAE Driving, and Spot — the SS40 adapts perfectly to your terrain and driving needs. Choose the Sport (165W) for a balanced power-to-cost ratio or step up to the Pro (225W) for maximum light output with up to 50,176 lumens of 6000K pure white brilliance.

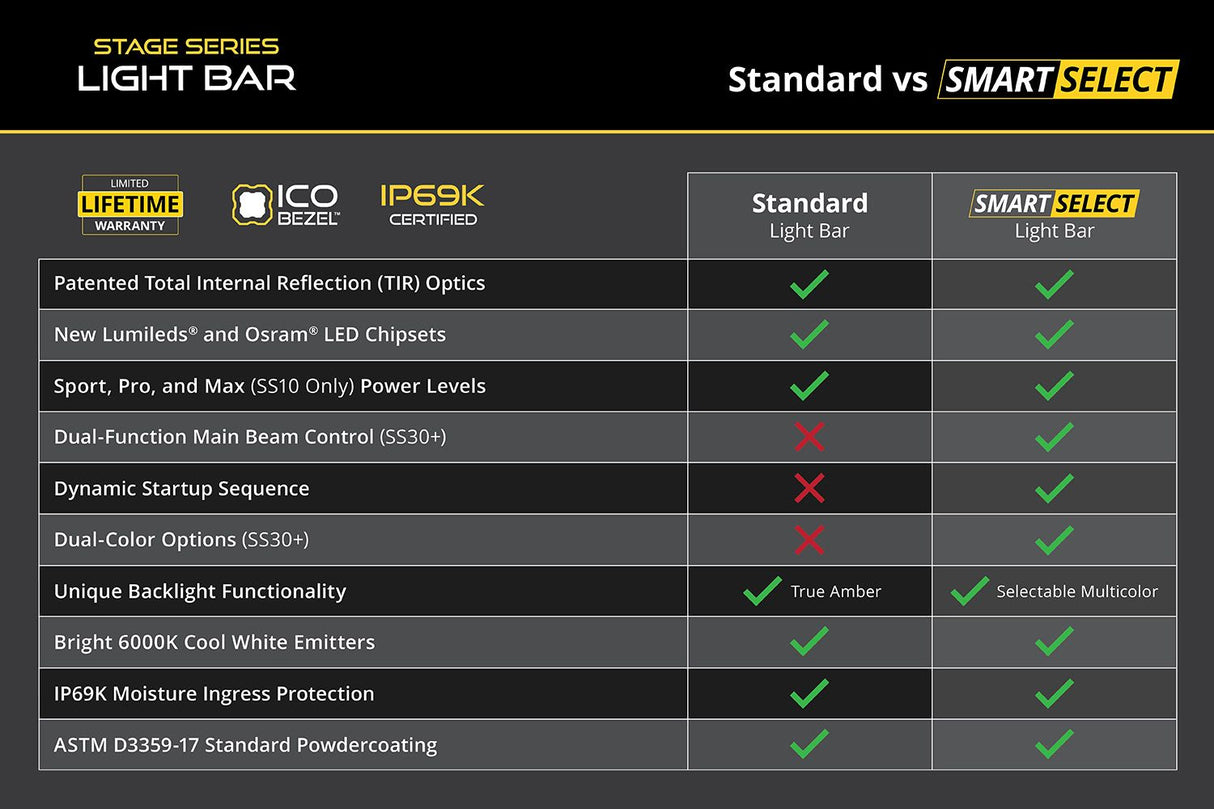

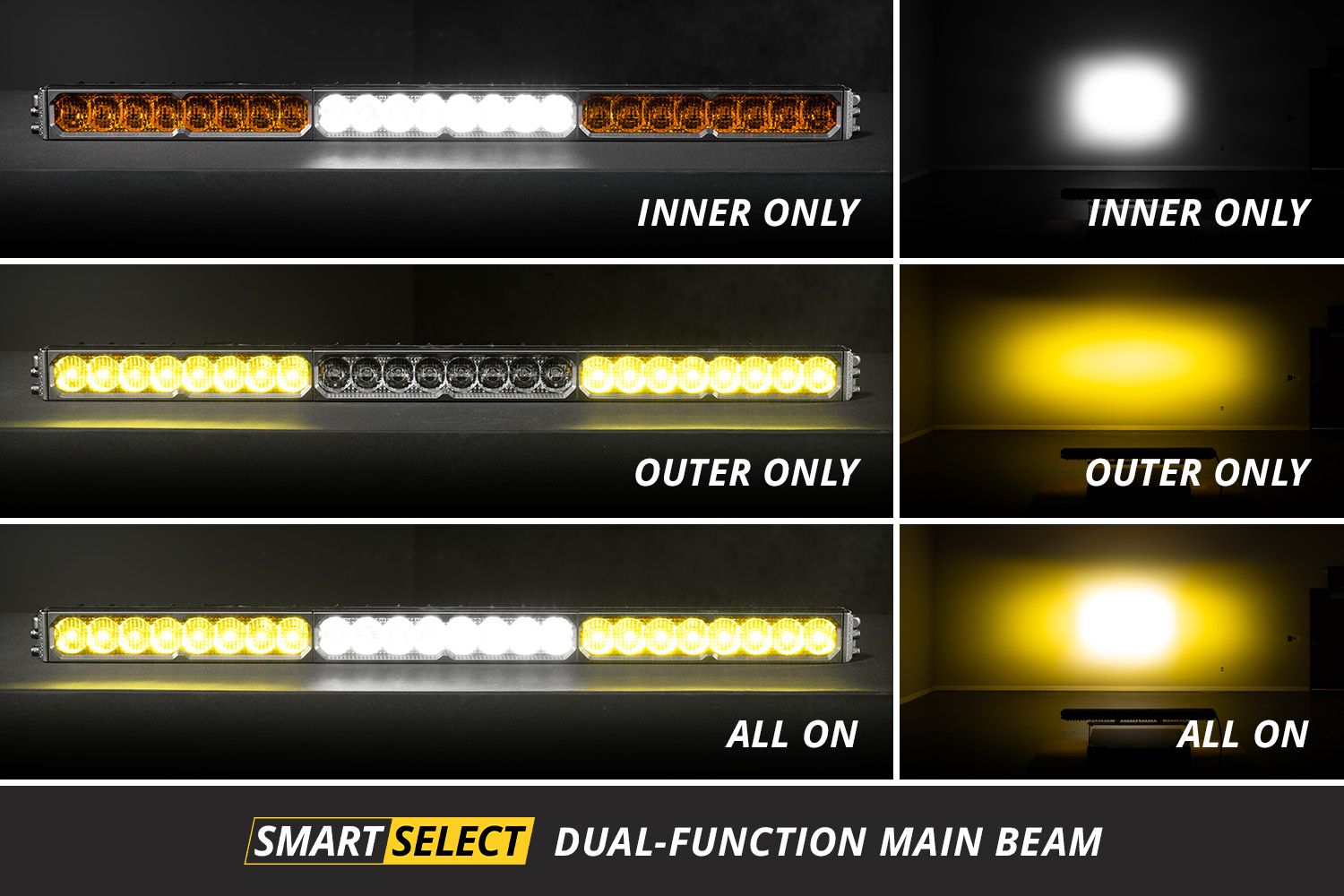

Upgrade to the SmartSelect model for dual-function beam control and an eight-color backlight system with a premium dynamic startup sequence. Easily toggle between inner, outer, or full-bar illumination modes by cycling power—no extra wiring or controllers needed.

Built for the toughest environments, the SS40 features a durable aluminum housing, impact-resistant polycarbonate lens, and an IP69K waterproof rating to withstand dust, mud, rain, and pressure washing. Whether you’re crawling through trails or blasting through open desert, the SS40 delivers unmatched performance and dependability.

Proudly engineered and assembled in the USA, the SS40 White LED Light Bar sets a new benchmark in efficiency, precision, and all-weather reliability.

Specifications

Vehicle Fitment: Universal – ideal for trucks, SUVs, off-road builds

Light Output:
Sport – 14,752 lm / Pro – 50,176 lm

Beam Pattern Options: Combo/Driving, Flood, SAE Driving, Spot

Color Temperature: 6000K White

Wattage: Sport – 165W / Pro – 225W

Operating Voltage: 9–30V

Current Draw (@12.8V): Sport – 12.90A / Pro – 17.58A

Operating Temperature: -40°F to 185°F (-40°C to 85°C)

LED Type: Osram Ostar Projection Compact / Lumileds Automotive-Grade

Lens Material: Polycarbonate

Housing Material: Aluminum with Copper PCB

Mounting Brackets: Stainless Steel

Cooling Method: Passive Heatsink

Intrusion Rating: IP69K Waterproof

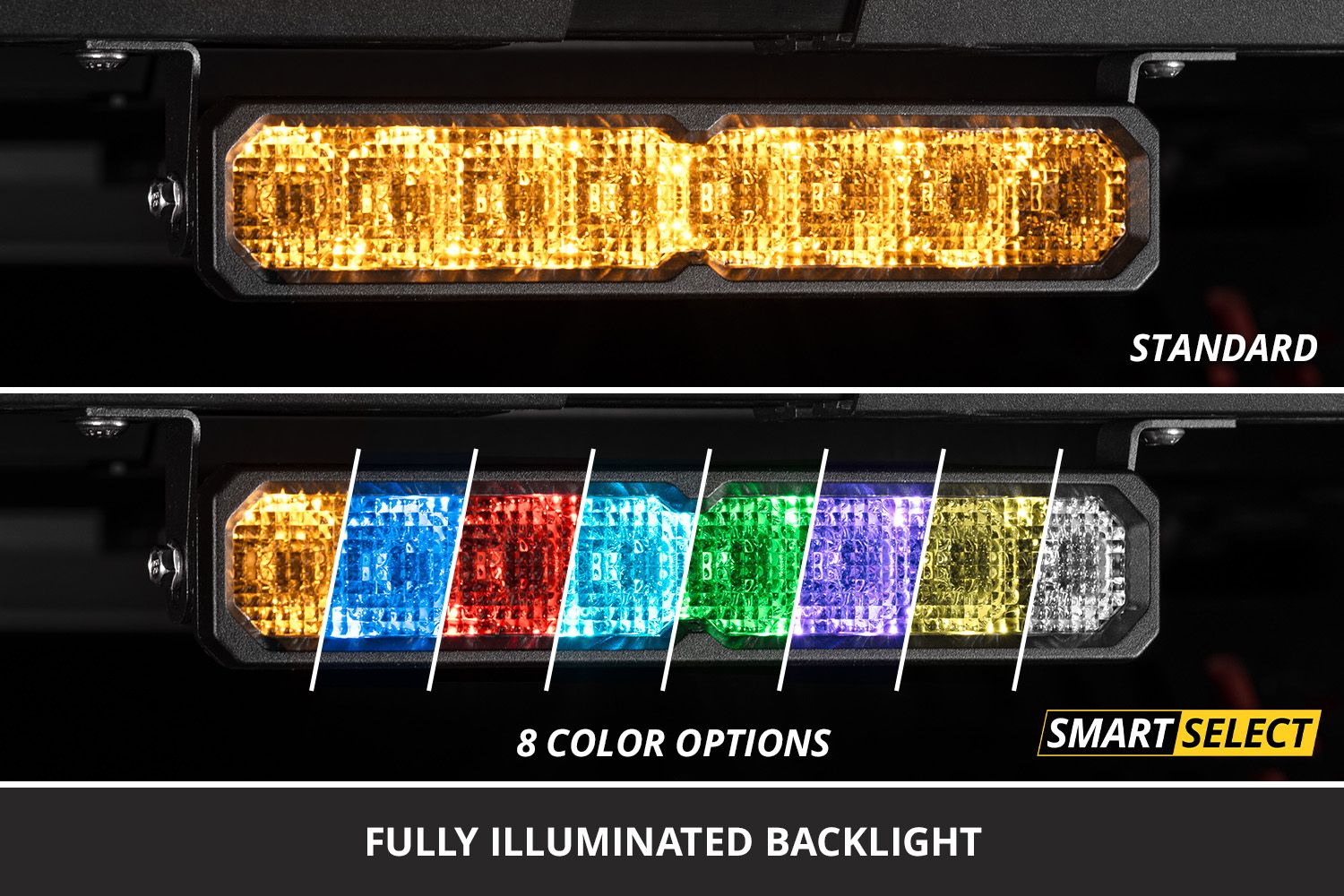

Backlight Color: White (Standard) / 8-Color Selectable (SmartSelect)

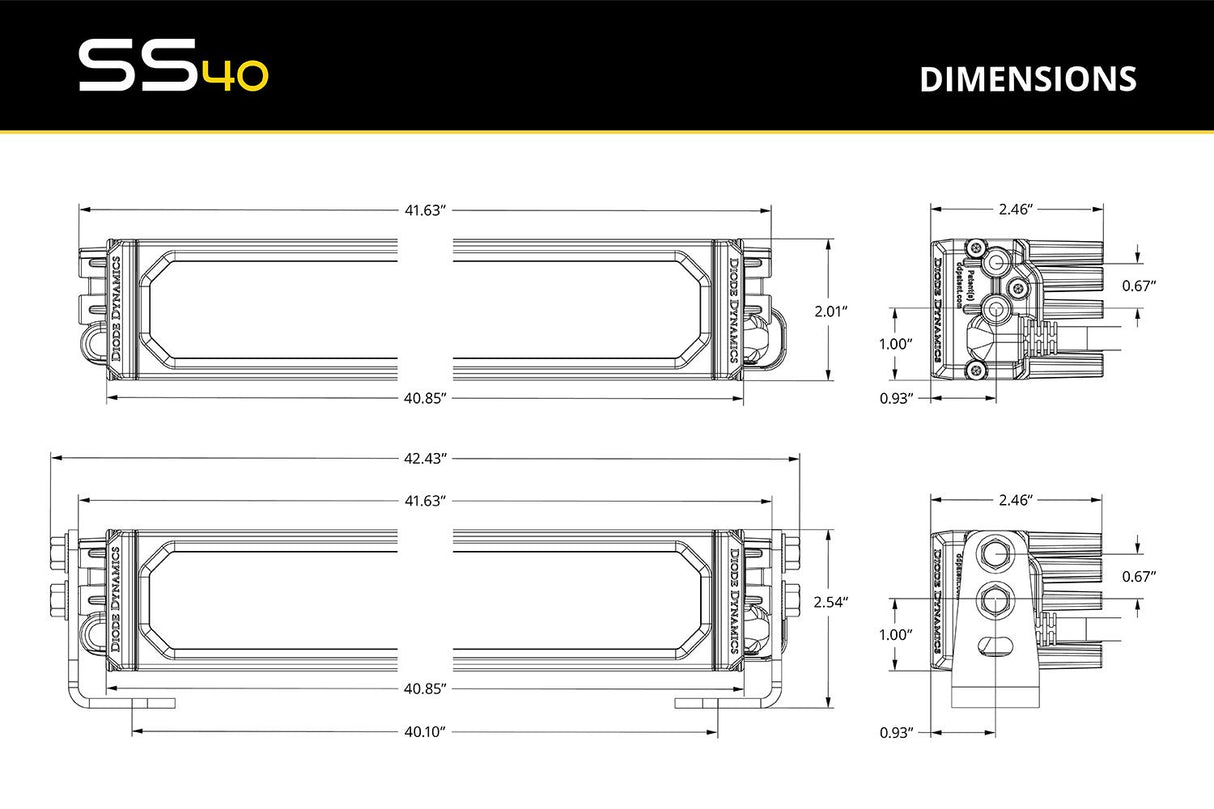

Dimensions (in): 2.01 x 41.63 x 2.46

Warranty: Limited Lifetime Warranty

Origin: Made in USA with Global Materials
