Diode Dynamics SS30 SAE/DOT Yellow LED Light Bar (one)

$ 599.95 USD
Shipping calculated at checkout.
Choose Your Beam Pattern
Choose Your Power Level

Short Description

The Diode Dynamics SS30 Yellow LED Light Bar delivers unmatched visibility and performance. Featuring advanced TIR optics, 3000K yellow output, and your choice of Sport or Pro power levels, it cuts through fog, rain, and snow with precision and reliability. Built tough and backed by a lifetime warranty.

Delivery and Shipping

Domestic orders typically arrive within 3-7 business days, while international orders may take 7-14 business days. Please note that additional time may be required for items that are drop shipped or back-ordered.

Price Match Guarantee

We strive to offer competitive pricing and will price match qualifying competitors under certain conditions. Learn more here

Description

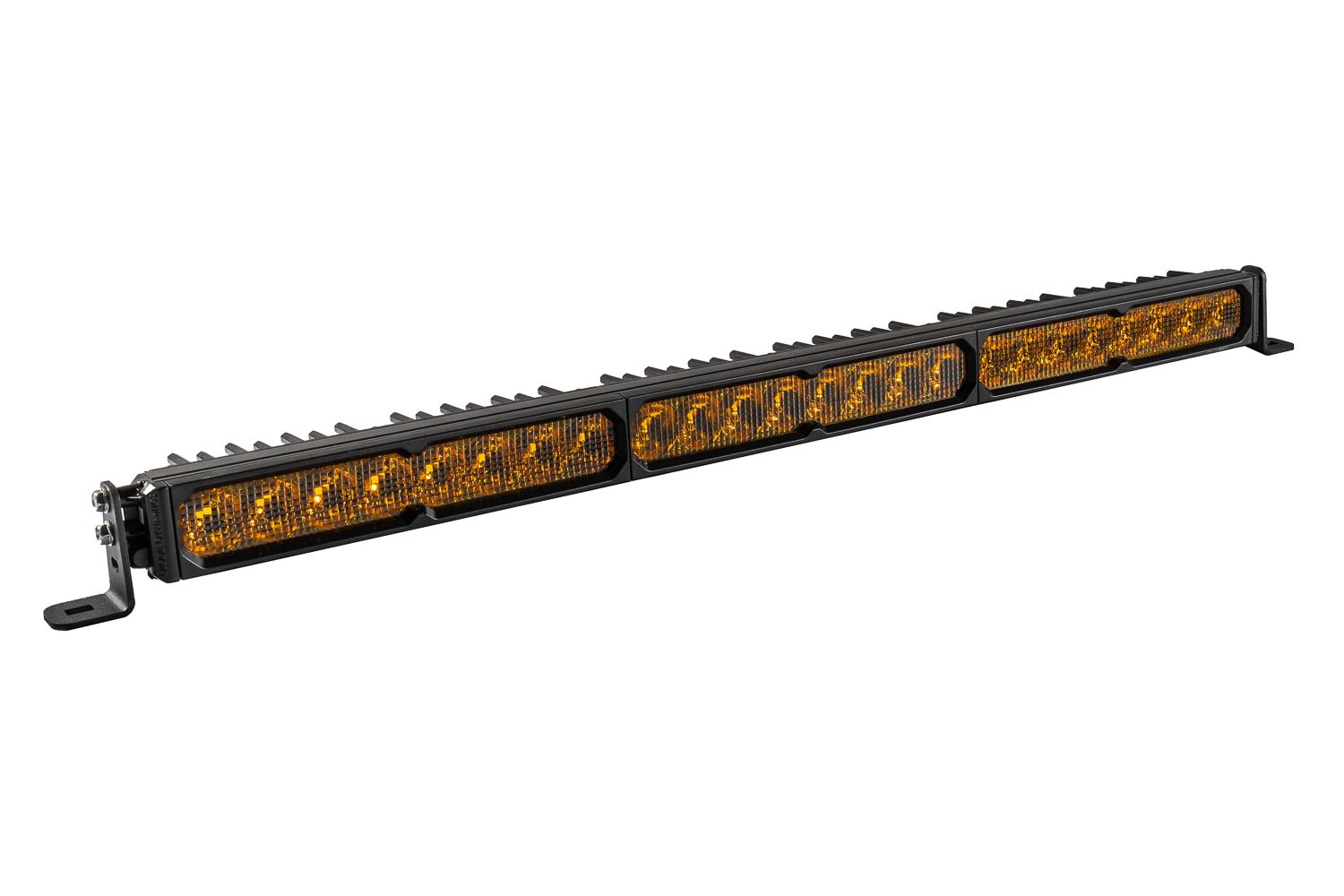

See farther and drive with confidence using the Diode Dynamics SS30 Yellow LED Light Bar. Designed, tested, and assembled in the USA, this advanced Stage Series light bar redefines what high-performance lighting can do.

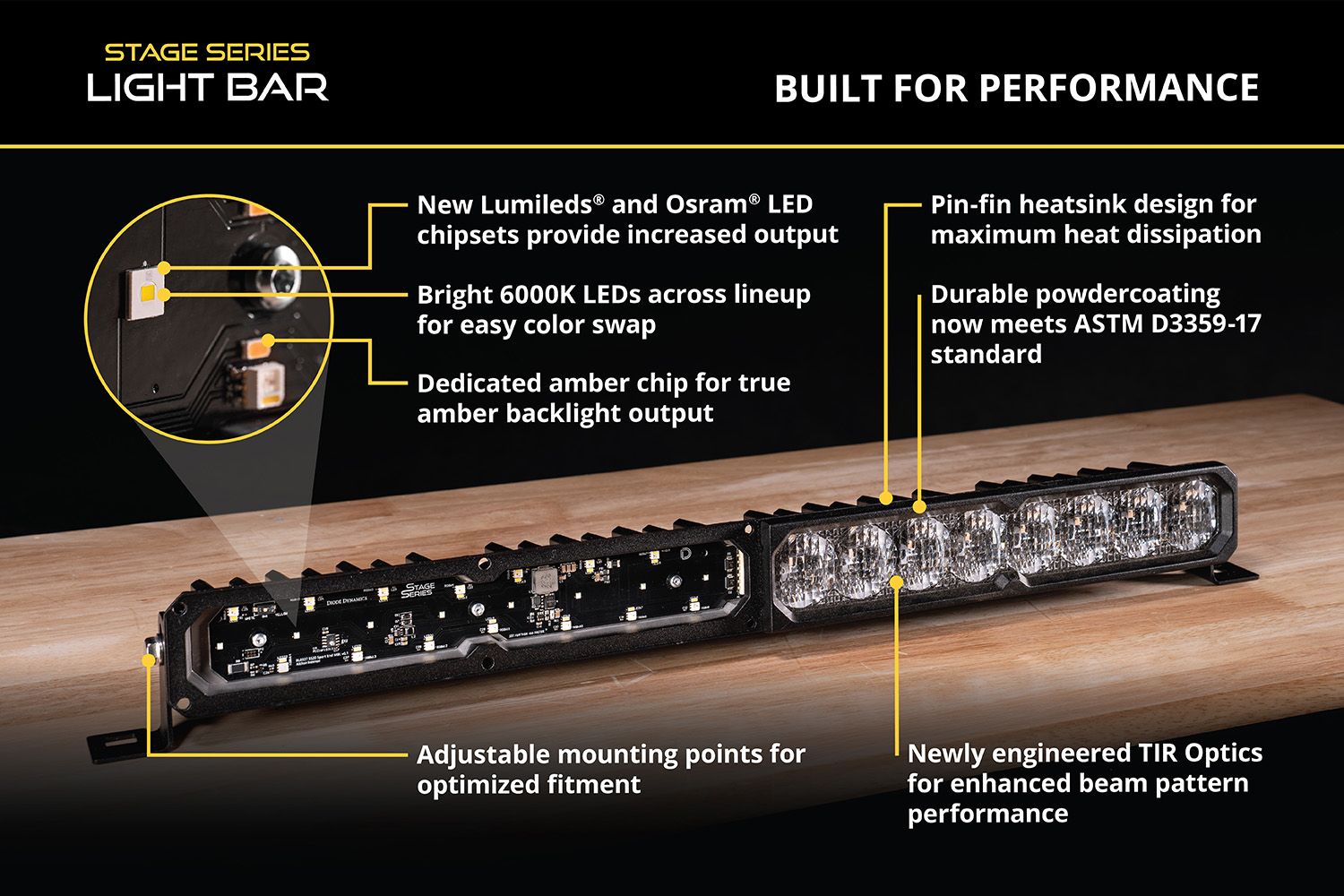

Featuring patented TIR (Total Internal Reflection) optics, the SS30 harnesses every lumen of light and directs it exactly where you need it—on the trail, job site, or open road. The 3000K yellow output improves contrast and visibility in fog, rain, and snow, making it ideal for all-weather performance.

Choose from multiple beam patterns — Combo/Driving, Flood, SAE Driving, or Spot — to match your setup. Select the Sport (120W) for balanced performance or the Pro (165W) for extreme brightness and throw distance.

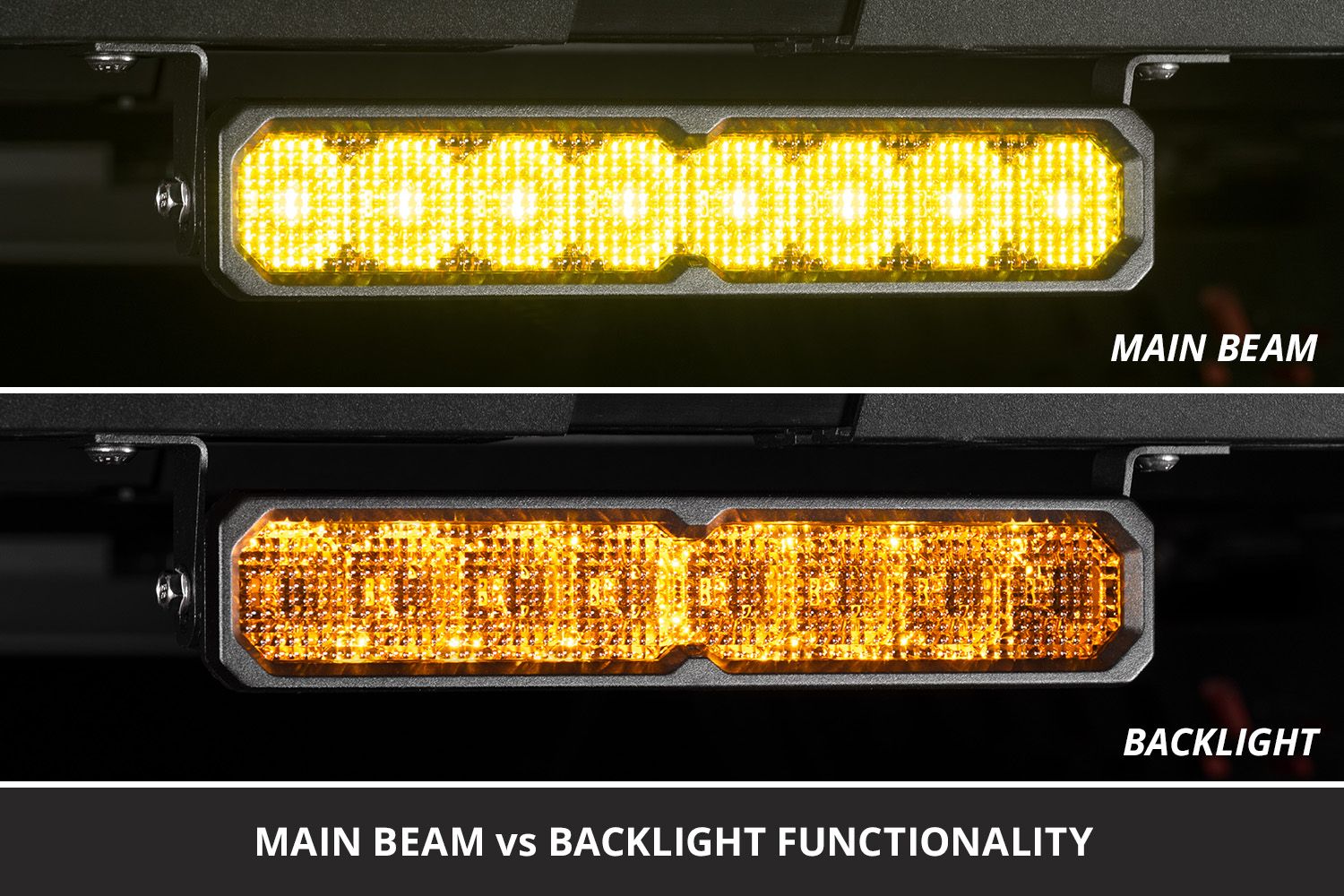

Built to handle harsh conditions, the SS30 features a rugged aluminum housing, polycarbonate lens, and an IP69K waterproof rating. Its integrated amber backlight adds a distinctive look while the precision-engineered optics ensure maximum efficiency with minimal glare.

With a sleek profile, reliable components, and a limited lifetime warranty, the Diode Dynamics SS30 Yellow LED Light Bar is built to deliver long-lasting performance and a bold, distinctive appearance wherever your adventures take you.

Specifications

Vehicle Fitment: Universal – ideal for trucks, SUVs, off-road builds

Light Output: Sport – 11,064 lm / Pro – 37,632 lm

Beam Pattern Options: Combo/Driving, Flood, SAE Driving, Spot

Color Temperature: 3000K Yellow

Wattage: Sport – 120W / Pro – 165W

Operating Voltage: 9–30V

Current Draw (@12.8V): Sport – 9.38A / Pro – 12.90A

Operating Temperature: -40°F to 185°F (-40°C to 85°C)

LED Type: Osram Ostar Projection Compact / Lumileds Automotive-Grade

Lens Material: Polycarbonate

Housing Material: Aluminum with Copper PCB

Mounting Brackets: Stainless Steel

Cooling Method: Passive Heatsink

Intrusion Rating: IP69K Waterproof

Backlight Color: Amber

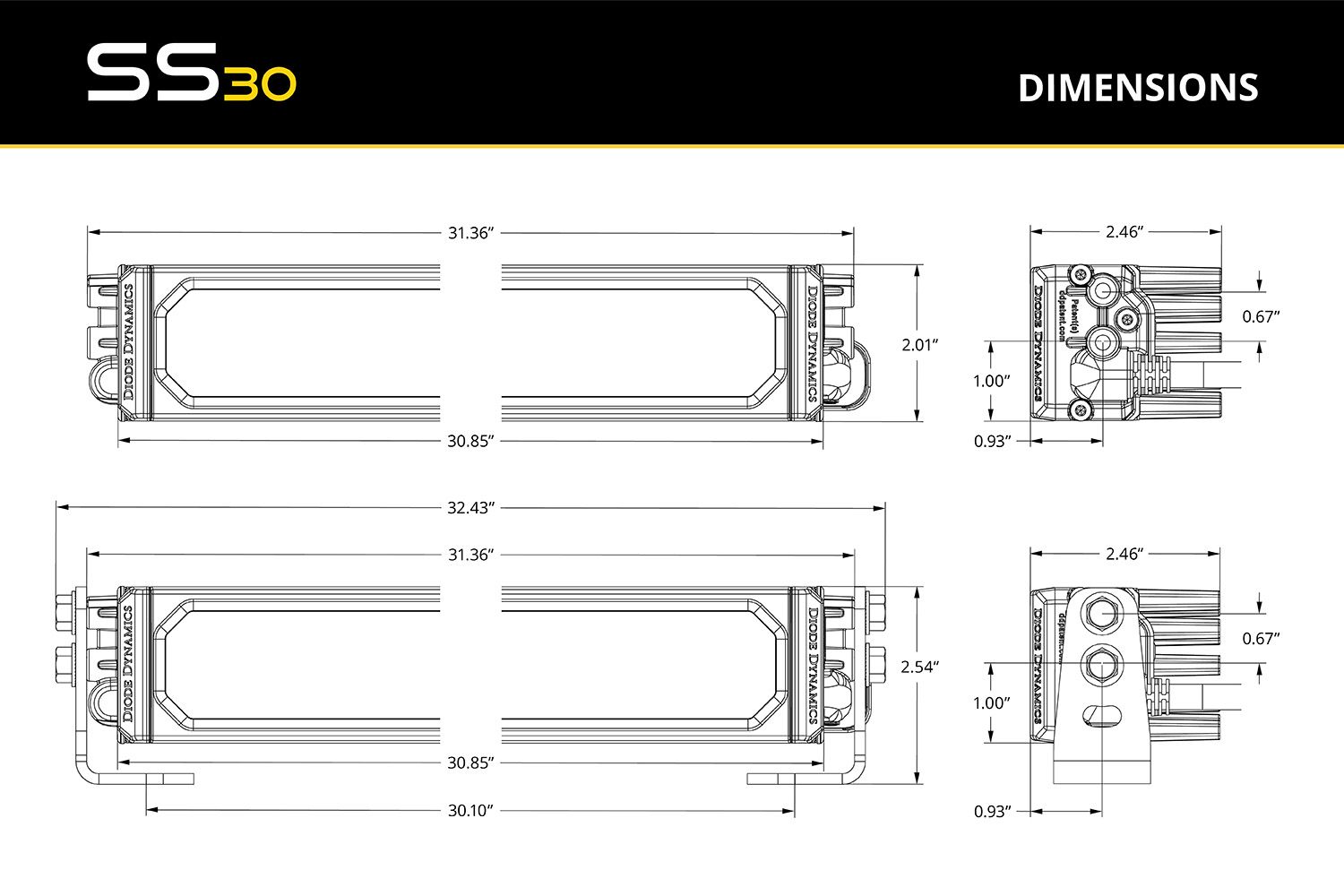

Dimensions (in): 2.01 x 31.63 x 2.46

Warranty: Limited Lifetime Warranty

Origin: Made in USA with Global Materials

Install Instructions
