CrystaLux Triple Fog Light Wiring Harness, 6x DT 4-Pin Connectors (Diode Dynamics)

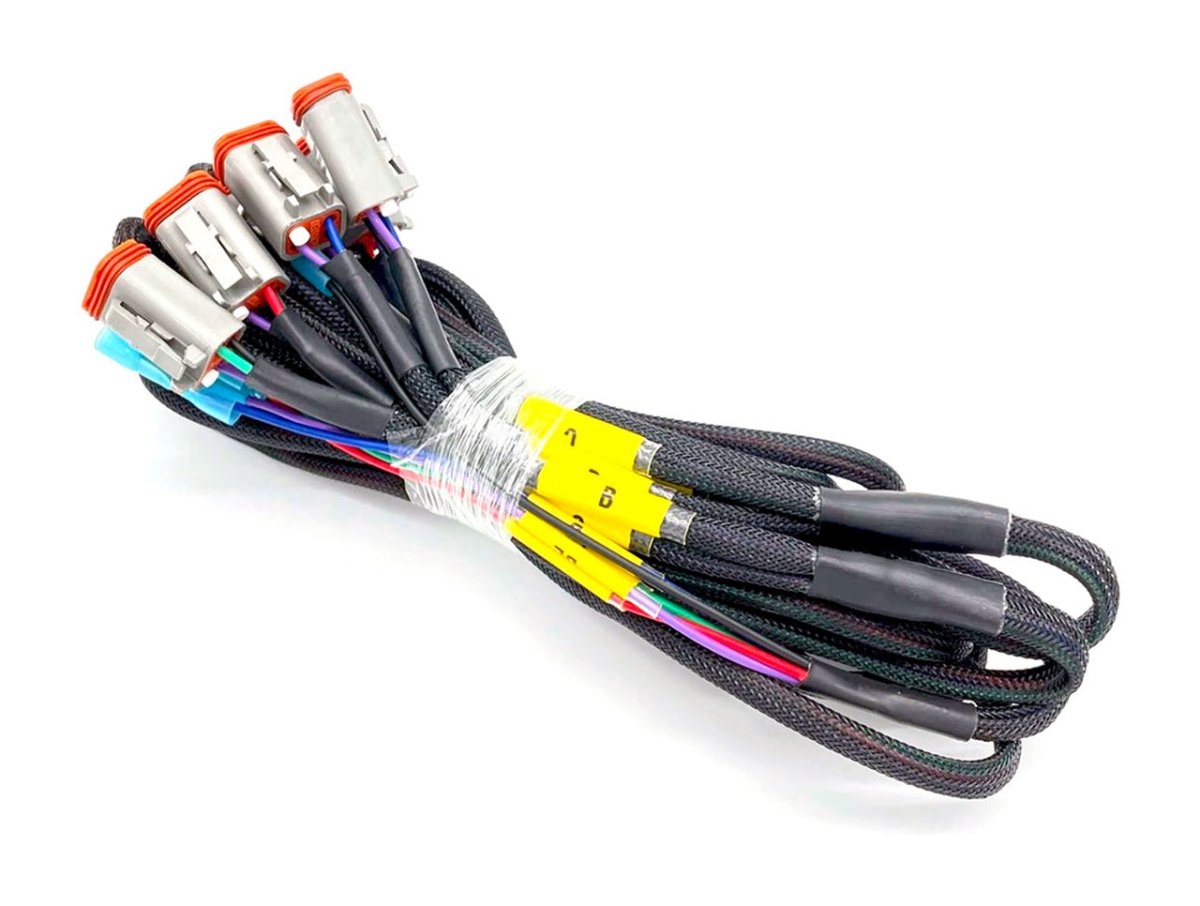

This wiring harness is designed for triple fog light kits and is cut to length to ensure a perfect fit. It's designed to power 3 pairs of auxiliary lights from your OEM aux switches.
Using DT style connectors (found on Diode Dynamics, Rigid Industries, KC HiLiTES, Vision X, and most lights) this harness ensures a simple installation for your triple fog light kit.

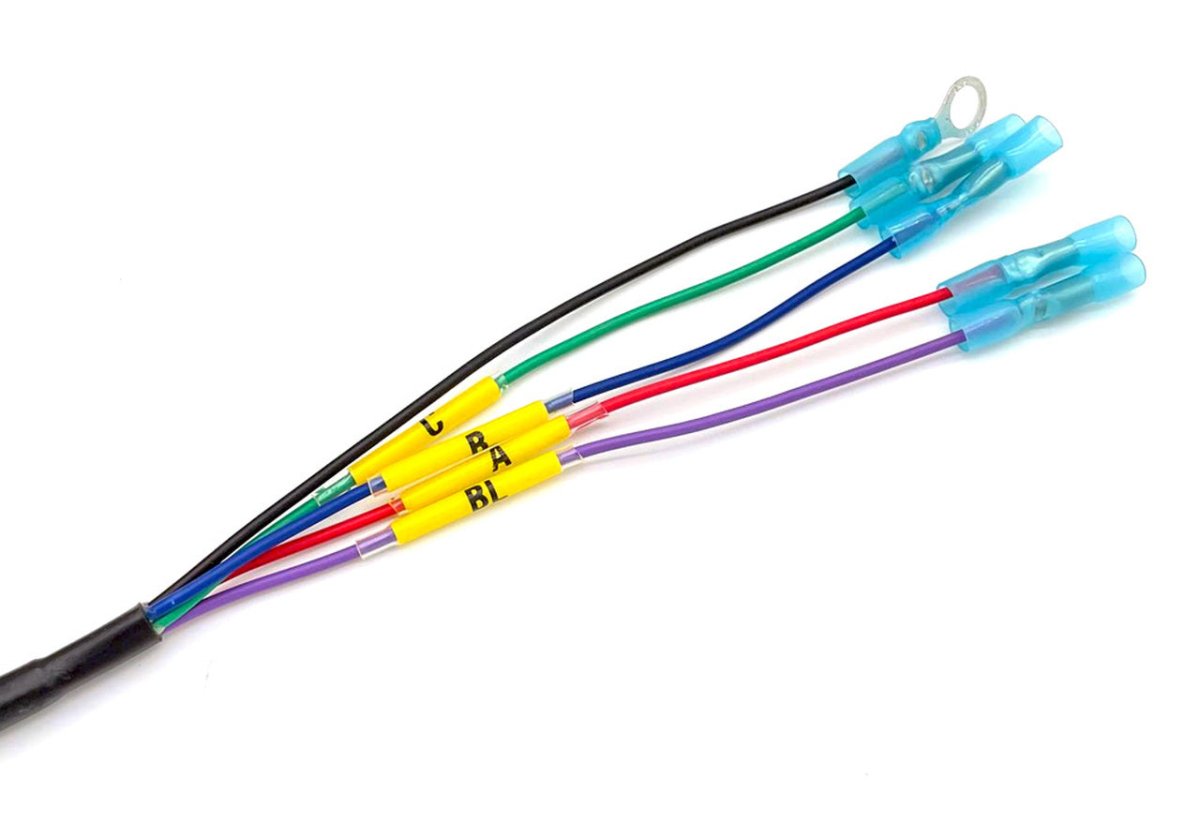

There is both driver's side (3 lights) and passenger's side (3 lights) connections for each pair of lights, which are labeled to ensure pairs are matched together. A weatherproof/heat shrinkable connector is pre-installed on the end of the wire (which will be crimped onto your OEM aux wires).

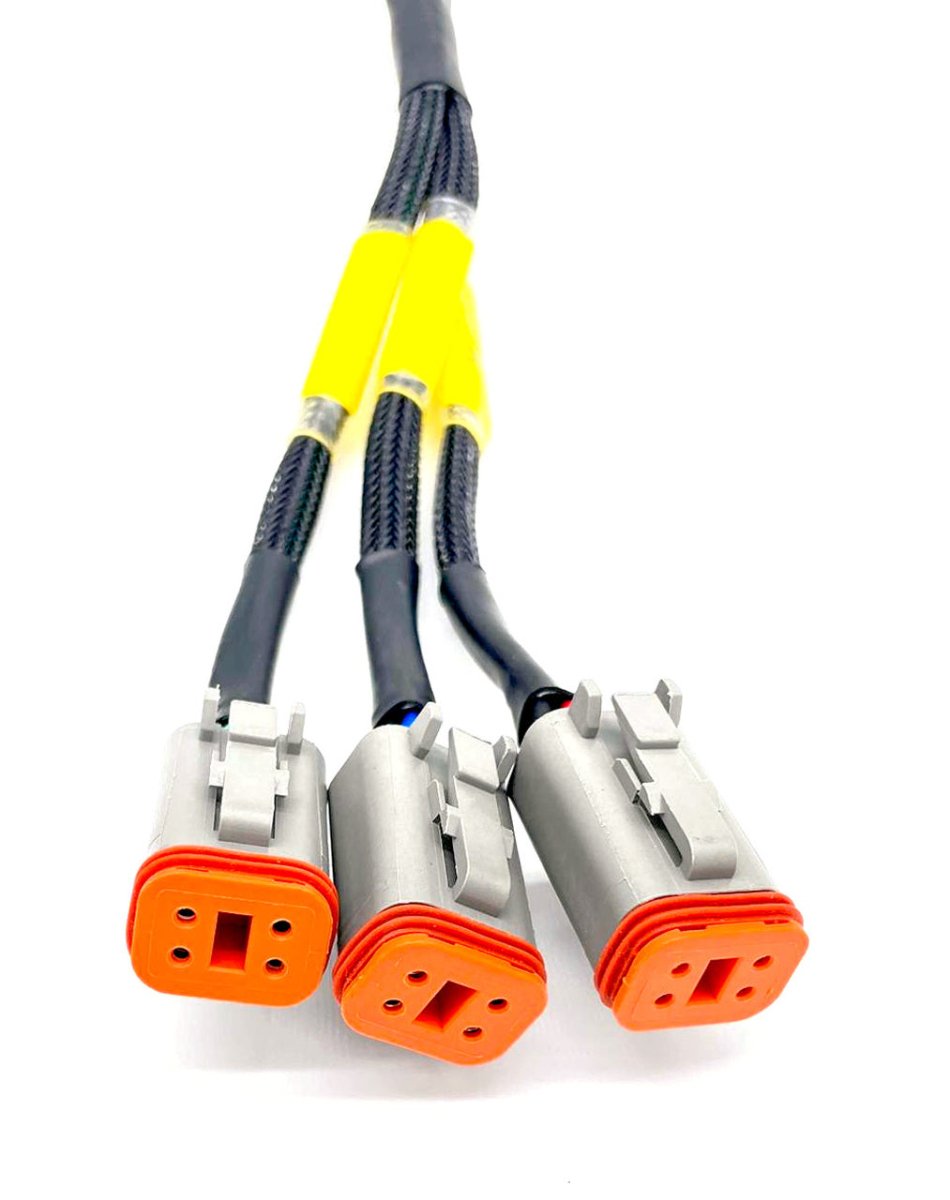

Each side features 3x DT 4-pin connectors which will provide power to the light + back-light control on the 4-Pin connected lights (commonly found on Diode Dynamics lights with back-lighting). The back-light wires are all tied together with 1 wire being left at the end to crimp onto your OEM aux wires.
This kit will utilize 4 of your OEM aux switches (3 for the lights, 1 for the back-light feature).
EXAMPLE CONFIGURATION (EACH SIDE)
3x Diode Dynamics SSC2 w/Amber Back Light
1x Diode Dynamics SSC2 w/Amber Back Light
2x Diode Dynamics SS3 w/Amber Back Light
3x Diode Dynamics SS3 w/Amber Back Light
