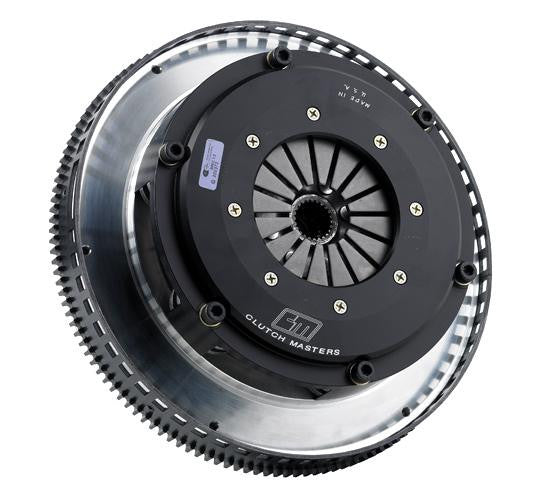

Clutch Masters 08-10 EVO X 2.0L Turbo 5 spd Street 8.5" Twin Disc Clutch Kit w/ Steel FW Pull Type
Clutch Masters Twin Disc systems are pure racing technology that also works well in high performance street applications. They are designed to hold tremendous horsepower and torque ratings, while retaining a very smooth operation. By slightly increasing the clamping force of the pressure plate and adding to the square inches of usable disc area, CM Twin Discs significantly increase clamping values with only a 25-50% increase in pedal pressure depending on the application. The cover assembly is machined from billet aluminum with 25% more tensile strength than the competition’s cast unit.
The flywheel is machined from billet 6061-T6 aluminum to meet SFI spec 1.2 for competition in NHRA, NDRA, IDRC, IHRA, SCCA and NASA. Each aluminum flywheel includes a replaceable heat shield. Steel flywheels are also available on select applications.
*725 SERIES* – (7.25” Twin Disc)
The 725 series is a smaller diameter assembly, which creates less rotating mass and offering quicker, and smoother shifting with much better throttle response.
*850 SERIES* – (8.50” Twin Disc)
The 850 series is a larger diameter assembly, which is designed for high horsepower applications that require smooth engagement, quiet operation and high clamp load.
*All systems include:*
* Cover Assembly with attached Diaphragm
* Pressure Plate Ring
* Two Discs
* One Mid Plate
* Billet Aluminum Flywheel
* Release Bearing
* Pilot Bearing (when applicable)
* Pressure Plate Bolts
