5.0 GPH/315 CC PER MINUTE WATER METHANOL INJECTION NOZZLE

Save 27%
$ 43.73
$ 31.99

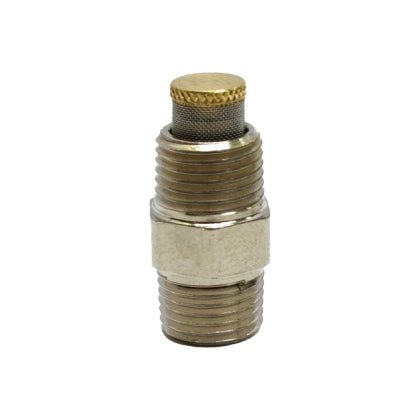

The Snow Performance Hyper-Sonic water-methanol injection nozzle is the worlds best selling and most advanced water-meth nozzle. Constructed out of 100% methanol resistant nickel plating, the patented Hyper-Sonic design spins the fluid to supersonic levels before forcing it through two venturi shaped orifices to create the Hyper-Sonic micron droplet mist that has become the industry leader in water-methanol technology. Complete with a removable 80 micron filter, the Hyper-Sonic nozzle can be cleaned and re-used on any application. To unlock power hidden within your water-methanol injection system replace your nozzles with Hyper-Sonic nozzles today! (1/8" NPT Threads)

Features Include:

  • .037" inch / .940 mm orifice
  • .120" recessed orifice
  • 60 degree spray pattern
  • Nickel plated brass
  • 7/16" wrench flat
  • Removable 80 micron filter
  • Size stamped on each nozzle
  • 1/8th NPT threads on both sides
  • 100% methanol compatible

Special Notes:

  • Nozzle flow rates are based at 100 psi.
  • 63 cc per minute is equal to 1 GPH
  • 1 cc is equal to 1 ml

Quick Jetting Guide:

100% water target 8-10% of fuel flow
50/50 mix target 15–20% of fuel flow
100% methanol target 20–25% of fuel flow

If you don't know fuel flow you can do the following.

Horsepower @ crank x .5  = CC jetting (pure water)
Horsepower @ crank x 1.0 = CC jetting (50/50 mix)
Horsepower @ crank x 1.5-2.0 = CC jetting (pure methanol)

For example. 1000 horsepower. You would use 500cc pure water, 1000cc 50/50 mix and between 1500-2000cc pure methanol. Keep in mind these are figures to start with and do not take into consideration all the variables that we have found to affect jetting size.
