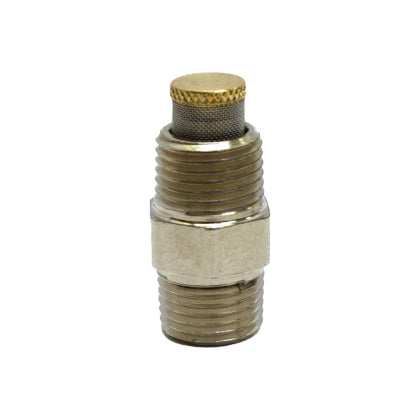

1.5 GPH/95 CC PER MINUTE WATER METHANOL INJECTION NOZZLE
The Snow Performance Hyper-Sonic water-methanol injection nozzle is the worlds best selling and most advanced water-meth nozzle. Constructed out of 100% methanol resistant nickel plating, the patented Hyper-Sonic design spins the fluid to supersonic levels before forcing it through two venturi shaped orifices to create the Hyper-Sonic micron droplet mist that has become the industry leader in water-methanol technology. Complete with a removable 80 micron filter, the Hyper-Sonic nozzle can be cleaned and re-used on any application. To unlock power hidden within your water-methanol injection system replace your nozzles with Hyper-Sonic nozzles today! (1/8" NPT Threads)
Features Include:
- .037" inch / .940 mm orifice
- .120" recessed orifice
- 60 degree spray pattern
- Nickel plated brass
- 7/16" wrench flat
- Removable 80 micron filter
- Size stamped on each nozzle
- 1/8th NPT threads on both sides
- 100% methanol compatible
Special Notes:
- Nozzle flow rates are based at 100 psi.
- 63 cc per minute is equal to 1 GPH
- 1 cc is equal to 1 ml
Quick Jetting Guide:
100% water target 8-10% of fuel flow
50/50 mix target 15–20% of fuel flow
100% methanol target 20–25% of fuel flow
If you don't know fuel flow you can do the following.
Horsepower @ crank x .5 = CC jetting (pure water)
Horsepower @ crank x 1.0 = CC jetting (50/50 mix)
Horsepower @ crank x 1.5-2.0 = CC jetting (pure methanol)
For example. 1000 horsepower. You would use 500cc pure water, 1000cc 50/50 mix and between 1500-2000cc pure methanol. Keep in mind these are figures to start with and do not take into consideration all the variables that we have found to affect jetting size.
