ATP Turbo | SKU:
GRT-TBO-C24

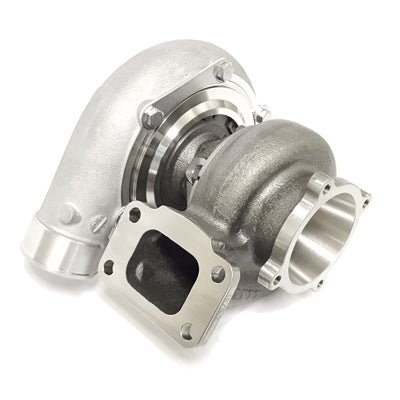

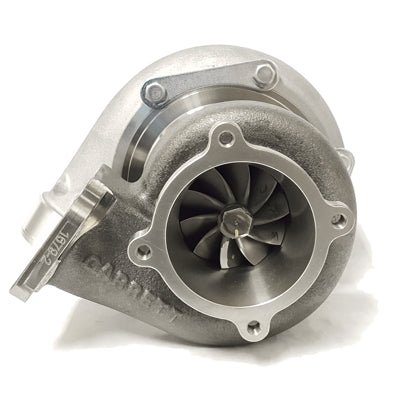

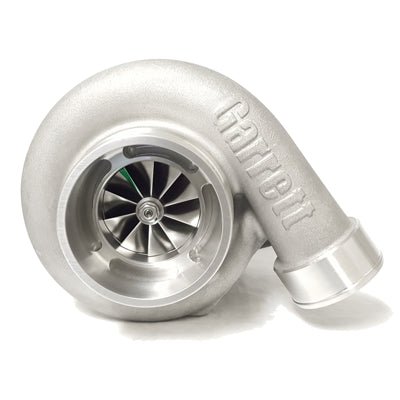

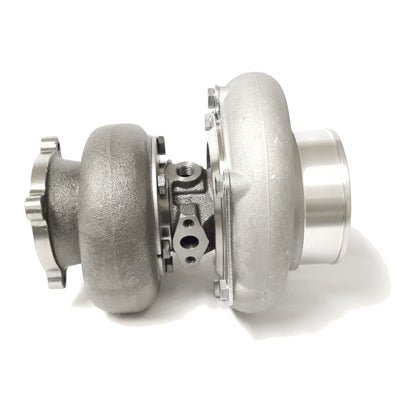

Gen2 GTX3582R DBB turbo w/ .82 A/R T3 Tbn Hsg, GT 4 BOLT 3" conical exit
Regular price
$ 2,381.40
Unit price
Shipping calculated at checkout.
Gen2 GTX3582R DBB turbo w/ .82 A/R T3 Tbn Hsg, GT 4 BOLT 3" conical exit is backordered and will ship as soon as it is back in stock.
Pickup available at SHOP HQ
Usually ready in 5+ days
Delivery and Shipping
Delivery and Shipping
Domestic orders for in-stock items typically arrive within 5-10 business days, while international orders for in-stock items may take 12–15 business days.
If an item is out of stock or back-ordered, we will contact you within 3–5 business days with an estimated time of arrival (ETA) or alternative options before the order is fulfilled.
Price Match Guarantee
Price Match Guarantee
We strive to offer competitive pricing and will price match qualifying competitors under certain conditions. Learn more here
Gen2 GTX3582R DBB turbo w/ .82 A/R T3 Tbn Hsg, GT 4 BOLT 3" co...
Regular price
$ 2,381.40
Unit price
Description
Description
- Garrett GEN2 GTX3582R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 850HP!
- .82 A/R
- Open (Undivided) T3 Turbine Housing (ATP-HSG-002)
- 3" GT 4 Bolt conical exit
- The Garrett GEN2 GTX3582R fits turbine housings for Garrett GT35 and GTX35 series turbochargers with a 68mm inducer and 84 trim turbine wheel.
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 66mm
- Compressor Wheel Exducer: 82mm
- Compressor Wheel Trim: 64
- Compressor Housing A/R: 0.70, T04S Frame: 4" in / 2.5" out
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
- Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R
- T4 Inlet and 3.0" GT V-Band Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-046
- T4 Divided Inlet and 3.0" V-Band Outlet. Available in 1.06 A/R Product Code: ATP-HSG-063
- T3 Inlet, Internally Gated, and 5 bolt Outlet. Available in .63, .82, or 1.06 A/R Product Code: ATP-HSG-037
- T3 Divided Inlet and 3.0" V-Band Outlet. Available in .82 A/R, 1.06 A/R
- TiAL Stainless Steel V-Band Inlet & Outlet. Available in .63 A/R, .82 A/R, 1.03 A/R
- Additional turbine housing options available in the
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- T3 Inlet Weld Flange (Stainless Steel): Product Code: ATP-FLS-038 (ATP-FLS-001 -mild steel)
- Gasket, T3 Turbine Inlet - UNDIVIDED: Product Code: GRT-GSK-005
- Discharge Flange GT 4 Bolt 3" (Stainless Steel): Product Code: ATP-FLS-085 (ATP-FLS-013 -mild steel)
- Gasket, Downpipe (Turbine outlet) Gasket, "GT 4 Bolt 3" opening: Product Code: ATP-GSK-018
