Diode Dynamics

Diode Dynamics SS3 Pro Type X Kit ABL - White SAE Fog

$ 499.95
Shipping calculated at checkout.

Short Description

Upgrade your factory fog lights with the Diode Dynamics SS3 SAE Type X Fog Light Kit. Featuring advanced TIR optics, SAE J583 road-legal output, and a true plug-and-play installation, this kit delivers dramatically improved visibility with a factory-style fit and finish.

Pickup available at Panda Warehouse

Usually ready in 5+ days

Delivery and Shipping

Domestic orders typically arrive within 3-7 business days, while international orders may take 7-14 business days. Please note that additional time may be required for items that are drop shipped or back-ordered.

Price Match Guarantee

We strive to offer competitive pricing and will price match qualifying competitors under certain conditions. Learn more here

Description

The Diode Dynamics SS3 SAE Type X Fog Light Kit is engineered to provide maximum performance while maintaining a clean OEM-style appearance. Designed as a direct replacement for compatible factory fog light housings, this kit includes custom Type X mounting brackets and vehicle-specific wiring adapters for a simple bolt-on installation — no cutting, splicing, or modifications required.

At the core of the SS3 system is advanced Total Internal Reflection (TIR) optic technology. Unlike traditional reflector-based fog lamps that lose usable light to glare and internal reflection, the SS3 optic captures and precisely directs nearly all emitted light where it’s needed. The result is improved efficiency, higher usable intensity, and reduced scatter.

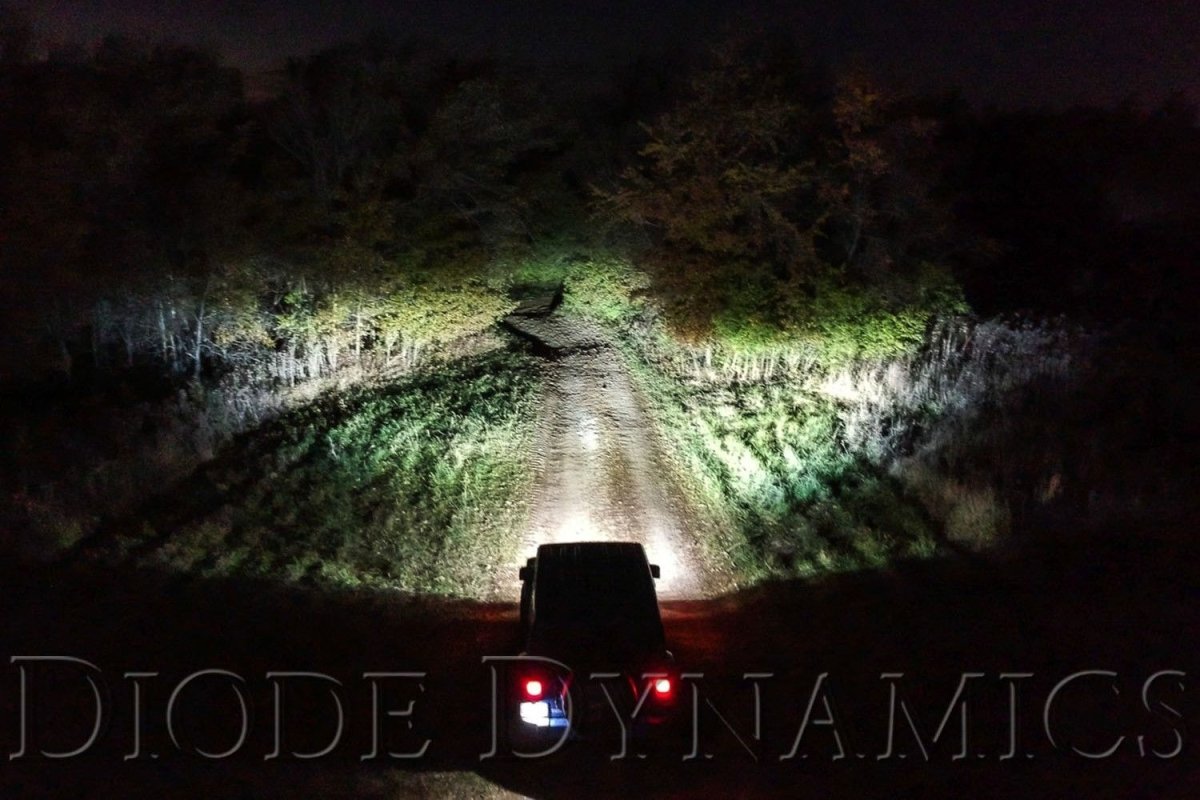

The SAE Fog beam pattern utilizes Diode Dynamics’ FineLine optic design to produce a wide 80° horizontal spread with controlled vertical cutoff for optimal road illumination. When installed and aimed correctly, this kit meets SAE J583 Foglamp standards, making it compliant for legal on-road use.

Pro (36W) – Significantly increased output and intensity

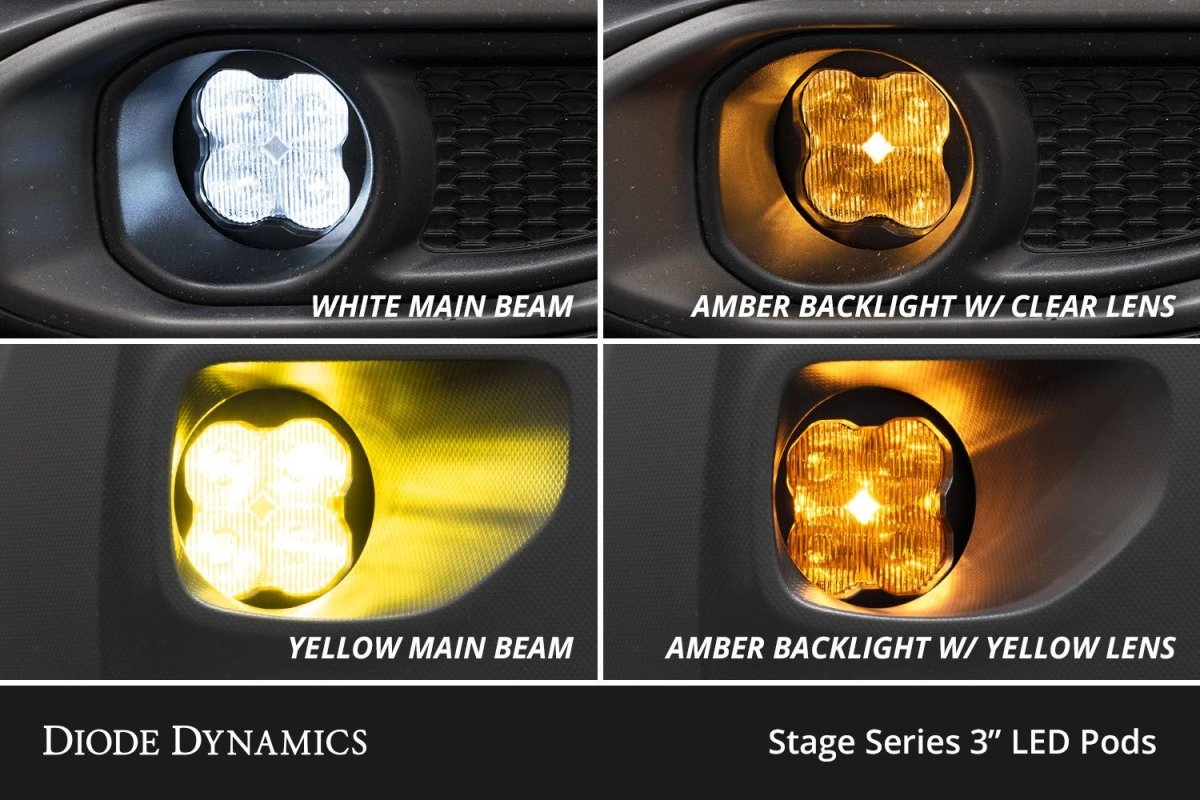

Available in Cool White (6000K) for crisp, modern output.

Each pod is built with a powder-coated aluminum housing, polycarbonate lens, Deutsch DT connectors, and an IP69K waterproof rating. Designed and assembled in the USA, this kit is backed by Diode Dynamics’ limited lifetime warranty for long-term reliability.

Specifications

Vehicle Fitment: Type X fog lamp replacement applications — known fitments include Subaru Legacy (2008–2009 Limited & GT Limited), Subaru WRX/STI (2011–2014 Sedan & Wagon); replaces OEM 84501AG130 & 84501AG120 (Vehicles without factory fogs may require additional wiring).

Max Lumens Output:

• Pro White: 3,000 lm per pod

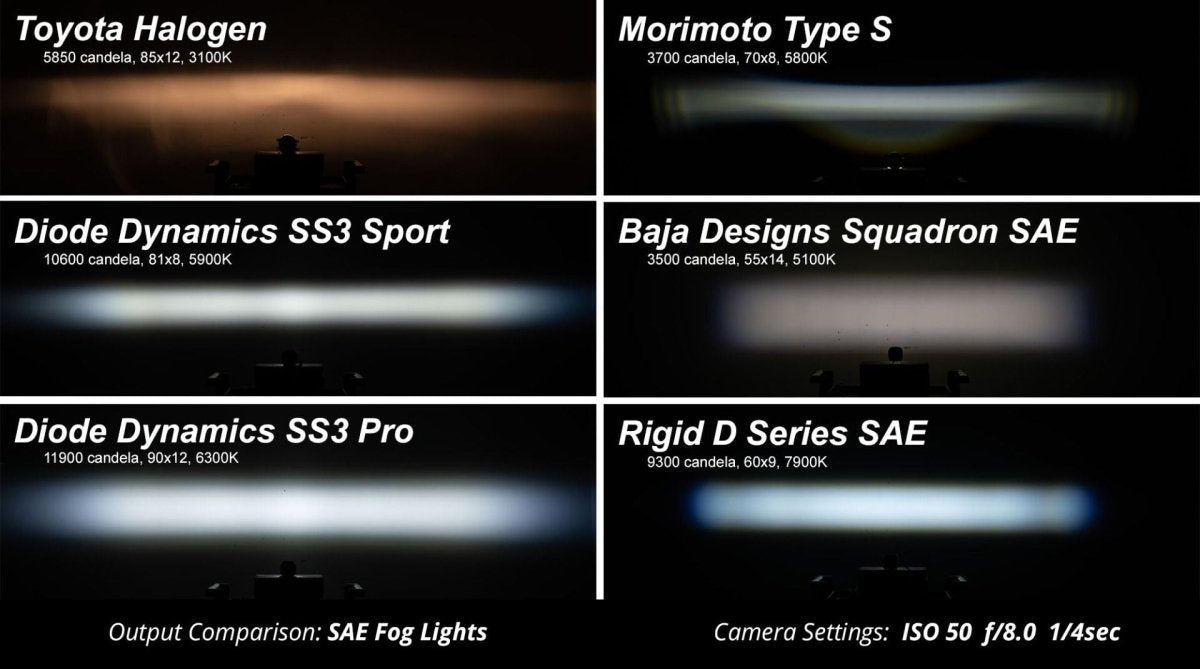

Beam Pattern: SAE Fog (80° × 8° spread) — road-legal foglamp pattern designed to fully illuminate foreground and roadside.

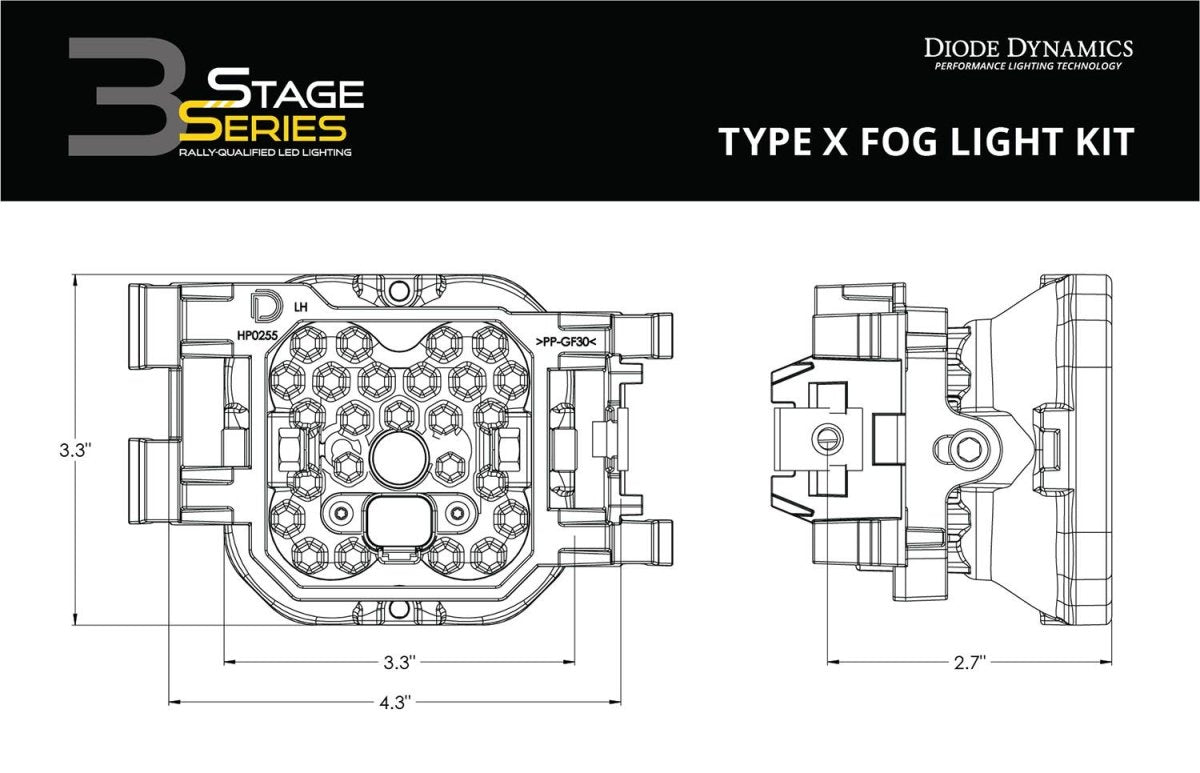

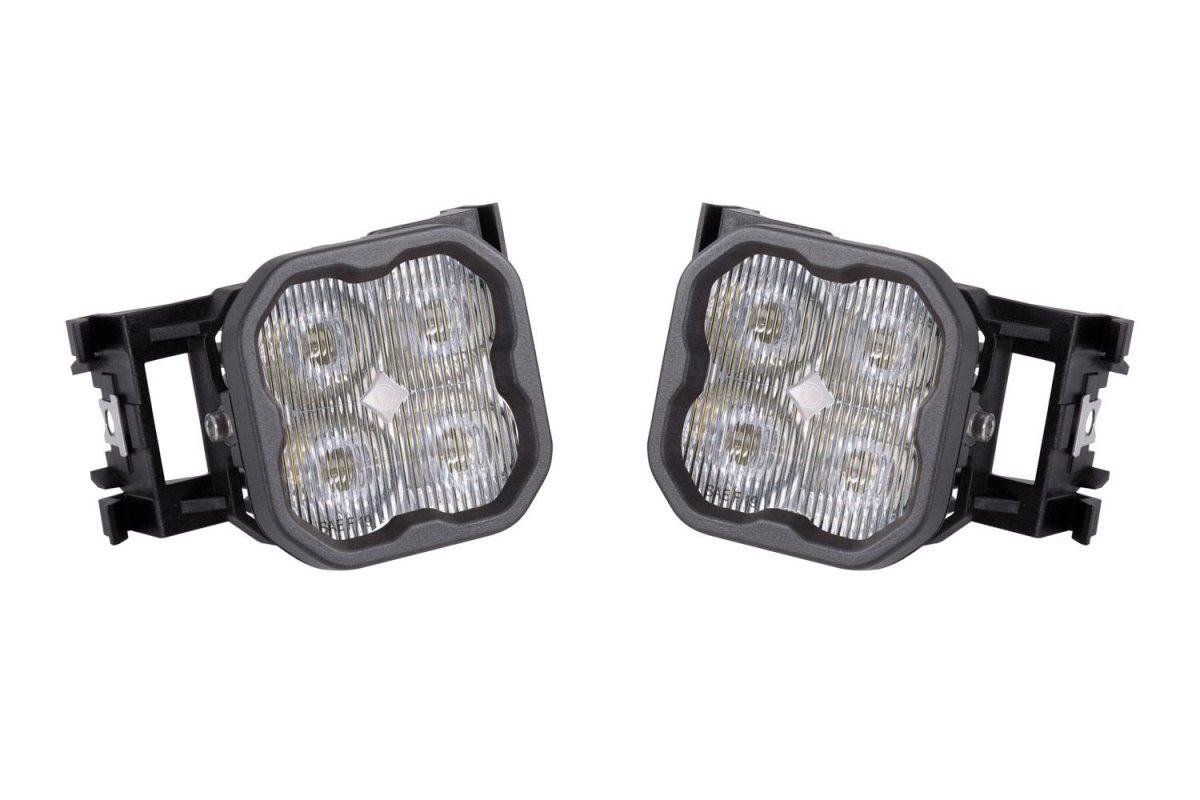

Light Type: Stage Series SS3 3″ LED Pods with custom-engineered Total Internal Reflection (TIR) optics.

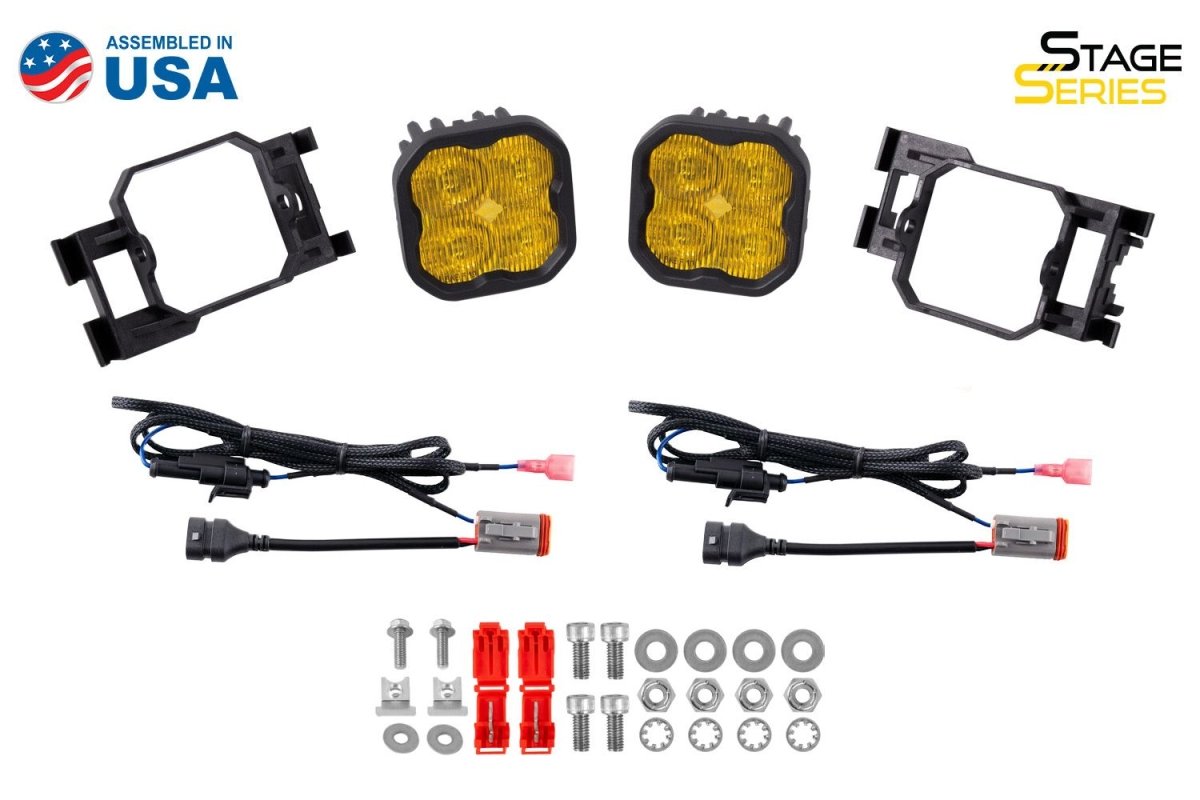

Installation: Bolt-on, plug-and-play direct replacement for Type X fog lamp assemblies; includes custom brackets, bezels, and harness adapters — no cutting or modification needed.

Material: Powder-coated aluminum housing, polycarbonate lens, passive pin-fin heatsink; Deutsch DT connector.

Technology: Advanced TIR optics for maximum efficiency and light focus; SAE J575 durability-tested; IP69K waterproof rated.

Type of Lighting: Fog lamp auxiliary lighting (SAE J583 compliant when installed and aimed per regulations).

Warranty: Limited Lifetime Warranty

Origin: Engineered and assembled in the USA with globally sourced materials.
