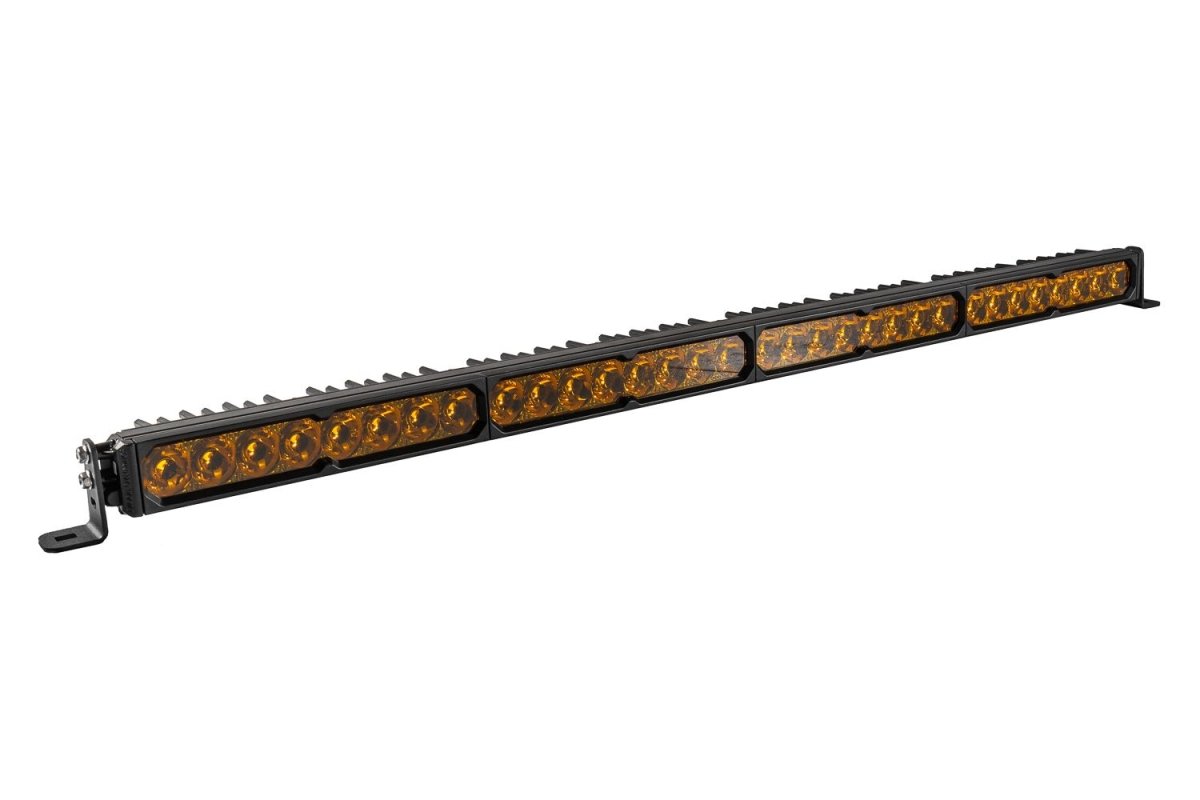

Diode Dynamics SS40 SAE/DOT Yellow LED Light Bar (one)

Regular price $ 799.95
Shipping calculated at checkout.
Choose Your Beam Pattern
Choose Your Power Level

Short Description

Cut through fog, rain, and snow with the Diode Dynamics SS40 Yellow LED Light Bar. Delivering up to 50,000 lumens of 3000K brilliance, it pairs advanced TIR optics with unmatched performance and rugged durability — built for those who drive through anything.

Pickup available at SHOP HQ

Usually ready in 5+ days

Delivery and Shipping

Domestic orders typically arrive within 3-7 business days, while international orders may take 7-14 business days. Please note that additional time may be required for items that are drop shipped or back-ordered.

Price Match Guarantee

We strive to offer competitive pricing and will price match qualifying competitors under certain conditions. Learn more here

Description

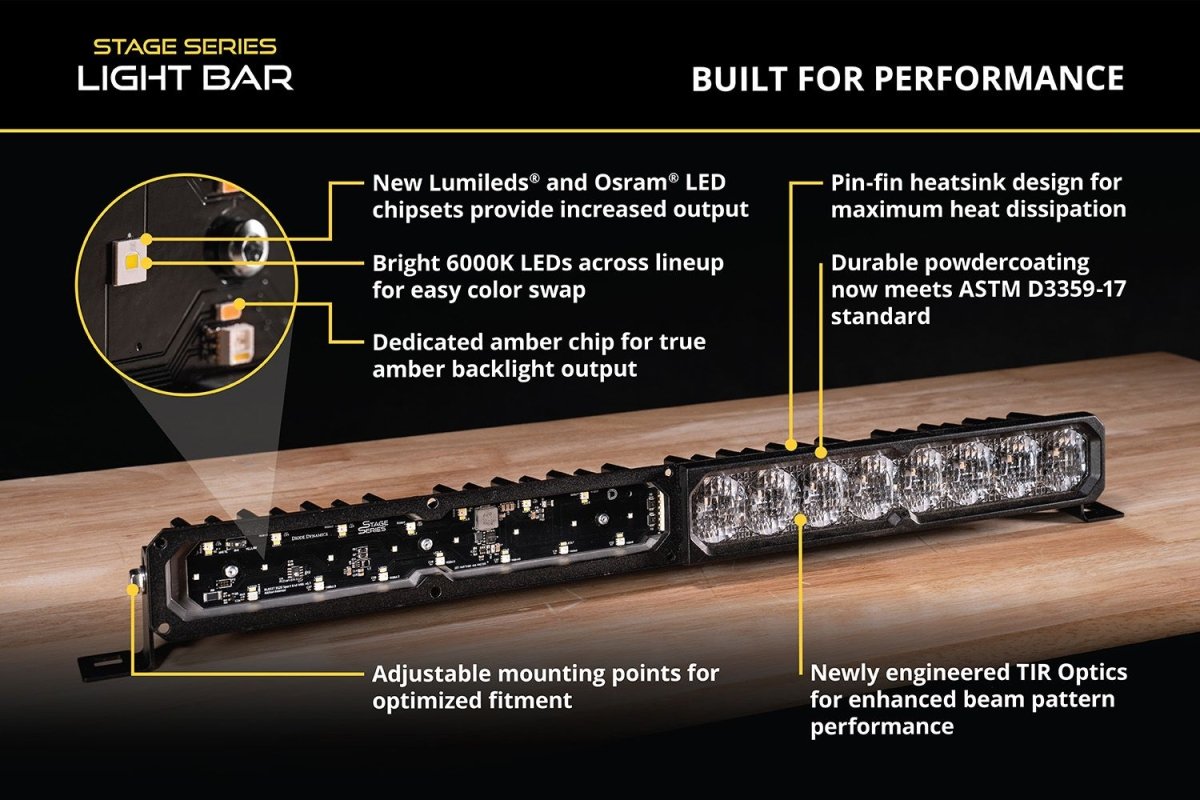

Conquer harsh conditions with the Diode Dynamics SS40 Yellow LED Light Bar, the ultimate off-road lighting solution for fog, rain, and snow. Designed, tested, and built in the USA, this powerhouse bar uses patented Total Internal Reflection (TIR) optics to maximize usable light and deliver unmatched clarity through poor weather and low-visibility terrain.

The 3000K yellow output cuts through glare and reflection, allowing your eyes to stay focused when driving through inclement conditions. Choose from Combo/Driving, Flood, SAE Driving, or Spot beam patterns to match your setup, whether you need wide, even coverage or long-range visibility.

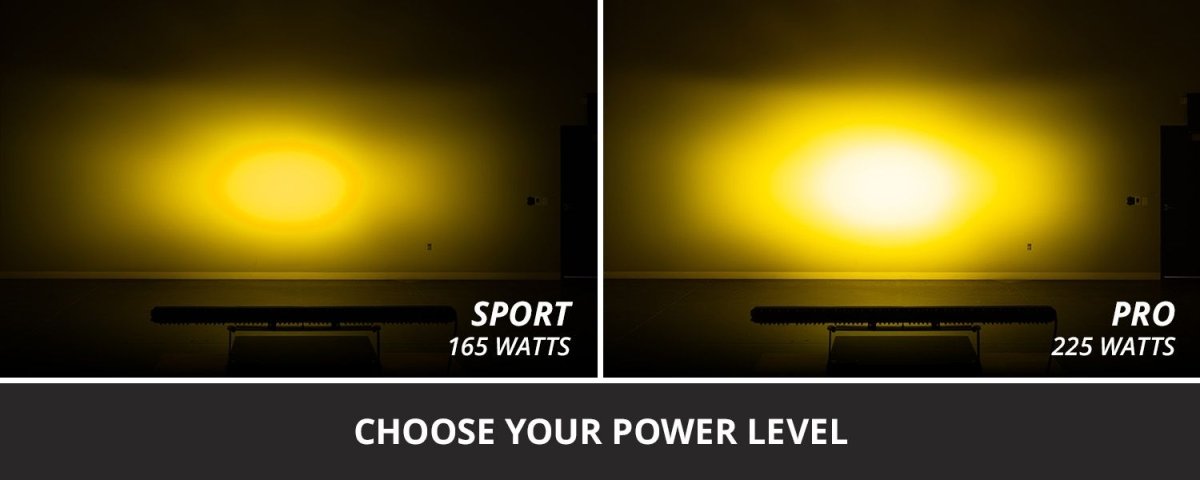

Available in both Sport (165W) and Pro (225W) power levels, the SS40 Yellow produces up to 50,176 lumens of intense, amber-tinted light — delivering serious performance for off-roaders and overlanders alike.

Each light bar is constructed from high-strength aluminum, impact-resistant polycarbonate lenses, and stainless steel brackets, giving it the rugged durability to survive mud, dust, and pressure washing with an IP69K waterproof rating.

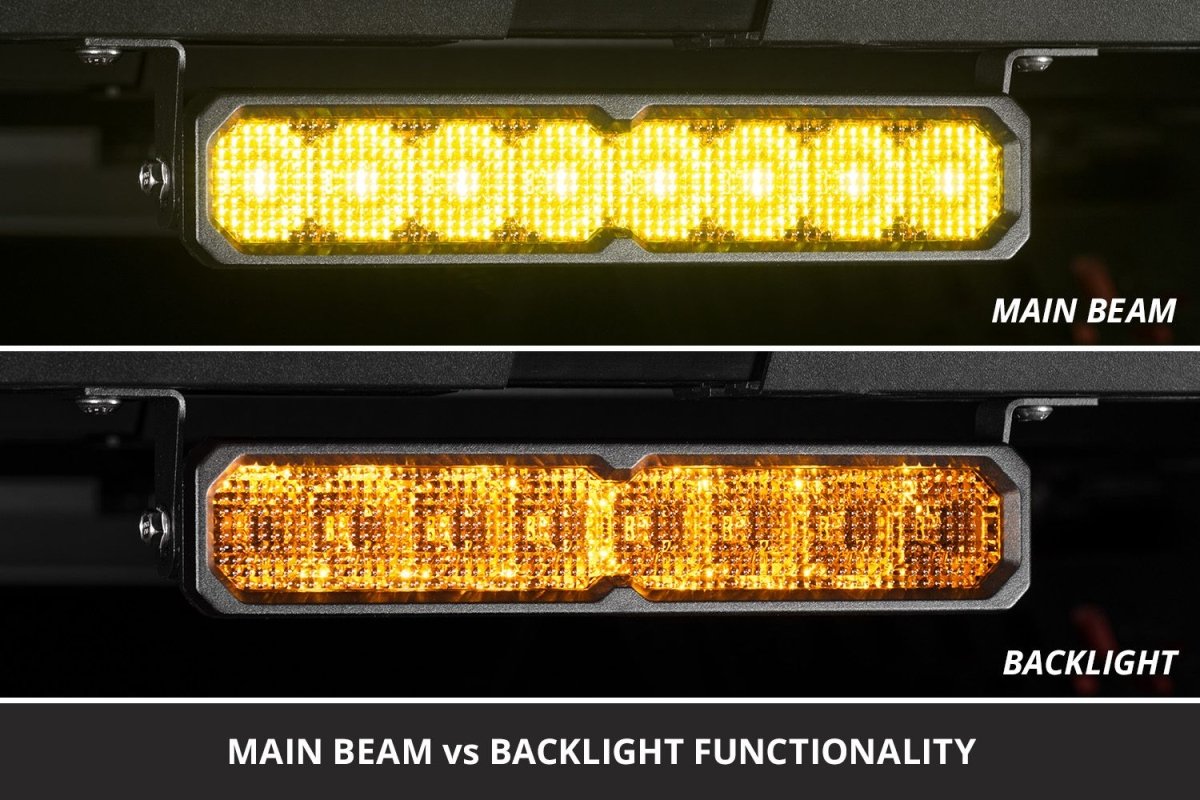

Every yellow model also features a fully illuminated amber backlight that fills the TIR optics for a bold, unmistakable look both day and night. Backed by a Limited Lifetime Warranty, this bar doesn’t just perform — it’s built to last.

Whether mounted to a trail rig, work truck, or overland build, the SS40 Yellow LED Light Bar delivers the visibility and reliability you need when the weather turns rough.

Specifications

Vehicle Fitment: Universal – ideal for trucks, SUVs, off-road builds

Light Output:
Sport – 14,752 lm / Pro – 50,176 lm

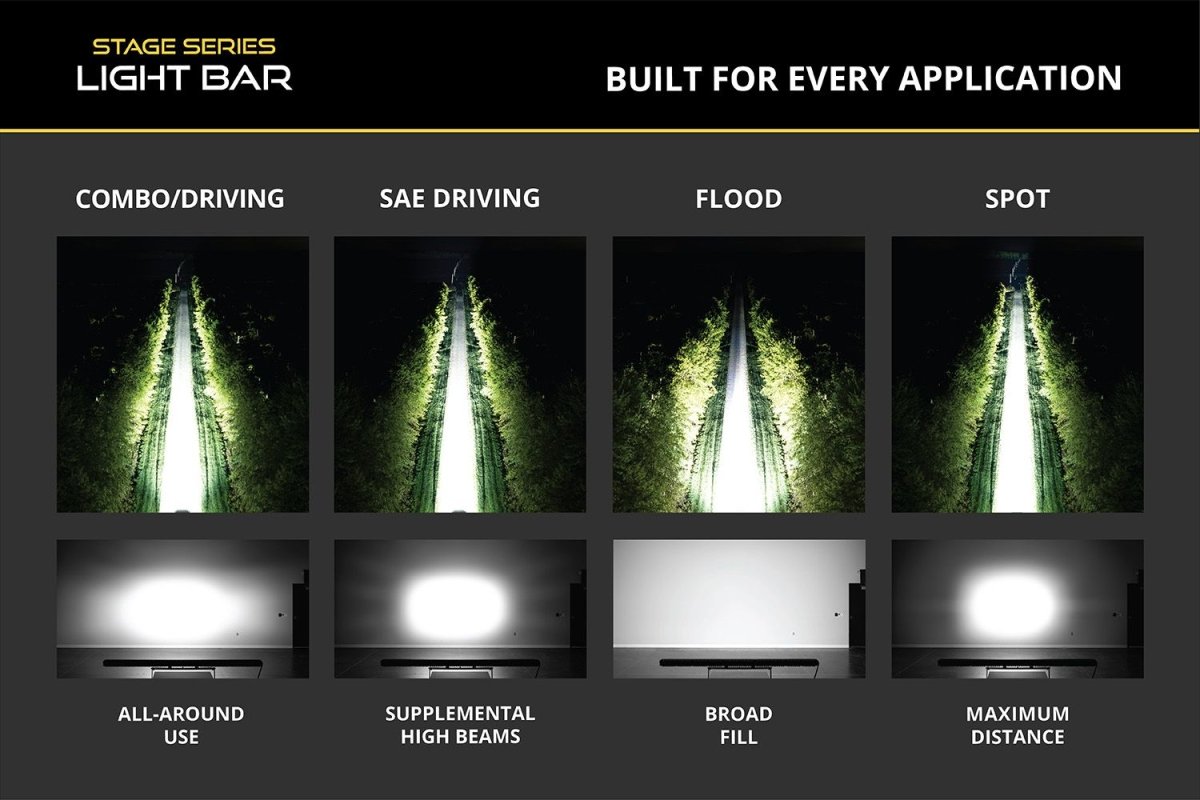

Beam Pattern Options: Combo/Driving, Flood, SAE Driving, Spot

Color Temperature: 3000K Yellow

Wattage: Sport – 165W / Pro – 225W

Operating Voltage: 9–30V

Current Draw (@12.8V): Sport – 12.90A / Pro – 17.58A

Operating Temperature: -40°F to 185°F (-40°C to 85°C)

LED Type: Osram Ostar Projection Compact / Lumileds Automotive-Grade

Lens Material: Polycarbonate

Housing Material: Aluminum with Copper PCB

Mounting Brackets: Stainless Steel

Cooling Method: Passive Heatsink

Intrusion Rating: IP69K Waterproof

Backlight Color: Amber

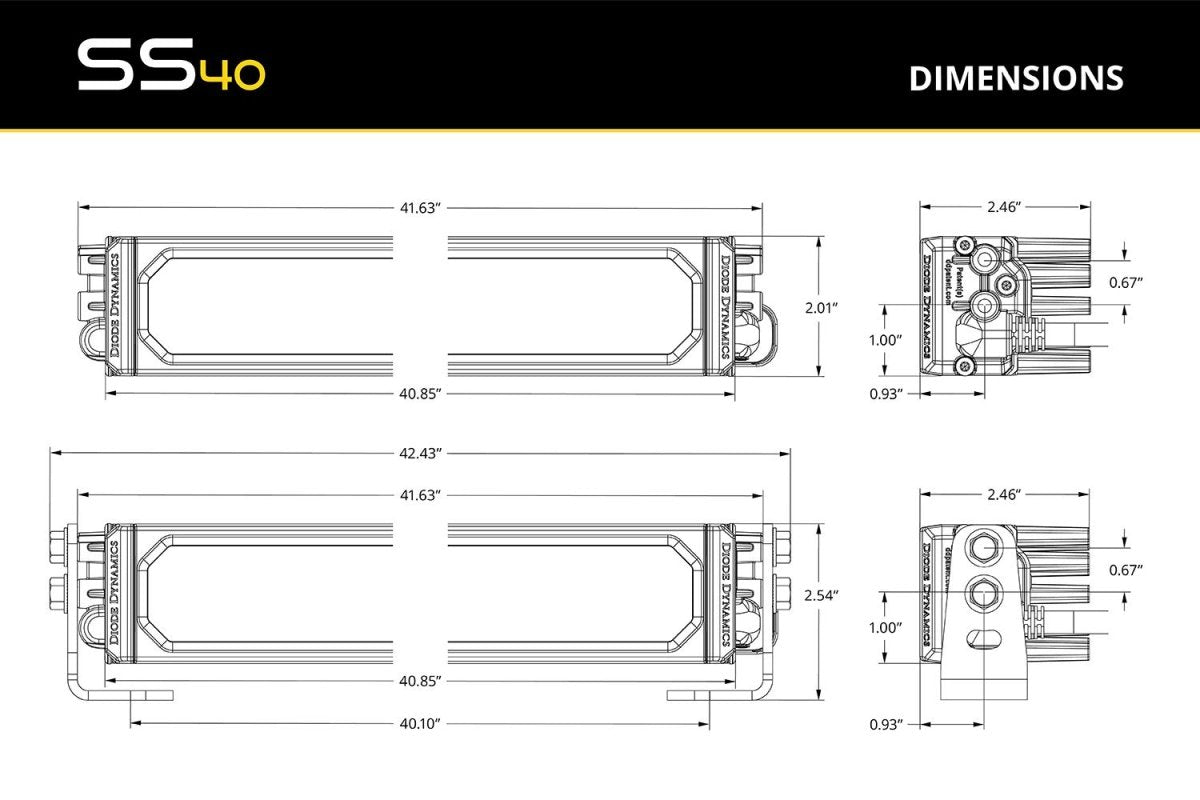

Dimensions (in): 2.01 x 41.63 x 2.46

Warranty: Limited Lifetime Warranty

Origin: Made in USA with Global Materials

Install Instructions
