Heavy Duty Dual Output 2-Pin Offroad Wiring Harness
Description
Description
Features

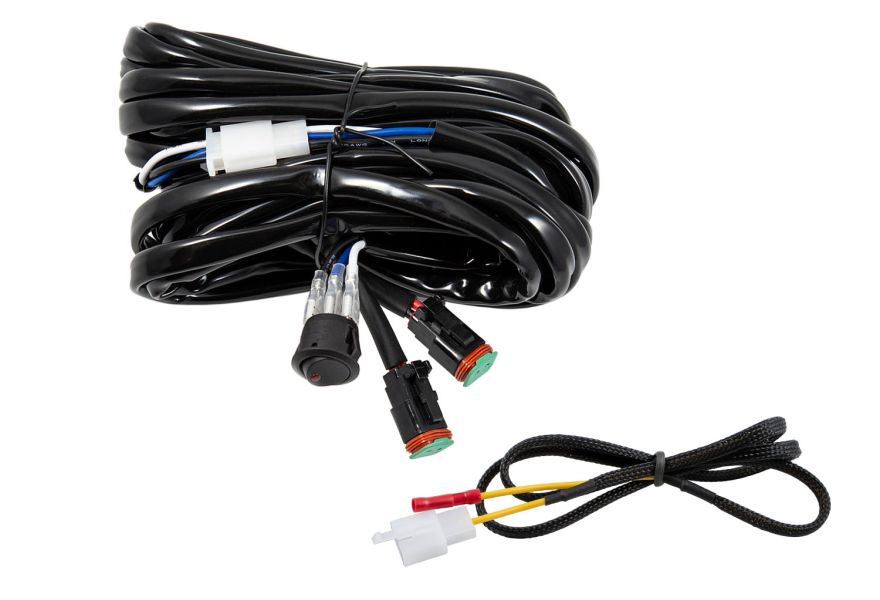

- Powers Diode Dynamics Stage Series light bars and LED pods.
- Connects directly to theĀ battery to power your light.
- High capacity 14AWG wiring.
- Deutsch DT output connector.
- Black wire sheathing to protect cables.
- 30A, waterproof fuse and 60 amp, 12V relayĀ to safeguard the electrical systems in your light.
Overview
Stage Series.Ā This harness isĀ intended to be used with ourĀ Stage Series light bars andĀ pods without backlight functionality. ThisĀ harness connects directly to your vehicle's battery andĀ allows you to power your offroad lighting. ItĀ features a two-way toggle switch, andĀ uses high capacity 14AWG wiring and Deutsch DT connectorsĀ for simple plug-and-play installation.
ThisĀ harness safely powers up toĀ 25A of auxiliary lamps. Please refer to the current draw data below.Ā Ā
- SS3 Sport: 1.1A
- SS3 Pro: 2.7A
- SS3 Max: 3A
- SS6 Light Bar: 1.9A
- SS12Ā Light Bar: 4.2A
- SS18Ā Light Bar: 5.7A
- SS30Ā Light Bar: 9.8A
- SS42Ā Light Bar: 16A
- SS50Ā Light Bar: 18.5A
Experience.Ā After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assembleĀ and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!
- One (1) wiring harness
- One (1) toggle switch
- One (1) OEM aux switch adapter
Fitment
NOTE:Ā If you are using this harness in combination with our Stage Series lightbars on a 24V system, you will need to replace the relay with a 24V relay.
ClickĀ HEREĀ to view the full dimensional diagram.
NOTE:Ā The gold spade on the toggle switch should be connected to the black (ground) wire.
Wire Colors (Switch):
- Relay: Blue
- Power: White
- Ground: Black
Installation Time:Ā 30-60 minutes
Tools Needed:Ā Basic Toolset
Installation Guide:Ā Click to download
